K1626 - Stainless Clamp Levers With Force Intensifier M8-M12

K1626 - Stainless Clamp Levers With Force Intensifier M8-M12

List view Grid view

Product description:
By using clamping levers with integrated clamping force intensifier, the clamping force can be increased by up to 75% compared to standard clamping levers.

Furthermore, this product can also be used by persons with limited hand strength (e.g. in rehabilitation) to achieve comparable clamping forces with less effort. Less effort is also needed to loosen the clamping lever.

The increase in clamping force is achieved by the integral needle roller thrust bearing, which generates very low surface friction on a rigid contact surface during clamping. The hardened thrust washers are designed for high clamping forces and the bearing with its high load rating guarantees a long service life.

The clamped component is permanently protected by the large, stationary contact surface. A washer is no longer required.

Due to the modular construction many special designs are available.

Material:
Handle die-cast zinc DIN EN 12844.
Steel parts stainless steel 1.4305.

Version:
Handle powder-coated.
Steel parts bright.
Axial needle bearing with hardened and ground thrust washer.

Note:
Standard colours are:
orange RAL 2004, ruby red RAL 3003, silver metallic.

Type of operation:
In the default position, the handle is engaged with the threaded insert through a toothed ring. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.

Application:
Machine, equipment and plant construction, rehabilitation sector.

Assembly:
The screw-in depth must be at least 2 x the thread diameter and the thread should be lubricated lightly during installation.Advantages:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

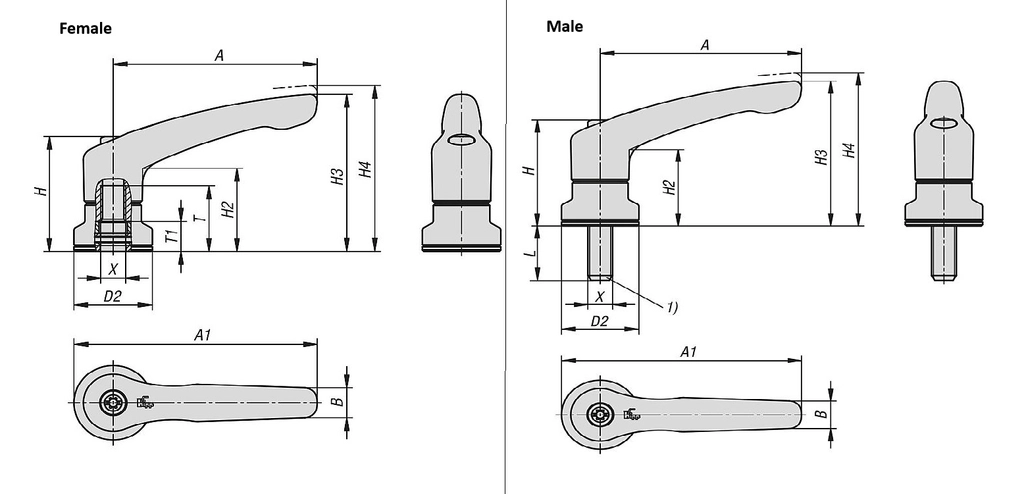

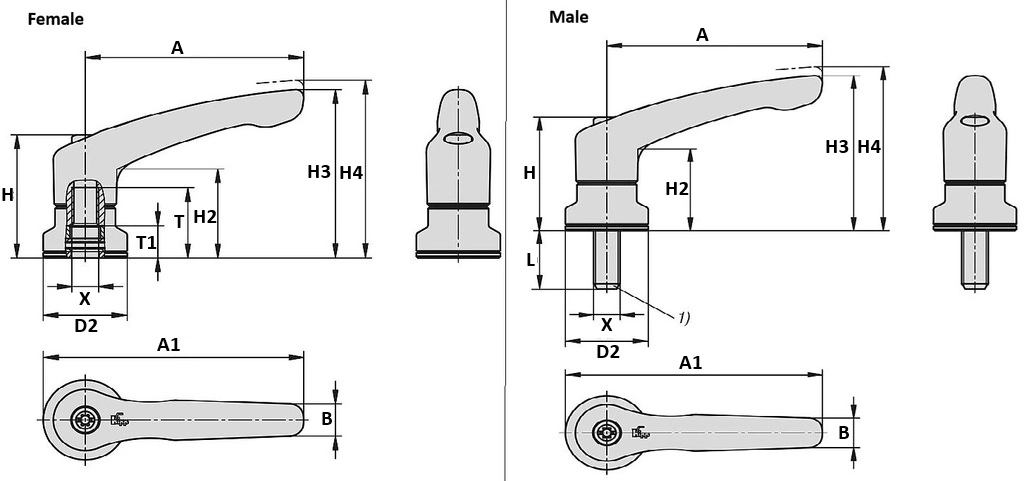

	A	A1	B	D2	H	H2	H3	H4	L	Surface finish body	T	T1	X	Price (Exc. Tax)	Stock
Filters
K1626.2081 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	--	satin finish	22	10	M8	£24.87	0
K1626.2081X10 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	10	satin finish	--	--	M8	£26.49	0
K1626.2081X20 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	20	satin finish	--	--	M8	£26.49	0
K1626.2081X30 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	30	satin finish	--	--	M8	£26.49	0
K1626.2081X40 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	40	satin finish	--	--	M8	£26.90	0
K1626.2082 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	--	plastic-coated	22	10	M8	£24.87	0
K1626.20827 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	--	plastic-coated	22	10	M8	£24.87	0
K1626.20827X10 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	10	plastic-coated	--	--	M8	£26.49	0
K1626.20827X20 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	20	plastic-coated	--	--	M8	£26.49	0
K1626.20827X30 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	30	plastic-coated	--	--	M8	£26.49	0
K1626.20827X40 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	40	plastic-coated	--	--	M8	£26.90	0
K1626.2082X10 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	10	plastic-coated	--	--	M8	£26.49	0
K1626.2082X20 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	20	plastic-coated	--	--	M8	£26.49	0
K1626.2082X30 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	30	plastic-coated	--	--	M8	£26.49	0
K1626.2082X40 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	40	plastic-coated	--	--	M8	£26.90	0
K1626.2083 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	--	plastic-coated	22	10	M8	£24.87	0
K1626.2083X10 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	10	plastic-coated	--	--	M8	£26.49	0
K1626.2083X20 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	20	plastic-coated	--	--	M8	£26.49	0
K1626.2083X30 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	30	plastic-coated	--	--	M8	£26.49	0
K1626.2083X40 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	40	plastic-coated	--	--	M8	£26.90	0
K1626.2086 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	--	high-gloss chromed	22	10	M8	£24.87	0
K1626.2086X10 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	10	high-gloss chromed	--	--	M8	£26.49	0
K1626.2086X20 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	20	high-gloss chromed	--	--	M8	£26.49	0
K1626.2086X30 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	30	high-gloss chromed	--	--	M8	£26.49	0
K1626.2086X40 View product	65	77,5	10	25	38,5	27,7	52,6	55,6	40	high-gloss chromed	--	--	M8	£26.90	0
K1626.3101 View product	80	95	11,2	30	47	33,9	64,4	68,6	--	satin finish	24	10	M10	£26.54	0
K1626.3101X15 View product	80	95	11,2	30	47	33,9	64,4	68,6	15	satin finish	--	--	M10	£27.61	0
K1626.3101X30 View product	80	95	11,2	30	47	33,9	64,4	68,6	30	satin finish	--	--	M10	£27.61	0
K1626.3101X40 View product	80	95	11,2	30	47	33,9	64,4	68,6	40	satin finish	--	--	M10	£28.11	0
K1626.3101X50 View product	80	95	11,2	30	47	33,9	64,4	68,6	50	satin finish	--	--	M10	£28.11	0
K1626.3102 View product	80	95	11,2	30	47	33,9	64,4	68,6	--	plastic-coated	24	10	M10	£26.54	0
K1626.31027 View product	80	95	11,2	30	47	33,9	64,4	68,6	--	plastic-coated	24	10	M10	£26.54	0
K1626.31027X15 View product	80	95	11,2	30	47	33,9	64,4	68,6	15	plastic-coated	--	--	M10	£27.61	0
K1626.31027X30 View product	80	95	11,2	30	47	33,9	64,4	68,6	30	plastic-coated	--	--	M10	£27.61	0
K1626.31027X40 View product	80	95	11,2	30	47	33,9	64,4	68,6	40	plastic-coated	--	--	M10	£28.11	0
K1626.31027X50 View product	80	95	11,2	30	47	33,9	64,4	68,6	50	plastic-coated	--	--	M10	£28.11	0
K1626.3102X15 View product	80	95	11,2	30	47	33,9	64,4	68,6	15	plastic-coated	--	--	M10	£27.61	0
K1626.3102X30 View product	80	95	11,2	30	47	33,9	64,4	68,6	30	plastic-coated	--	--	M10	£27.61	0
K1626.3102X40 View product	80	95	11,2	30	47	33,9	64,4	68,6	40	plastic-coated	--	--	M10	£28.11	0
K1626.3102X50 View product	80	95	11,2	30	47	33,9	64,4	68,6	50	plastic-coated	--	--	M10	£28.11	0
K1626.3103 View product	80	95	11,2	30	47	33,9	4,4	68,6	--	plastic-coated	24	10	M10	£26.54	0
K1626.3103X15 View product	80	95	11,2	30	47	33,9	64,4	68,6	15	plastic-coated	--	--	M10	£27.61	0
K1626.3103X30 View product	80	95	11,2	30	47	33,9	64,4	68,6	30	plastic-coated	--	--	M10	£27.61	0
K1626.3103X40 View product	80	95	11,2	30	47	33,9	64,4	68,6	40	plastic-coated	--	--	M10	£28.11	0
K1626.3103X50 View product	80	95	11,2	30	47	33,9	64,4	68,6	50	plastic-coated	--	--	M10	£28.11	0
K1626.3106 View product	80	95	11,2	30	47	33,9	64,4	68,6	--	high-gloss chromed	24	10	M10	£26.54	0
K1626.3106X15 View product	80	95	11,2	30	47	33,9	64,4	68,6	15	high-gloss chromed	--	--	M10	£27.61	0
K1626.3106X30 View product	80	95	11,2	30	47	33,9	64,4	68,6	30	high-gloss chromed	--	--	M10	£27.61	0
