Item Code: K1568.0328

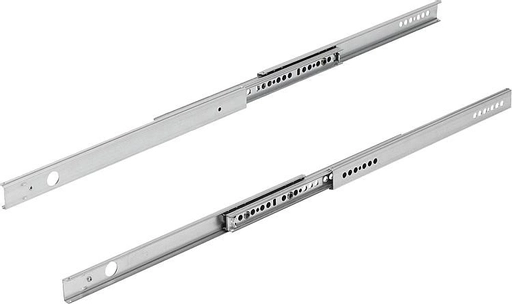

Telescopic Rail. Over Extension. 328mm Length (Pair).

Telescopic Rail. Over Extension. 328mm Length (Pair).

Item Code: K1568.0328

Telescopic Rail. Over Extension. 328mm Length (Pair).

Supplied In Pairs

Material:
Slides steel.
Ball cages steel and plastic.
Balls C-steel.

Version:
Slides electro zinc-plated.
Balls hardened.

Type:
Slot Mounting
Over Extension

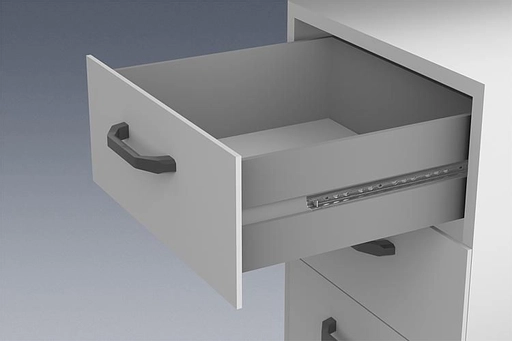

On slot-mounted telescopic slides with partial extension, the travel is shorter than the installed length. These are a low-cost solution for guiding drawers or similar items with little friction and high lateral stability. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.
Note:
The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.

Quick Links

Dispatch by 29/07/25

36
256
32
296
19,4
450 - 550
27
328
310
20
6-7
365

£19.96  ea. Excl VAT £23.95  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £16.37 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Supplied In Pairs

Material:
Slides steel.
Ball cages steel and plastic.
Balls C-steel.

Version:
Slides electro zinc-plated.
Balls hardened.

Type:
Slot Mounting
Over Extension

On slot-mounted telescopic slides with partial extension, the travel is shorter than the installed length. These are a low-cost solution for guiding drawers or similar items with little friction and high lateral stability. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.
Note:
The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.

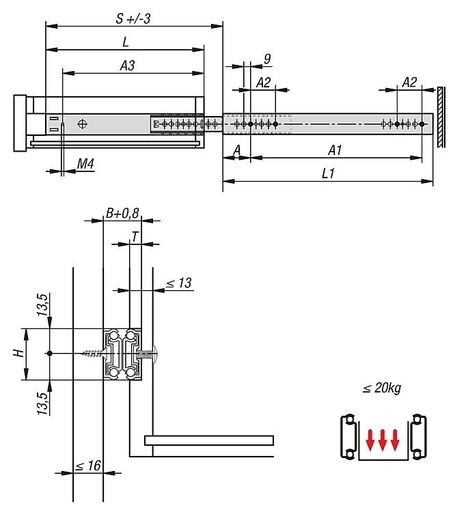

A36
A1256
A232
A3296
B19,4
Drawer depth from - to450 - 550
H27
L328
L1310
Loading per pair kg20
T = slot depth6-7
Travel S365
STP
