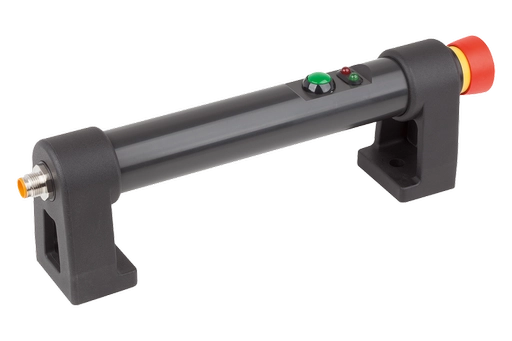

Electric Switch Tubular Handle. One Push Buttons. 180mm Hole Centres. With Emergency Stop.

Item Code: K1529.1180

Electric Switch Tubular Handle. One Push Buttons. 180mm Hole Centres. With Emergency Stop.

Item Code: K1529.1180

Electric Switch Tubular Handle. One Push Buttons. 180mm Hole Centres. With Emergency Stop.

Material:
Grip legs PA6 thermoplastic.
Grip tube PVC thermoplastic.

Version:
Grip legs black.
Grip tube black.

Note:
Form B:
Emergency stop (2 opener)
Push button (changer)
2 LED'S
Plug 12 pin

Technical data:
See downloads, Technical Information
Connection type: M12x1 12 pin plug.

Rating: IP54 when connector is screwed on.

Assembly:
From the front.

Accessory:
Plastic tubular handle with plastic grip legs K1528.
Connector bush M12x1, with screw lock K1498

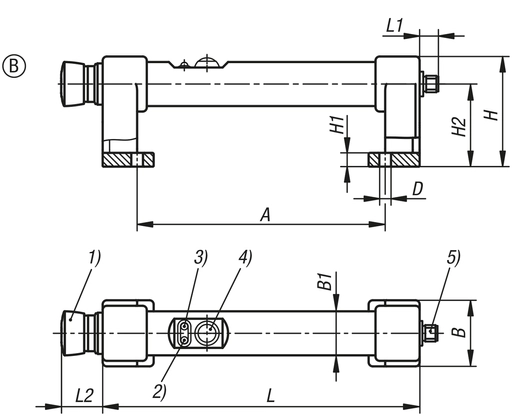

Drawing reference:
1) Emergency stop
2) Red LED
3) Green LED
4) Push button
5) Connector, M12x1

Quick Links

Dispatch by 25/06/26

A: 180

B: 48

B1: 32

D: 8.5

H: 80

H1: 10

H2: 60

L: 230

L1: 13

L2: 30

Load Capacity N: 1000

Style: B

£524.95 ea. Excl VAT £629.94 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

Product Dimensions

A	180
B	48
B1	32
D	8.5
H	80
H1	10
H2	60
L	230
L1	13
L2	30
Load Capacity N	1000
Style	B
