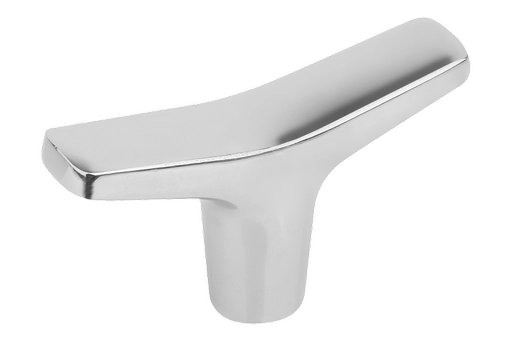

Hygienic 316 Stainless Steel T-Grip. M5 Thread. 55.2mm Grip Diameter.

Item Code: K1515.5505

Hygienic 316 Stainless Steel T-Grip. M5 Thread. 55.2mm Grip Diameter.

Item Code: K1515.5505

Hygienic 316 Stainless Steel T-Grip. M5 Thread. 55.2mm Grip Diameter.

Product description:
The complete surface is polished to a high gloss with a surface finish of Ra 0.8 µm. This means that dirt and impurities can hardly adhere. Easy cleaning is ensured.

The Hygienic USIT^® sealing and shim washers from Freudenberg Process are used to seal the fastening point. The shaft of the T-grip is specially designed to suit this seal. A cavity-free seal of the fastening point is created, which satisfies hygienic regulations.

Material:
Stainless steel 1.4404.

Version:
High-gloss polished.

Accessory:
Hygienic USIT® sealing and shim washer K1491 for the screw-on surface.

Quick Links

Dispatch by 07/05/26

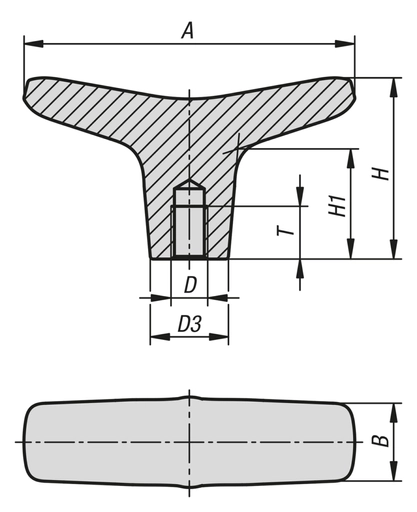

A: 55.2

B: 12.3

D: M5

D3: 11.65

H: 32.9

H1: 21

Male/Female: Female

T: 7.5

£9.51 ea. Excl VAT £11.41 ea. Inc VAT
