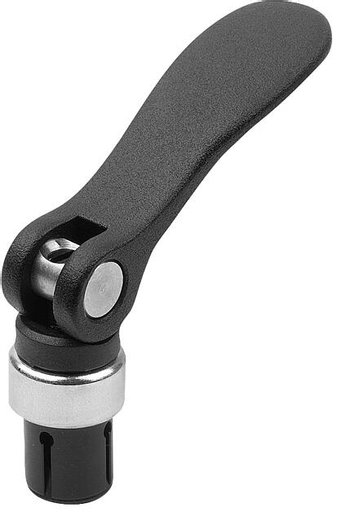

Cam Lever With Mandrel Collet. 52.3mm Handle Length. Black.

Item Code: K1500.1202

Cam Lever With Mandrel Collet. 52.3mm Handle Length. Black.

Item Code: K1500.1202

Cam Lever With Mandrel Collet. 52.3mm Handle Length. Black.

Material:
Handles, cast aluminium, EN AC-46200.
Thrust washer, fibreglass reinforced PA 66 GF 35 X plastic.
Hinge pin stainless steel.
Tie rod, washer, collet, disc spring, steel.

Version:
Grips fine structure powder-coated, black or red RAL 3003.
Thrust washer, black.
Washer blue-passivated.
Tie rod and collet black oxidised.

Note:
It is recommended that the cam lever is in a vertical position when the collet is positioned in the bore.
The function of the clamping system was tested in bores with tolerance H7. All values for retaining force are guide values and are given without safety factor.
The suitability for the respective application must be checked by the user.

Quick Links

Dispatch by 31/03/26

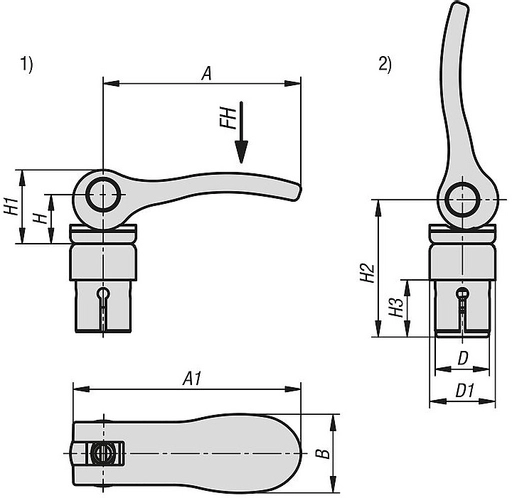

Hand Force FH (N): 100

A: 52.3

A1: 59.1

B: 18

Clamping force F (kN): 3

Colour

D: 12

D1: 15.4

H: 11.2

H1: 17

H2: 30

H3: 12.6

£21.34 ea. Excl VAT £25.61 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

Product Dimensions

Hand Force FH (N)	100
A	52.3
A1	59.1
B	18
Clamping force F (kN)	3
Colour	Black
D	12
D1	15.4
H	11.2
H1	17
H2	30
H3	12.6
