Item Code: K1491.121

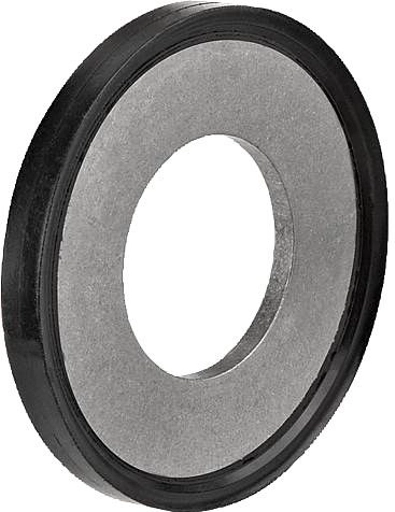

Hygienic Seal & Shim Washer. 70 EPDM 291 Black. 12.1mm Hole. 316 Stainless Steel.

Item Code: K1491.121

Hygienic Seal & Shim Washer. 70 EPDM 291 Black. 12.1mm Hole. 316 Stainless Steel.

Product description:
With its highly reliable sealing and design that is compliant with hygiene requirements, the Hygienic USIT® seal and shim washer is setting new standards for cleanliness in the process industry. Many manufacturers of machinery and systems for the food and pharmaceutical industries often use standard shim washers or O-rings for screw connections in or on the product chamber. These are not EHEDG-compliant, however, as contamination and biofilms in the form of bacteria colonies and corrosion can form under the screw head, preventing the design from achieving maximum hygiene standards.

The metallic shim washer with a fixed sealing ring made from 70 EPDM 291 (black) or 70 EPDM 253815 (white) provides a secure, cavity-free seal. The Hygienic USIT® seal and shim washer, made from the fluorinated premium compound Fluoroprene® XP 45, is suitable for applications involving particularly aggressive CIP/SIP cleaning temperatures, high steam sterilisation temperatures and process media containing grease. This material has an even larger operating temperature range and is resistant to polar and non-polar media as well as flavouring substances.

Approvals such as FDA, EU1935/2004 and USP Class VI (121°C), plus EHEDG certification, confirm that the Hygienic USIT® washer represents the ideal choice for hygienically demanding applications in the food, beverage and pharmaceutical industries.

Material:
Washer:
Stainless steel 1.4404.

Sealing ring:
70 EPDM 291 (black)

Attention:
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials.
The user must check that it is suitable for the application in question.

Accessory:
The Hygienic USIT® seal and shim washers can be used with all other products of the Hygienic USIT® range.

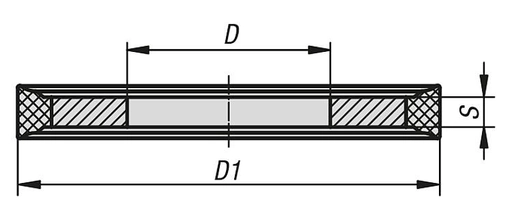

Drawing reference:
1) Cavity free sealing

Quick Links

Dispatch by 08/06/25

12,1
25,5
M12
1,5
M12

£9.32  ea. Excl VAT £11.18  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £7.64 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Product description:
With its highly reliable sealing and design that is compliant with hygiene requirements, the Hygienic USIT® seal and shim washer is setting new standards for cleanliness in the process industry. Many manufacturers of machinery and systems for the food and pharmaceutical industries often use standard shim washers or O-rings for screw connections in or on the product chamber. These are not EHEDG-compliant, however, as contamination and biofilms in the form of bacteria colonies and corrosion can form under the screw head, preventing the design from achieving maximum hygiene standards.

The metallic shim washer with a fixed sealing ring made from 70 EPDM 291 (black) or 70 EPDM 253815 (white) provides a secure, cavity-free seal. The Hygienic USIT® seal and shim washer, made from the fluorinated premium compound Fluoroprene® XP 45, is suitable for applications involving particularly aggressive CIP/SIP cleaning temperatures, high steam sterilisation temperatures and process media containing grease. This material has an even larger operating temperature range and is resistant to polar and non-polar media as well as flavouring substances.

Approvals such as FDA, EU1935/2004 and USP Class VI (121°C), plus EHEDG certification, confirm that the Hygienic USIT® washer represents the ideal choice for hygienically demanding applications in the food, beverage and pharmaceutical industries.

Material:
Washer:
Stainless steel 1.4404.

Sealing ring:
70 EPDM 291 (black)

Attention:
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials.
The user must check that it is suitable for the application in question.

Accessory:
The Hygienic USIT® seal and shim washers can be used with all other products of the Hygienic USIT® range.

Drawing reference:
1) Cavity free sealing
ColourBlack
D12,1
D125,5
GM12
S1,5
Suitable for hexagon screwsM12
MaterialStainless Steel
