Material:
Housing and actuation: 1.4404.
Earthing nut and ratchet screw: 1.4301.
Seal: blue silicon, FDA conform.
Version:
Bright.
Grip polished.
Note:
The hygienic stainless steel quarter turn lock prevents bacterial attack and fulfils the strict regulations of testing principles for foodstuff machinery and hygien.
The well concieved geometric form, the mirror polished stainless steel surface and the central circumferential seal reliably prevent dirt accumulation. Water, cleaning agents etc. can drain off fully and so prevent contamination.
Especially in processes where the resistance of the seal to cleaning and disinfection agents is very important, optimised control cabinets, terminal boxes and command panels are a must. Specifically designed after the principles of Hygienic DESIGN, the hygienic quarter turn lock HD fulfils the strict regulations of the foodstuff processing industry and passes therefore optimally in their professional hygienic applications.
The special seal is suitable for high pressure washing up to max. 100 bar and fulfils IP65/67. Furthermore, the seal is temperature stable up to 80 °C and the blue colour satisfies FDA regulations (reliably prevents a confusion with foodstuffs).
Please order required tongue version separately. Every tongue can be combined with every housing.

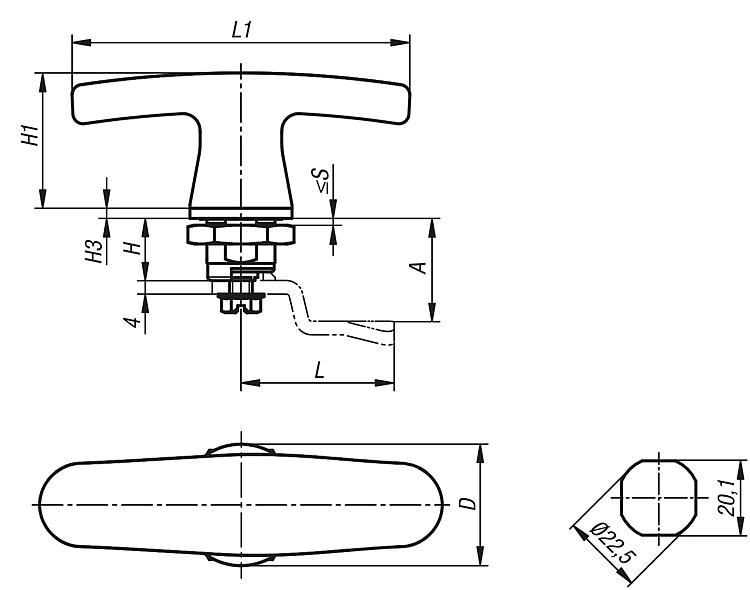

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.
Accessory:
Tongue for stainless steel quarter-turn lock K1340.
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm and Over
Choose Type
Hook
Latch
Vertical Latch
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Air Knife Only
Air Knife With Filter and Shim Set
Air Knife With Plumbing Kit Installed, Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Air Amplifier Only
Air Amplifier With Filter and Shim Set
Style
Air Amplifier Only
Air Amplifier With Filter
Item
Filter / Regulator
Air Amplifier Shim Set
Item
Filter / Regulator
Vortex Tube Generator
Vortex Tube Cold Silencer
Vortex Tube Hot Silencer
Style
Vortex Tube Only
Vortex Tube With Generator Kit, Muffler, Tubing And Filter
Clamp Type
Horizontal
Vertical
Latch
Vertical Latch
Clamp Type
Vertical
Press
Push-Pull
Clamp Type
Horizontal
Vertical
Hook
Latch
Vertical Latch
Push-Pull
Flip-Flop
Line drawing placeholder
Move drawing here
D | H | H1 | H3 | L1 | S max. | Price (Exc. Tax) | Stock | Qty | basket | |
---|---|---|---|---|---|---|---|---|---|---|
Filters |
||||||||||
K1452.1188 View product |
30 | 18 | 40 | 3 | 100 | 8 |
£88.54 |
0 |
|
Showing products per page
Dispatch by 29/10/25
Item Code: K1452.1188

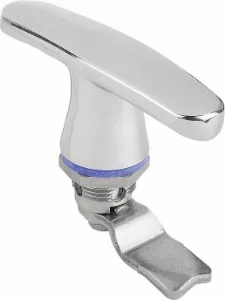

Quarter Turn Lock. T Grip. 18mm Lock Height. Hygienic Stainless Steel.
£88.54 Excl VAT £106.25 Inc VAT
Price breaks available
Text
Showing products per page
Quarter Turn Lock. T Grip. 18mm Lock Height. Hygienic Stainless Steel.
Dispatch by 29/10/25
Item Code: K1452.1188
£88.54 Excl VAT £106.25 Inc VAT
Price breaks available
Text
