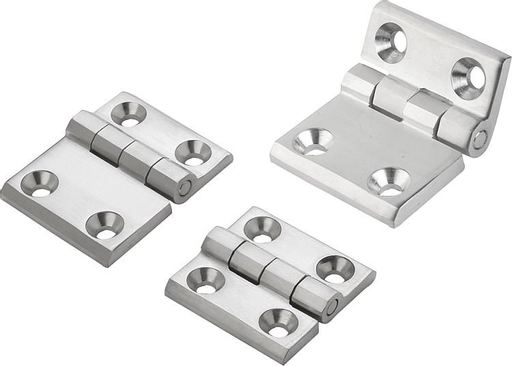

Hinge. Stainless Steel. 76x50mm.

Item Code: K1341.06382828

Hinge. Stainless Steel. 76x50mm.

Hinges-in-Stainless-Steel_1200x1200.jpg?

Hinges-in-Stainless-Steel-Drawing_1200x1200.jpg?

Item Code: K1341.06382828

Hinge. Stainless Steel. 76x50mm.

Material:
Stainless steel 1.4401.
Version:
Satin finished.
Note:
Hinge for extreme loads.
For right or left use.
Opening angle 270°.
Fastening with countersunk screws i.e. per DIN 7991.

Quick Links

Dispatch by 30/07/25

A: 76

A1: 28

A2: 28

A3: 38

A4: 38

B: 50

B2: 30

B3: 10

D1: 6,5

D2: 6

H: 6

H1: 11,5

Load capacity N: 5000

£27.94 ea. Excl VAT £33.53 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£22.91	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Stainless steel 1.4401.
Version:
Satin finished.
Note:
Hinge for extreme loads.
For right or left use.
Opening angle 270°.
Fastening with countersunk screws i.e. per DIN 7991.

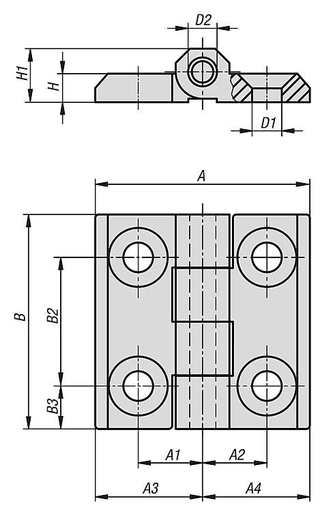

Product Dimensions

A	76
A1	28
A2	28
A3	38
A4	38
B	50
B2	30
B3	10
D1	6,5
D2	6
H	6
H1	11,5
Load capacity N	5000

Downloads

STP

Hinge. Stainless Steel. 76x50mm.

Hinge. Stainless Steel. 76x50mm.
