K1331 316 Stainless Steel Washers for Narrow Bolt

List view Grid view
K1331 316 Stainless Steel Washers for Narrow Bolt

Material:
Stainless steel 1.4404.

Version:
Polished.

Note:
Narrow shaft bolts are preferably secured against unintentional loss with a retaining element. This satisfies the EU standard 2006/42/EG. With the optionally available retaining washer the bolt is permanently combined with the component before screwing in. The washer is screwed over the threaded section and can then move freely on the narrow shaft. The shaft is not damaged by e.g. notching caused by a spring effect. By manual operation it is not possible that the washer screws itself out again. However, by careful manipulation the washer can be removed from the bolt without damaging either.
The surface of the hexagon head bolt is polished and, with regard to design optimised for the use in hygienic environments. The bolt head is convex on the top face and the collar has a conical formed top surface. Instead of troublesome embossing or indentations, the bolt head is smooth with a surface finish of less than Ra 0.8 µm. Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.

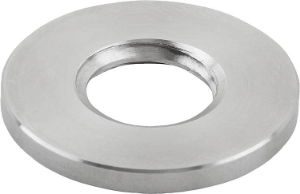

Hygienic Washer for Narrow Bolt. M3 Washer. 316 Stainless Steel.

K1331 316 Stainless Steel Washers for Narrow Bolt

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Style

Safety Lock

Stainless Steel

Line drawing placeholder

Move drawing here

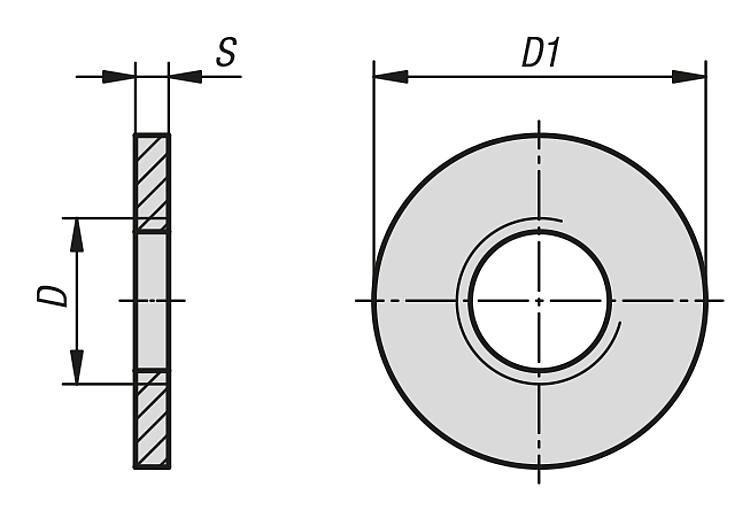

D D1 S Price (Exc. Tax) Stock Qty basket

Filters

K1331.03
View product
M3 6 1,5
£2.26
0
K1331.04
View product
M4 8 1,5
£2.36
0
K1331.05
View product
M5 10 1,5
£2.46
0
K1331.06
View product
M6 12 1,5
£2.50
0
K1331.08
View product
M8 16 2
£2.63
0
K1331.10
View product
M10 20 2
£2.75
0
