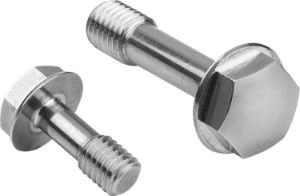

K1330 - 316 Stainless Steel Hexagon Bolt With Narrow Shaft M3-M10

K1330 - 316 Stainless Steel Hexagon Bolt With Narrow Shaft M3-M10

List view Grid view

Material:
Stainless steel 1.4404.

Version:
Polished.

Note:
Narrow shaft bolts are preferably secured against unintentional loss with a retaining element. This satisfies the EU standard 2006/42/EG. With the optionally available retaining washer the bolt is permanently combined with the component before screwing in. The washer is screwed over the threaded section and can then move freely on the narrow shaft. The shaft is not damaged by e.g. notching caused by a spring effect. By manual operation it is not possible that the washer screws itself out again. However, by careful manipulation the washer can be removed from the bolt without damaging either.
The surface of the hexagon head bolt is polished and, with regard to design optimised for the use in hygienic environments. The bolt head is convex on the top face and the collar has a conical formed top surface. Instead of troublesome embossing or indentations, the bolt head is smooth with a surface finish of less than Ra 0.8 µm. Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.

Accessory Suggestion:

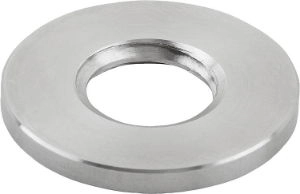

Locking washer K1331.

Hygienic Hex Head Bolt. Thin Shaft. M10x20mm. 316 Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

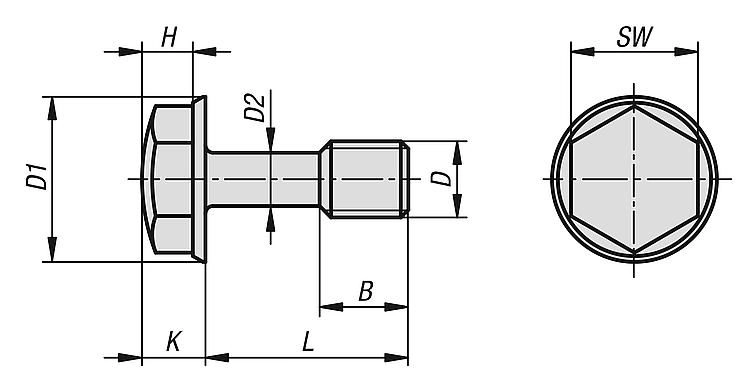

	B	D	D1	D2	G	H	K	L	R	SW	Price (Exc. Tax)	Stock
Filters
K1330.04X8 View product	5	M4	9,2	3,1	M4	3	4	8	16	7	£4.01	0
K1330.04X10 View product	5	M4	9,2	3,1	M4	3	4	10	16	7	£4.04	0
K1330.04X12 View product	5	M4	9,2	3,1	M4	3	4	12	16	7	£4.08	0
K1330.04X16 View product	5	M4	9,2	3,1	M4	3	4	16	16	7	£4.14	0
K1330.04X20 View product	14	M4	9,2	3,1	M4	3	4	20	16	7	£4.18	0
K1330.05X10 View product	6	M5	10,5	3,7	M5	3,7	4,7	10	16	8	£4.25	0
K1330.05X12 View product	6	M5	10,5	3,7	M5	3,7	4,7	12	16	8	£4.26	0
K1330.05X16 View product	6	M5	10,5	3,7	M5	3,7	4,7	16	16	8	£4.32	0
K1330.05X20 View product	6	M5	10,5	3,7	M5	3,7	4,7	20	16	8	£4.35	0
K1330.05X25 View product	16	M5	10,5	3,7	M5	3,7	4,7	25	16	8	£4.44	0
K1330.06X10 View product	7	M6	13	4,2	M6	4	5	10	16	10	£4.58	0
K1330.06X12 View product	7	M6	13	4,2	M6	4	5	12	16	10	£4.60	0
K1330.06X16 View product	7	M6	13	4,2	M6	4	5	16	16	10	£4.73	0
K1330.06X20 View product	7	M6	13	4,2	M6	4	5	20	16	10	£4.81	0
K1330.06X25 View product	18	M6	13	4,2	M6	4	5	25	16	10	£4.91	0
K1330.06X30 View product	18	M6	13	4,2	M6	4	5	30	16	10	£5.04	0
K1330.06X35 View product	18	M6	13	4,2	M6	4	5	35	16	10	£5.14	0
K1330.06X40 View product	18	M6	13	4,2	M6	4	5	40	16	10	£5.25	0
K1330.06X45 View product	18	M6	13	4,2	M6	4	5	45	16	10	£5.35	0
K1330.06X50 View product	18	M6	13	4,2	M6	4	5	50	16	10	£5.45	0
K1330.06X60 View product	18	M6	13	4,2	M6	4	5	60	16	10	£5.70	0
K1330.08X12 View product	9	M8	16,8	6	M8	5,5	6,5	12	16	13	£5.07	0
K1330.08X14 View product	9	M8	16,8	6	M8	5,5	6,5	14	16	13	£5.16	0
K1330.08X16 View product	9,5	M8	16,8	6	M8	5,5	6,5	16	16	13	£5.20	0
K1330.08X20 View product	9,5	M8	16,8	6	M8	5,5	6,5	20	16	13	£5.35	0
K1330.08X25 View product	9,5	M8	16,8	6	M8	5,5	6,5	25	16	13	£5.54	0
K1330.08X30 View product	22	M8	16,8	6	M8	5,5	6,5	30	16	13	£5.69	0
K1330.08X35 View product	22	M8	16,8	6	M8	5,5	6,5	35	16	13	£5.84	0
K1330.08X40 View product	22	M8	16,8	6	M8	5,5	6,5	40	16	13	£6.00	0
K1330.08X45 View product	22	M8	16,8	6	M8	5,5	6,5	45	16	13	£6.16	0
K1330.08X50 View product	22	M8	16,8	6	M8	5,5	6,5	50	16	13	£6.35	0
K1330.08X55 View product	9	M8	16,8	6	M8	5,5	6,5	55	16	13	£6.50	0
K1330.08X60 View product	22	M8	16,8	6	M8	5,5	6,5	60	16	13	£6.68	0
K1330.08X70 View product	22	M8	16,8	6	M8	5,5	6,5	70	16	13	£7.04	0
K1330.10X20 View product	12	M10	20,6	7,7	M10	7,3	8,3	20	16	16	£6.16	0
K1330.10X25 View product	12	M10	20,6	7,7	M10	7,3	8,3	25	16	16	£6.43	0
K1330.10X30 View product	12	M10	20,6	7,7	M10	7,3	8,3	30	16	16	£6.65	0
K1330.10X35 View product	12	M10	20,6	7,7	M10	7,3	8,3	35	16	16	£6.92	0
K1330.10X40 View product	26	M10	20,6	7,7	M10	7,3	8,3	40	16	16	£7.18	0
K1330.10X45 View product	26	M10	20,6	7,7	M10	7,3	8,3	45	16	16	£7.43	0
K1330.10X50 View product	26	M10	20,6	7,7	M10	7,3	8,3	50	16	16	£7.68	0
K1330.10X60 View product	26	M10	20,6	7,7	M10	7,3	8,3	60	16	16	£8.22	0
K1330.10X65 View product	12	M10	20,6	7,7	M10	7,3	8,3	65	16	16	£8.49	0
K1330.10X70 View product	26	M10	20,6	7,7	M10	7,3	8,3	70	16	16	£8.76	0
K1330.10X75 View product	12	M10	20,6	7,7	M10	7,3	8,3	75	16	16	£9.07	0
K1330.10X80 View product	26	M10	20,6	7,7	M10	7,3	8,3	80	16	16	£9.37	0
