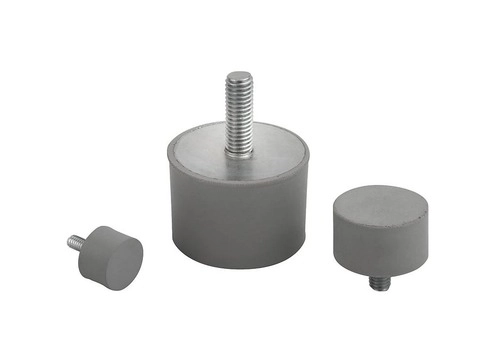

K1318 - 316 Stainless Steel Rubber Impact Buffer Medium Hardness In Grey Size M3-M10

K1318 - 316 Stainless Steel Rubber Impact Buffer Medium Hardness In Grey Size M3-M10

List view Grid view

Material:
Metal parts 1.4401 stainless steel.
Elastomer natural rubber, medium hardness Shore 55A, grey.
Version:
Stainless steel bright.
Note:
Rubber buffers are used, among other things for mounting aggregates and as elastic buffers to limit the travel of moving masses or as feet that are not firmly fixed in the floor or where the floor is sensitive i.e. office equipment.
Temperature range:
-30°C to +80°C.

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 8mm High. M4x10mm Thread. 316 Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

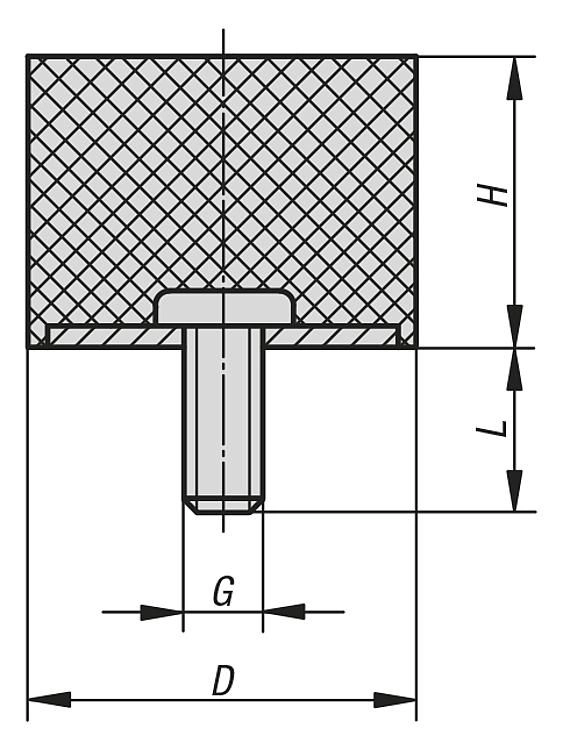

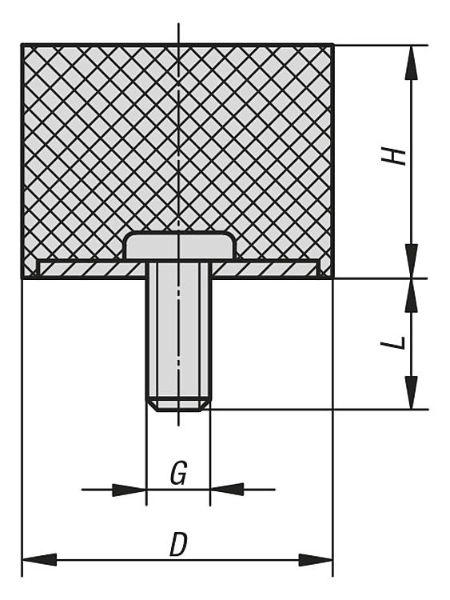

	D	G	H	L	Load , N	Shore grade	Spring stiffness N/mm	Price (Exc. Tax)	Stock
Filters
K1318.00800855 View product	8	M3	8	6	40	55A	40	£3.88	0
K1318.01001055 View product	10	M4	10	10	35	55A	35	£3.88	0
K1318.01001555 View product	10	M4	15	10	40	55A	26	£3.88	0
K1318.01500855 View product	15	M4	8	10	187	55A	187	£3.88	0
K1318.01501055 View product	15	M4	10	10	100	55A	100	£4.10	0
K1318.02000855 View product	20	M6	8	18	250	55A	250	£4.56	0
K1318.02001055 View product	20	M6	10	18	240	55A	240	£4.78	0
K1318.02001555 View product	20	M6	15	18	220	55A	110	£5.27	0
K1318.02002055 View product	20	M6	20	18	225	55A	75	£5.48	0
K1318.02500855 View product	25	M6	8	18	850	55+5	850	£4.78	0
K1318.02501055 View product	25	M6	10	18	400	55A	400	£4.78	0
K1318.02501555 View product	25	M6	15	18	420	55A	210	£4.98	0
K1318.02502055 View product	25	M6	20	18	420	55A	140	£5.39	0
K1318.02502555 View product	25	M6	25	18	350	55A	100	£6.16	0
K1318.03001555 View product	30	M8	15	23	540	55A	270	£7.29	0
K1318.03002055 View product	30	M8	20	23	714	55A	238	£7.57	0
K1318.03003055 View product	30	M8	30	23	508	55A	127	£9.28	3
K1318.03004055 View product	30	M8	40	23	528	55A	88	£10.79	0
K1318.04001555 View product	40	M8	15	23	1420	55A	710	£9.49	0
K1318.04002055 View product	40	M8	20	23	1095	55A	365	£10.74	0
K1318.04003055 View product	40	M8	30	23	820	55A	205	£11.41	0
K1318.05002055 View product	50	M10	20	28	1938	55A	646	£13.58	0
K1318.05003055 View product	50	M10	30	28	1416	55A	354	£17.25	0
K1318.05004055 View product	50	M10	40	28	1380	55A	230	£21.16	0
