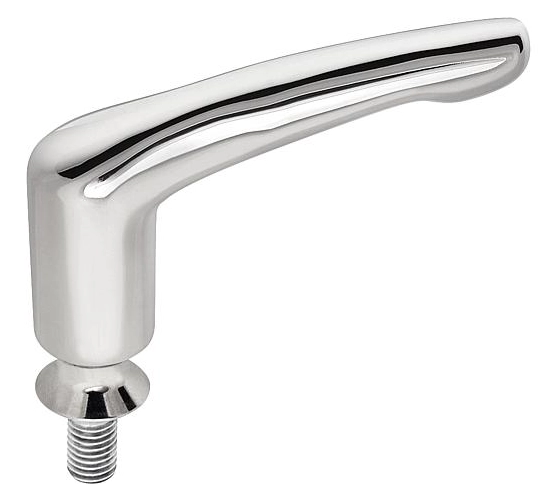

K1317 - Hygienic 316 Stainless Steel Clamp Levers Male Thread M6-M12

K1317 - Hygienic 316 Stainless Steel Clamp Levers Male Thread M6-M12

Material:
Metal parts stainless steel 1.4404.
Shaft seal 75 EPDM 295.

Version:
High-gloss polished.

Note:
Clamping lever designed for the hygienic sector. The completely closed grip part and the shaft seal prevent contamination of the lever internal workings. Additionally, the screw insert has a conical collar so that the fastening point can be hygienically sealed with the Hygienic USIT^® sealing and shim washer.
Due to the extremely high surface finish quality of much less than Ra 0.8 µm, hardly any dirt particles adhere to the surface. The highly polished surfaces enable easy cleaning.
At rest, the lever is freely rotatable. Unintended opening of the lever is excluded. The toothing is protected against high wear for mounting on vibrating elements.

Select your sizes

Line drawing placeholder

Move drawing here

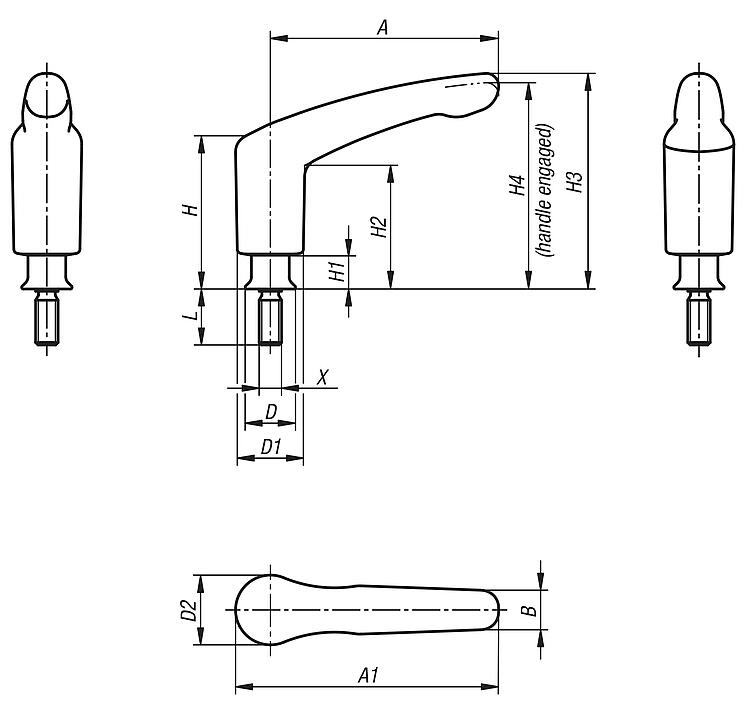

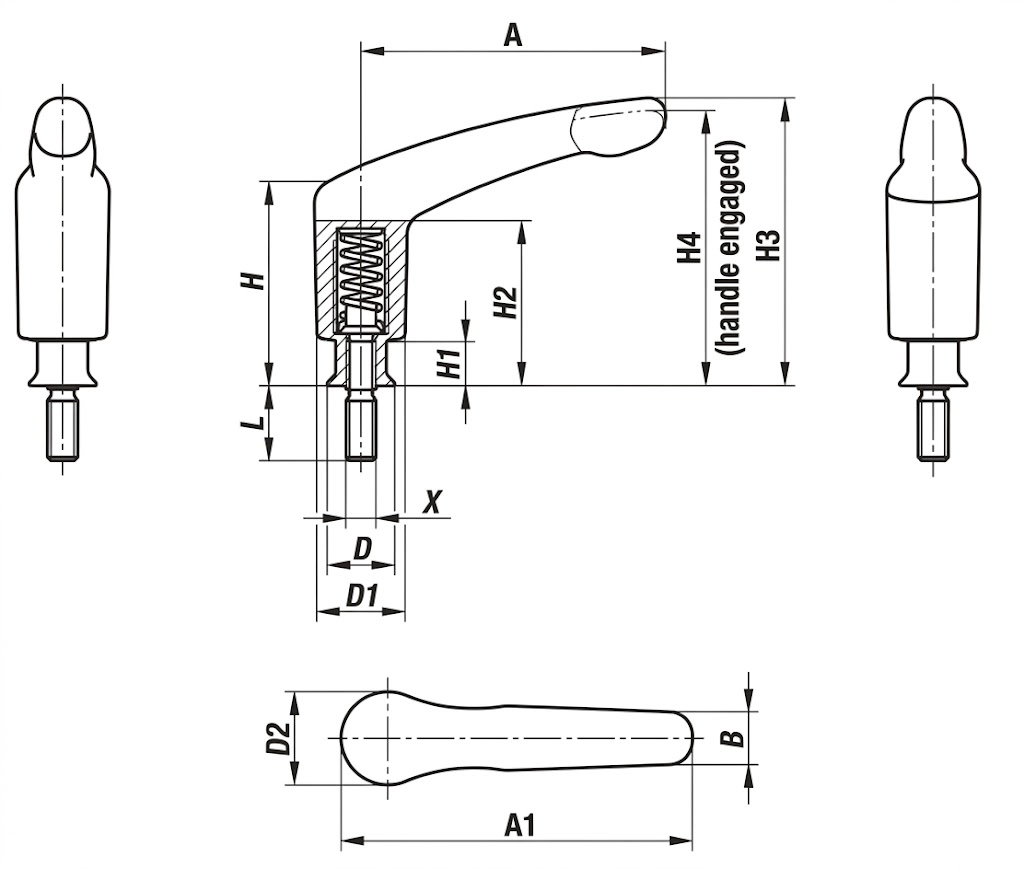

	No. Of Teeth	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	L	Male/Female	X	Price (Exc. Tax)	Stock
Filters
K1317.106X20 View product	16	47.4	58.2	11.8	14.2	21	21.7	36.7	8.8	27	50.6	47.6	20	Male	M6	£42.60	0
K1317.106X30 View product	16	47.4	58.2	11.8	14.2	21	21.7	36.7	8.8	27	50.6	47.6	30	Male	M6	£43.17	0
K1317.106X40 View product	16	47.4	58.2	11.8	14.2	21	21.7	36.7	8.8	27	50.6	47.6	40	Male	M6	£44.01	0
K1317.106X50 View product	16	47.4	58.2	11.8	14.2	21	21.7	36.7	8.8	27	50.6	47.6	50	Male	M6	£44.86	0
K1317.206X20 View product	16	66.5	77.5	13	14.2	21	22.1	45.7	10.7	36.8	64.1	61.1	20	Male	M6	£44.16	0
K1317.206X30 View product	16	66.5	77.5	13	14.2	21	22.1	45.7	10.7	36.8	64.1	61.1	30	Male	M6	£44.77	0
K1317.206X40 View product	16	66.5	77.5	13	14.2	21	22.1	45.7	10.7	36.8	64.1	61.1	40	Male	M6	£45.60	0
K1317.206X50 View product	16	66.5	77.5	13	14.2	21	22.1	45.7	10.7	36.8	64.1	61.1	50	Male	M6	£46.46	0
K1317.208X20 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	20	Male	M8	£45.08	0
K1317.208X30 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	30	Male	M8	£45.84	0
K1317.208X40 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	40	Male	M8	£46.66	0
K1317.208X50 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	50	Male	M8	£47.66	0
K1317.208X60 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	60	Male	M8	£48.69	0
K1317.310X20 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	20	Male	M10	£50.81	0
K1317.310X25 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	25	Male	M10	£51.47	0
K1317.310X30 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	30	Male	M10	£52.11	0
K1317.310X35 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	35	Male	M10	£52.79	0
K1317.310X40 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	40	Male	M10	£53.45	0
K1317.310X50 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	50	Male	M10	£54.76	0
K1317.310X60 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	60	Male	M10	£56.12	0
K1317.312X25 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	25	Male	M12	£52.79	0
K1317.312X30 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	30	Male	M12	£53.81	0
K1317.312X35 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	35	Male	M12	£54.83	0
K1317.312X40 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	40	Male	M12	£55.84	0
K1317.312X50 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	50	Male	M12	£57.88	0
K1317.312X60 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	60	Male	M12	£59.92	0
K1317.308X16 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	16	Male	M8	£49.24	0
K1317.308X20 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	20	Male	M8	£49.76	0
K1317.308X25 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	25	Male	M8	£50.32	0
K1317.308X30 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	30	Male	M8	£50.86	0
K1317.308X35 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	35	Male	M8	£51.44	0
K1317.308X40 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	40	Male	M8	£51.99	0
K1317.308X50 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	50	Male	M8	£53.13	0
K1317.308X60 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	60	Male	M8	£54.29	0
