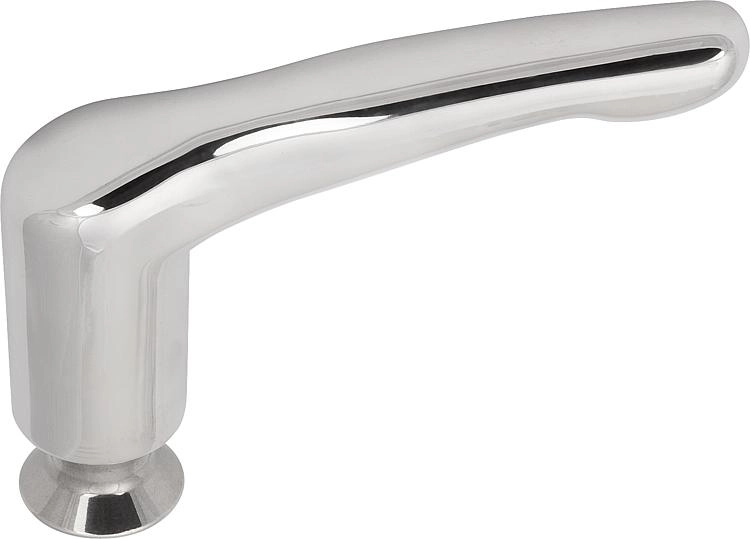

K1316 - Hygienic 316 Stainless Steel Clamp Levers Female Thread M6-M12

K1316 - Hygienic 316 Stainless Steel Clamp Levers Female Thread M6-M12

Material:
Metal parts stainless steel 1.4404.
Shaft seal 75 EPDM 295.

Version:
High-gloss polished.

Note:
Clamping lever designed for the hygienic sector. The completely closed grip part and the shaft seal prevent contamination of the lever internal workings. Additionally, the screw insert has a conical collar so that the fastening point can be hygienically sealed with the Hygienic USIT^® sealing and shim washer.
Due to the extremely high surface finish quality of much less than Ra 0.8 µm, hardly any dirt particles adhere to the surface. The highly polished surfaces enable easy cleaning.
At rest, the lever is freely rotatable. Unintended opening of the lever is excluded. The toothing is protected against high wear for mounting on vibrating elements.

Select your sizes

Line drawing placeholder

Move drawing here

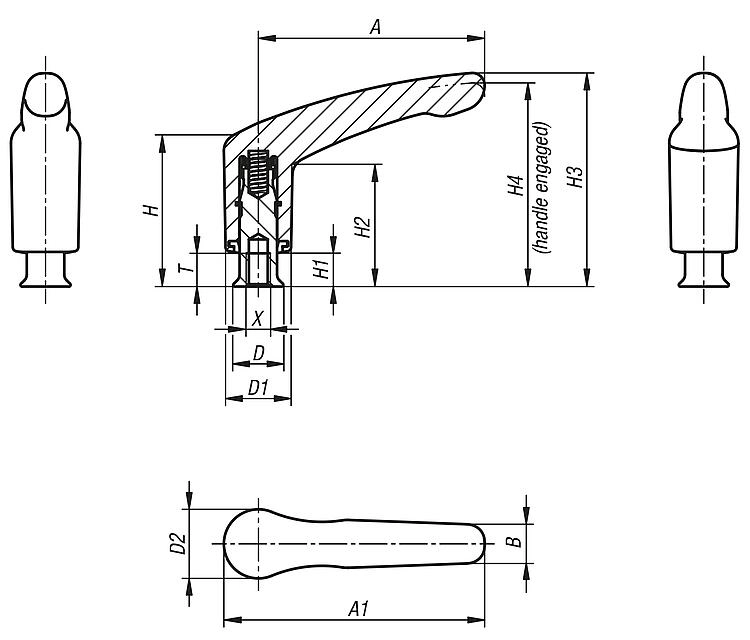

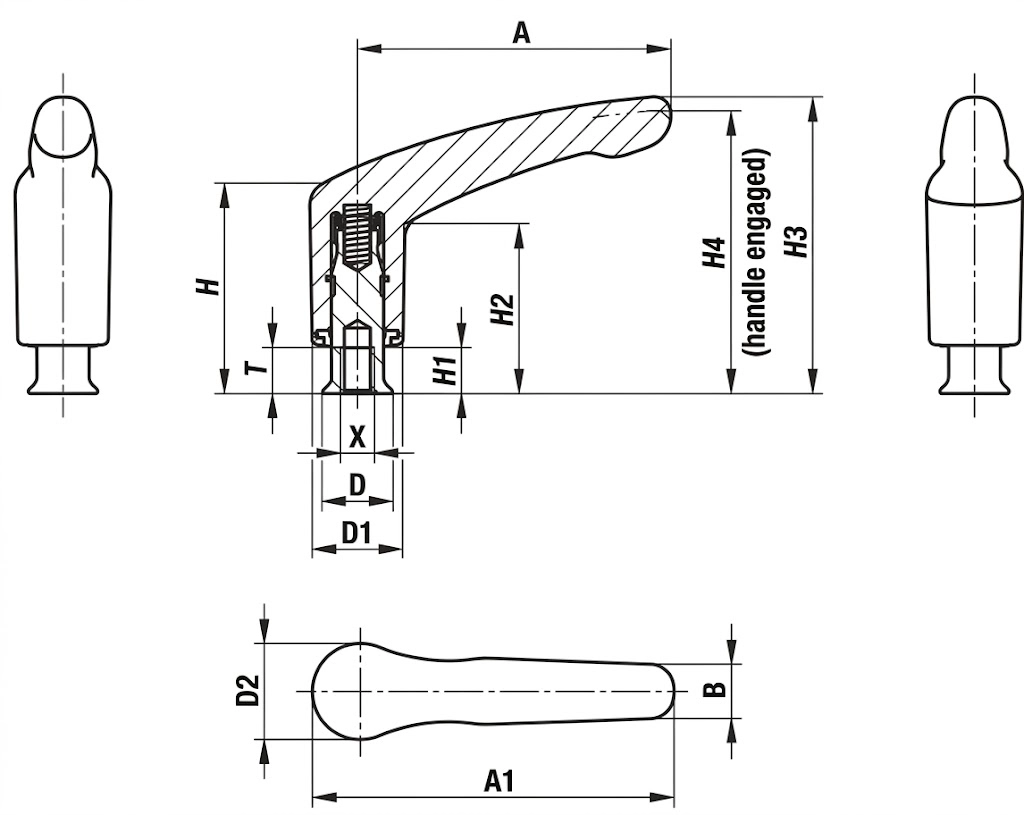

	No. Of Teeth	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K1316.106 View product	16	47.4	58.2	11.8	14.2	21	21.7	36.7	8.8	27	50.6	47.6	Female	10	M6	£41.05	0
K1316.206 View product	16	66.5	77.5	13	14.2	21	22.1	45.7	10.7	36.8	64.1	61.1	Female	10	M6	£42.49	0
K1316.208 View product	16	66.5	77.5	13	18	21	22.1	45.7	10.7	36.8	64.1	61.1	Female	14	M8	£43.23	0
K1316.310 View product	20	81.5	94	14.2	22.3	23.6	24.9	54.7	12.1	44	77	73.5	Female	15	M10	£49.72	0
K1316.312 View product	20	81.5	94	14.2	26.6	23.6	24.9	54.7	12.1	44	77	73.5	Female	19	M12	£50.46	0
K1316.308 View product	20	81.5	94	14.2	18	23.6	24.9	54.7	12.1	44	77	73.5	Female	12	M8	£48.97	0
