Back to K1284 - Cam-Action Indexing Plungers With Stop

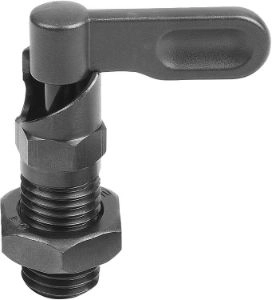

K1284 Cam-Action Indexing Plungers With Stop Right Hand Open

K1284 Cam-Action Indexing Plungers With Stop Right Hand Open

List view Grid view

Material:
Steel grade 5.8.
Version:
Black oxidised.
Pin hardened and ground.
Note:
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.
A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted.
Selecting which side the stop is on defines the rotation direction of the plunger.

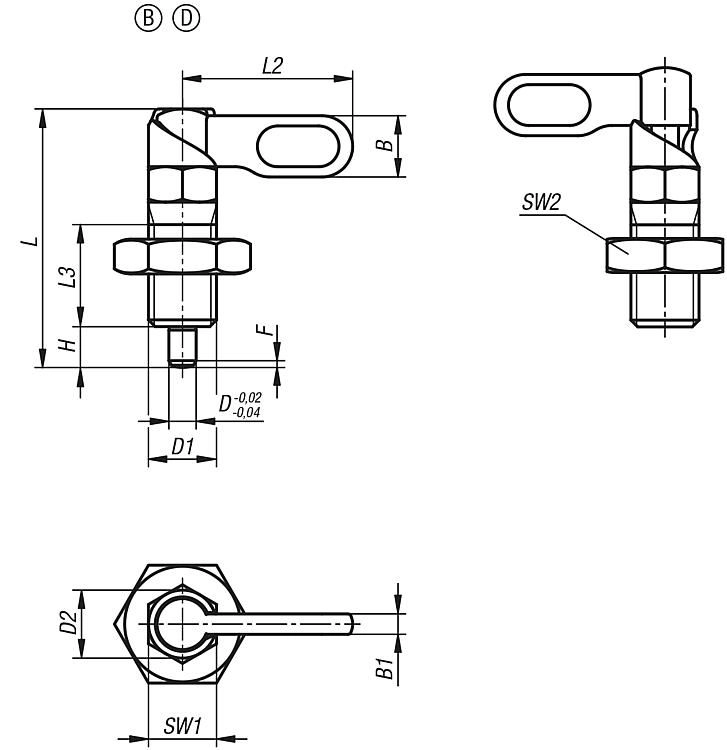

Drawing reference:
Form A: grip uncoated without nut
Form C: grip powder-coated without nut
Form B: grip uncoated with nut
Form D: grip powder-coated with nut

Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050410 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 4mm Pin Diameter. Steel.	4	38	25	15	M10	9	6	3	10	with locknut	10	17	1	8	14	£15.64 £18.77		0 16161 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050510 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 5mm Pin Diameter. Steel.	5	38	25	15	M10	9	6	3	10	with locknut	10	17	1,3	8	14	£15.64 £18.77		0 16202 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050512 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 5mm Pin Diameter. Steel.	5	47,8	30	19	M12	10,8	8	3,6	12	with locknut	12	19	1,3	8	15	£15.84 £19.01		0 16247 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050610 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 6mm Pin Diameter. Steel.	6	38	25	15	M10	9	6	3	10	with locknut	10	17	1,8	8	14	£15.64 £18.77		0 16283 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050612 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 6mm Pin Diameter. Steel.	6	47,8	30	19	M12	10,8	8	3,6	12	with locknut	12	19	1,8	8	15	£15.84 £19.01		0 16316 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050616 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 6mm Pin Diameter. Steel.	6	60,4	40	26	M16	14,4	10	4,8	16	with locknut	16	24	1,8	15	35	£19.02 £22.82		0 16347 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050812 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 8mm Pin Diameter. Steel.	8	47,8	30	19	M12	10,8	8	3,6	12	with locknut	12	19	2,3	8	15	£15.84 £19.01		0 16378 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2050816 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 8mm Pin Diameter. Steel.	8	60,4	40	26	M16	14,4	10	4,8	16	with locknut	16	24	2,3	15	35	£19.02 £22.82		0 16404 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.20508201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Steel.	8	70	50	30	M20x1,5	18	12	6	20	with locknut	20	30	2,3	20	60	£21.94 £26.33		0 15275 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.2051016 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 10mm Pin Diameter. Steel.	10	60,4	40	26	M16	14,4	10	4,8	16	with locknut	16	24	2,8	15	35	£19.02 £22.82		0 15320 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.20510201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Steel.	10	70	50	30	M20x1,5	18	12	6	20	with locknut	20	30	2,8	20	60	£21.94 £26.33		0 15351 Dispatched 12/06/25

	D	L	L1	L3	D1	B	H	B1	D2	Locknut	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty
FILTERS
K1284.20512201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 12mm Pin Diameter. Steel.	12	70	50	30	M20x1,5	18	12	6	20	with locknut	20	30	3	20	60	£21.94 £26.33		0 15402 Dispatched 12/06/25
