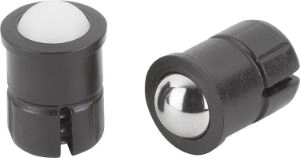

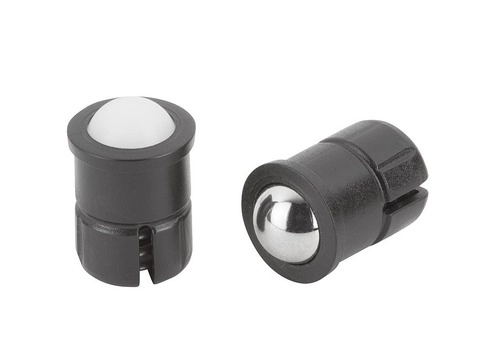

Material:
Sleeve thermoplastic.
Spring stainless steel.
Ball stainless steel or POM.
Version:
Sleeve black.
Ball hardened, bright.
Note:
The self-locking function of the spring plunger enables simple assembly and secure overhead installation.
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch

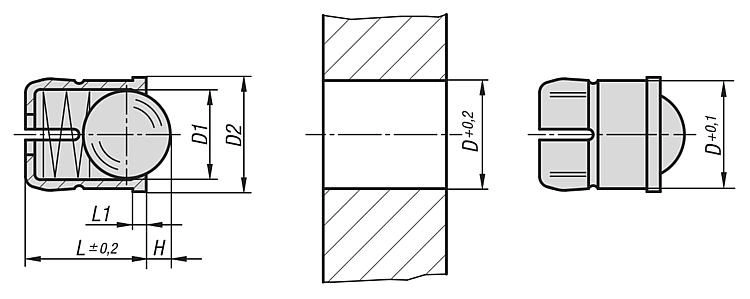

D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.04 View productSpring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic & Stainless Steel. |
4 | 3 | 4,6 | 0,8 | 5 | 1 | 3 | 6,5 | £0.75 £0.90 |
1008 50+ in stock |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "4", "3", "4,6", "0,8", "5", "1", "6,5", "3" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23674, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "name": "Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic & Stainless Steel.", "sku": "K1171.04", "mpn": null, "barcode": null, "was_price": "\u00a30.75", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 1008, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "af5827e440be36eebf1f898a64007261.jpg;original;2025-03-14 11:16:31", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.750", "ex_vat": "\u00a30.75", "ex_vat_was_price_number": "0.625", "ex_vat_was_price": "\u00a30.63", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.750", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "price_range_min": "\u00a30.75", "price_range_max": "\u00a30.75", "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23680, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "4", "value_id": 722, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "3", "value_id": 680, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "4,6", "value_id": 686, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "0,8", "value_id": 9796, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": "63.0000", "name": "3", "value_id": 680, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23680, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-stainless-steel", "sku": "K1171.04", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": "9999999.9999", "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 1008, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.75", "was_price_number": "0.750", "price": "\u00a30.75", "price_number": "0.750", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.75", "ex_vat_number": "0.750", "ex_vat_was_price": "\u00a30.63", "ex_vat_was_price_number": "0.625", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.90", "inc_tax_price_number": "0.900", "prices": { "price": { "net": 0.75, "tax": 0.15, "gross": 0.9, "currency": "GBP", "_attrs": "data-price-net=0.75 data-price-tax=0.15 data-price-gross=0.9 data-price-currency=GBP", "_data": { "priceNet": 0.75, "priceTax": 0.15, "priceGross": 0.9, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.75, "data-price-tax": 0.15, "data-price-gross": 0.9, "data-price-currency": "GBP" }, "display_price": 0.75, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 722, "value_label": "4" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 680, "value_label": "3" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 686, "value_label": "4,6" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 9796, "value_label": "0,8" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 700, "value_label": "5" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 680, "value_label": "3" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 737, "value_label": "6,5" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.05 View productSpring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic & Stainless Steel. |
5 | 4 | 5,6 | 1 | 6 | 1 | 6 | 9,4 | £0.77 £0.92 |
42 42 in stock |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "5", "4", "5,6", "1", "6", "1", "9,4", "6" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23715, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "name": "Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic & Stainless Steel.", "sku": "K1171.05", "mpn": null, "barcode": null, "was_price": "\u00a30.77", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 42, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "af5827e440be36eebf1f898a64007261.jpg;original;2025-03-14 11:16:31", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.767", "ex_vat": "\u00a30.77", "ex_vat_was_price_number": "0.642", "ex_vat_was_price": "\u00a30.64", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.770", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "price_range_min": "\u00a30.77", "price_range_max": "\u00a30.77", "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23726, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "4", "value_id": 722, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "5,6", "value_id": 4745, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": 4, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": 14, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23726, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic-stainless-steel", "sku": "K1171.05", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "9,4", "value_id": 936, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 42, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.77", "was_price_number": "0.770", "price": "\u00a30.77", "price_number": "0.770", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.77", "ex_vat_number": "0.767", "ex_vat_was_price": "\u00a30.64", "ex_vat_was_price_number": "0.642", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.92", "inc_tax_price_number": "0.920", "prices": { "price": { "net": 0.77, "tax": 0.15, "gross": 0.92, "currency": "GBP", "_attrs": "data-price-net=0.77 data-price-tax=0.15 data-price-gross=0.92 data-price-currency=GBP", "_data": { "priceNet": 0.77, "priceTax": 0.15, "priceGross": 0.92, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.77, "data-price-tax": 0.15, "data-price-gross": 0.92, "data-price-currency": "GBP" }, "display_price": 0.77, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 700, "value_label": "5" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 722, "value_label": "4" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 4745, "value_label": "5,6" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 598, "value_label": "1" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 711, "value_label": "6" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 711, "value_label": "6" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 936, "value_label": "9,4" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.06 View productSpring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic & Stainless Steel. |
6 | 5 | 6,5 | 1,6 | 7 | 1 | 6,2 | 12,6 | £0.79 £0.95 |
0 Dispatched 29/07/25 |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "6", "5", "6,5", "1,6", "7", "1", "12,6", "6,2" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23760, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "name": "Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic & Stainless Steel.", "sku": "K1171.06", "mpn": null, "barcode": null, "was_price": "\u00a30.79", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 0, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "af5827e440be36eebf1f898a64007261.jpg;original;2025-03-14 11:16:31", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.790", "ex_vat": "\u00a30.79", "ex_vat_was_price_number": "0.658", "ex_vat_was_price": "\u00a30.66", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.790", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "price_range_min": "\u00a30.79", "price_range_max": "\u00a30.79", "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23767, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": "9999999.9999", "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "1,6", "value_id": 1343, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "7", "value_id": 590, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": null, "name": "6,2", "value_id": 846, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23767, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic-stainless-steel", "sku": "K1171.06", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "12,6", "value_id": 4703, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.79", "was_price_number": "0.790", "price": "\u00a30.79", "price_number": "0.790", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.79", "ex_vat_number": "0.790", "ex_vat_was_price": "\u00a30.66", "ex_vat_was_price_number": "0.658", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a30.95", "inc_tax_price_number": "0.948", "prices": { "price": { "net": 0.79, "tax": 0.16, "gross": 0.95, "currency": "GBP", "_attrs": "data-price-net=0.79 data-price-tax=0.16 data-price-gross=0.95 data-price-currency=GBP", "_data": { "priceNet": 0.79, "priceTax": 0.16, "priceGross": 0.95, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.79, "data-price-tax": 0.16, "data-price-gross": 0.95, "data-price-currency": "GBP" }, "display_price": 0.79, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 711, "value_label": "6" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 700, "value_label": "5" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 737, "value_label": "6,5" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 1343, "value_label": "1,6" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 590, "value_label": "7" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 846, "value_label": "6,2" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 4703, "value_label": "12,6" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.08 View productSpring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic & Stainless Steel. |
8 | 6,5 | 8,5 | 1,9 | 9 | 1 | 10 | 20,4 | £0.91 £1.09 |
0 Dispatched 29/07/25 |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "8", "6,5", "8,5", "1,9", "9", "1", "20,4", "10" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23820, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "name": "Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic & Stainless Steel.", "sku": "K1171.08", "mpn": null, "barcode": null, "was_price": "\u00a30.91", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 0, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "af5827e440be36eebf1f898a64007261.jpg;original;2025-03-14 11:16:31", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.908", "ex_vat": "\u00a30.91", "ex_vat_was_price_number": "0.758", "ex_vat_was_price": "\u00a30.76", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.910", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "price_range_min": "\u00a30.91", "price_range_max": "\u00a30.91", "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23827, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "8", "value_id": 725, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "8,5", "value_id": 625, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "1,9", "value_id": 10350, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "9", "value_id": 587, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": 16, "name": "10", "value_id": 807, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23827, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic-stainless-steel", "sku": "K1171.08", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "20,4", "value_id": 12490, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.91", "was_price_number": "0.910", "price": "\u00a30.91", "price_number": "0.910", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.91", "ex_vat_number": "0.908", "ex_vat_was_price": "\u00a30.76", "ex_vat_was_price_number": "0.758", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.09", "inc_tax_price_number": "1.090", "prices": { "price": { "net": 0.91, "tax": 0.18, "gross": 1.09, "currency": "GBP", "_attrs": "data-price-net=0.91 data-price-tax=0.18 data-price-gross=1.09 data-price-currency=GBP", "_data": { "priceNet": 0.91, "priceTax": 0.18, "priceGross": 1.09, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.91, "data-price-tax": 0.18, "data-price-gross": 1.09, "data-price-currency": "GBP" }, "display_price": 0.91, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 725, "value_label": "8" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 737, "value_label": "6,5" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 625, "value_label": "8,5" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 10350, "value_label": "1,9" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 587, "value_label": "9" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 807, "value_label": "10" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 12490, "value_label": "20,4" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.10 View productSpring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic & Stainless Steel. |
10 | 8 | 11 | 2,4 | 13,5 | 1,5 | 11,9 | 22,3 | £1.52 £1.82 |
0 Dispatched 29/07/25 |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "10", "8", "11", "2,4", "13,5", "1,5", "22,3", "11,9" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23866, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "name": "Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic & Stainless Steel.", "sku": "K1171.10", "mpn": null, "barcode": null, "was_price": "\u00a31.52", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 0, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "af5827e440be36eebf1f898a64007261.jpg;original;2025-03-14 11:16:31", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "1.517", "ex_vat": "\u00a31.52", "ex_vat_was_price_number": "1.267", "ex_vat_was_price": "\u00a31.27", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "1.520", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "price_range_min": "\u00a31.52", "price_range_max": "\u00a31.52", "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23869, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "10", "value_id": 807, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "8", "value_id": 725, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "11", "value_id": 739, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "2,4", "value_id": 1881, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "13,5", "value_id": 823, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1,5", "value_id": 675, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": null, "name": "11,9", "value_id": 12546, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23869, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic-stainless-steel", "sku": "K1171.10", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "22,3", "value_id": 13519, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/af\/58\/af5827e440be36eebf1f898a64007261\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.52", "was_price_number": "1.520", "price": "\u00a31.52", "price_number": "1.520", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.52", "ex_vat_number": "1.517", "ex_vat_was_price": "\u00a31.27", "ex_vat_was_price_number": "1.267", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.82", "inc_tax_price_number": "1.820", "prices": { "price": { "net": 1.52, "tax": 0.3, "gross": 1.82, "currency": "GBP", "_attrs": "data-price-net=1.52 data-price-tax=0.3 data-price-gross=1.82 data-price-currency=GBP", "_data": { "priceNet": 1.52, "priceTax": 0.3, "priceGross": 1.82, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.52, "data-price-tax": 0.3, "data-price-gross": 1.82, "data-price-currency": "GBP" }, "display_price": 1.52, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 807, "value_label": "10" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 725, "value_label": "8" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 739, "value_label": "11" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 1881, "value_label": "2,4" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 823, "value_label": "13,5" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 675, "value_label": "1,5" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 12546, "value_label": "11,9" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 13519, "value_label": "22,3" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.204 View productSpring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic. |
4 | 3 | 4,6 | 0,8 | 5 | 1 | 3 | 6,5 | £0.89 £1.07 |
0 Dispatched 29/07/25 |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "4", "3", "4,6", "0,8", "5", "1", "6,5", "3" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23905, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "name": "Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic.", "sku": "K1171.204", "mpn": null, "barcode": null, "was_price": "\u00a30.89", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 0, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "7126d69348de350947307a6d4b85acce.jpg;original;2025-03-14 11:16:24", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.892", "ex_vat": "\u00a30.89", "ex_vat_was_price_number": "0.742", "ex_vat_was_price": "\u00a30.74", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.890", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "price_range_min": "\u00a30.89", "price_range_max": "\u00a30.89", "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23911, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "4", "value_id": 722, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "3", "value_id": 680, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "4,6", "value_id": 686, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "0,8", "value_id": 9796, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": "63.0000", "name": "3", "value_id": 680, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23911, "slug": "spring-plunger-4mm-hole-diameter-5mm-long-3mm-ball-diameter-3n-spring-force-plastic-1-k1171-204", "sku": "K1171.204", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": "9999999.9999", "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.89", "was_price_number": "0.890", "price": "\u00a30.89", "price_number": "0.890", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.89", "ex_vat_number": "0.892", "ex_vat_was_price": "\u00a30.74", "ex_vat_was_price_number": "0.742", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.07", "inc_tax_price_number": "1.070", "prices": { "price": { "net": 0.89, "tax": 0.18, "gross": 1.07, "currency": "GBP", "_attrs": "data-price-net=0.89 data-price-tax=0.18 data-price-gross=1.07 data-price-currency=GBP", "_data": { "priceNet": 0.89, "priceTax": 0.18, "priceGross": 1.07, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.89, "data-price-tax": 0.18, "data-price-gross": 1.07, "data-price-currency": "GBP" }, "display_price": 0.89, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 722, "value_label": "4" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 680, "value_label": "3" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 686, "value_label": "4,6" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 9796, "value_label": "0,8" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 700, "value_label": "5" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 680, "value_label": "3" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 737, "value_label": "6,5" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.205 View productSpring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic. |
5 | 4 | 5,6 | 1 | 6 | 1 | 6 | 9,4 | £0.94 £1.13 |
6 6 in stock |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "5", "4", "5,6", "1", "6", "1", "9,4", "6" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23942, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "name": "Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic.", "sku": "K1171.205", "mpn": null, "barcode": null, "was_price": "\u00a30.94", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 6, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "7126d69348de350947307a6d4b85acce.jpg;original;2025-03-14 11:16:24", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "0.942", "ex_vat": "\u00a30.94", "ex_vat_was_price_number": "0.783", "ex_vat_was_price": "\u00a30.78", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "0.940", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "price_range_min": "\u00a30.94", "price_range_max": "\u00a30.94", "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23948, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "4", "value_id": 722, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "5,6", "value_id": 4745, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": 4, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": 14, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23948, "slug": "spring-plunger-5mm-hole-diameter-6mm-long-4mm-ball-diameter-6n-spring-force-plastic", "sku": "K1171.205", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "9,4", "value_id": 936, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 6, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a30.94", "was_price_number": "0.940", "price": "\u00a30.94", "price_number": "0.940", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a30.94", "ex_vat_number": "0.942", "ex_vat_was_price": "\u00a30.78", "ex_vat_was_price_number": "0.783", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.13", "inc_tax_price_number": "1.130", "prices": { "price": { "net": 0.94, "tax": 0.19, "gross": 1.13, "currency": "GBP", "_attrs": "data-price-net=0.94 data-price-tax=0.19 data-price-gross=1.13 data-price-currency=GBP", "_data": { "priceNet": 0.94, "priceTax": 0.19, "priceGross": 1.13, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 0.94, "data-price-tax": 0.19, "data-price-gross": 1.13, "data-price-currency": "GBP" }, "display_price": 0.94, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 700, "value_label": "5" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 722, "value_label": "4" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 4745, "value_label": "5,6" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 598, "value_label": "1" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 711, "value_label": "6" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 711, "value_label": "6" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 936, "value_label": "9,4" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.206 View productSpring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic. |
6 | 5 | 6,5 | 1,6 | 7 | 1 | 6,2 | 12,6 | £1.01 £1.21 |
40 40 in stock |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "6", "5", "6,5", "1,6", "7", "1", "12,6", "6,2" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23982, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "name": "Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic.", "sku": "K1171.206", "mpn": null, "barcode": null, "was_price": "\u00a31.01", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 40, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "7126d69348de350947307a6d4b85acce.jpg;original;2025-03-14 11:16:24", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "1.008", "ex_vat": "\u00a31.01", "ex_vat_was_price_number": "0.842", "ex_vat_was_price": "\u00a30.84", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "1.010", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "price_range_min": "\u00a31.01", "price_range_max": "\u00a31.01", "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23989, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "6", "value_id": 711, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "5", "value_id": 700, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": "9999999.9999", "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "1,6", "value_id": 1343, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "7", "value_id": 590, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": null, "name": "6,2", "value_id": 846, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23989, "slug": "spring-plunger-6mm-hole-diameter-7mm-long-6mm-ball-diameter-62n-spring-force-plastic", "sku": "K1171.206", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "12,6", "value_id": 4703, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 40, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.01", "was_price_number": "1.010", "price": "\u00a31.01", "price_number": "1.010", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.01", "ex_vat_number": "1.008", "ex_vat_was_price": "\u00a30.84", "ex_vat_was_price_number": "0.842", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.21", "inc_tax_price_number": "1.210", "prices": { "price": { "net": 1.01, "tax": 0.2, "gross": 1.21, "currency": "GBP", "_attrs": "data-price-net=1.01 data-price-tax=0.2 data-price-gross=1.21 data-price-currency=GBP", "_data": { "priceNet": 1.01, "priceTax": 0.2, "priceGross": 1.21, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.01, "data-price-tax": 0.2, "data-price-gross": 1.21, "data-price-currency": "GBP" }, "display_price": 1.01, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 711, "value_label": "6" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 700, "value_label": "5" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 737, "value_label": "6,5" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 1343, "value_label": "1,6" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 590, "value_label": "7" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 846, "value_label": "6,2" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 4703, "value_label": "12,6" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.208 View productSpring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic. |
8 | 6,5 | 8,5 | 1,9 | 9 | 1 | 10 | 20,4 | £1.08 £1.30 |
0 Dispatched 29/07/25 |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "8", "6,5", "8,5", "1,9", "9", "1", "20,4", "10" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23044, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "name": "Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic.", "sku": "K1171.208", "mpn": null, "barcode": null, "was_price": "\u00a31.08", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 0, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "7126d69348de350947307a6d4b85acce.jpg;original;2025-03-14 11:16:24", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "1.083", "ex_vat": "\u00a31.08", "ex_vat_was_price_number": "0.900", "ex_vat_was_price": "\u00a30.90", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "1.080", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "price_range_min": "\u00a31.08", "price_range_max": "\u00a31.08", "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23046, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "8", "value_id": 725, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "6,5", "value_id": 737, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "8,5", "value_id": 625, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "1,9", "value_id": 10350, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "9", "value_id": 587, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1", "value_id": 598, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": 16, "name": "10", "value_id": 807, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23046, "slug": "spring-plunger-8mm-hole-diameter-9mm-long-65mm-ball-diameter-10n-spring-force-plastic", "sku": "K1171.208", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "20,4", "value_id": 12490, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 0, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.08", "was_price_number": "1.080", "price": "\u00a31.08", "price_number": "1.080", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.08", "ex_vat_number": "1.083", "ex_vat_was_price": "\u00a30.90", "ex_vat_was_price_number": "0.900", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a31.30", "inc_tax_price_number": "1.300", "prices": { "price": { "net": 1.08, "tax": 0.22, "gross": 1.3, "currency": "GBP", "_attrs": "data-price-net=1.08 data-price-tax=0.22 data-price-gross=1.3 data-price-currency=GBP", "_data": { "priceNet": 1.08, "priceTax": 0.22, "priceGross": 1.3, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.08, "data-price-tax": 0.22, "data-price-gross": 1.3, "data-price-currency": "GBP" }, "display_price": 1.08, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 725, "value_label": "8" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 737, "value_label": "6,5" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 625, "value_label": "8,5" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 10350, "value_label": "1,9" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 587, "value_label": "9" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 598, "value_label": "1" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 807, "value_label": "10" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 12490, "value_label": "20,4" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
D |
D1 |
D2 |
H |
L |
L1 |
Spring force initial pressure F1 approx. N |
Spring force final pressure F2 approx. N |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||
K1171.210 View productSpring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic. |
10 | 8 | 11 | 2,4 | 13,5 | 1,5 | 11,9 | 22,3 | £1.69 £2.03 |
47 47 in stock |
{ "rating_count": 0, "rating_score": 0, "attributes": [], "default_having_field": 1, "internal_additional_information": { "attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\nfinal pressure\nF2 approx. N", "Spring force\ninitial pressure\nF1 approx. N" ], "values": [ "10", "8", "11", "2,4", "13,5", "1,5", "22,3", "11,9" ], "customisations": [], "repeaters": [], "formula": null, "formula_defaults": null, "formula_minimum_spend": null, "quantity_increments": [], "hide_in_categories": false, "subscriptions": null, "preorder_unavailable": false, "limit_one_per_order": false, "tags": "" }, "id": 23070, "parent_id": null, "brand_id": 1, "product_category_id": 808, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "name": "Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic.", "sku": "K1171.210", "mpn": null, "barcode": null, "was_price": "\u00a31.69", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "tax_rate": "20.000", "price_range_min_number": null, "price_range_max_number": null, "children_on_sale_count": 0, "on_sale": 0, "sale_price_number": null, "sale_price": "\u00a30.00", "stock": 47, "track_stock": 1, "can_be_purchased": 1, "on_website": 1, "meta_description": "", "default_variant": 0, "product_image": "7126d69348de350947307a6d4b85acce.jpg;original;2025-03-14 11:16:24", "cost_price": null, "use_canonical_url": 0, "stock_on_order": null, "stock_on_order_date": null, "swatchable": null, "brand_name": "Kipp", "category_name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "category_slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "category_visibility": 1, "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null }, "ex_vat_number": "1.690", "ex_vat": "\u00a31.69", "ex_vat_was_price_number": "1.408", "ex_vat_was_price": "\u00a31.41", "ex_vat_sale_price_number": "0.000", "ex_vat_sale_price": "\u00a30.00", "was_price_number": "1.690", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "price_range_min": "\u00a31.69", "price_range_max": "\u00a31.69", "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "primary_images": [ "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100" ], "formula": null, "default_variant_id": 23074, "has_sibling_variants": false, "child_attributes": { "d": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "D", "attribute_order_num": 0, "name": "10", "value_id": 807, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d1": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "D1", "attribute_order_num": 0, "name": "8", "value_id": 725, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "d2": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "D2", "attribute_order_num": null, "name": "11", "value_id": 739, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "h": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "H", "attribute_order_num": null, "name": "2,4", "value_id": 1881, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "L", "attribute_order_num": 0, "name": "13,5", "value_id": 823, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "l1": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "L1", "attribute_order_num": 0, "name": "1,5", "value_id": 675, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_initial_pressure_f1_approx__n": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "attribute_order_num": null, "name": "11,9", "value_id": 12546, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ], "spring_force_final_pressure_f2_approx__n": [ { "id": 23074, "slug": "spring-plunger-10mm-hole-diameter-135mm-long-10mm-ball-diameter-119n-spring-force-plastic", "sku": "K1171.210", "mpn": null, "barcode": null, "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "attribute_order_num": null, "name": "22,3", "value_id": 13519, "default_variant": 1, "custom_data": null, "swatch": false, "swatch_data": [], "selected": false, "can_be_purchased_in_shop": true, "images": { "64": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/64x64\/webp\/resize?quality=100&compression=100", "128": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/128x128\/webp\/resize?quality=100&compression=100", "256": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/256x256\/webp\/resize?quality=100&compression=100", "512": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/512x512\/webp\/resize?quality=100&compression=100", "1024": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/1024x1024\/webp\/resize?quality=100&compression=100", "2048": "https:\/\/images.shopcdn.co.uk\/71\/26\/7126d69348de350947307a6d4b85acce\/2048x2048\/webp\/resize?quality=100&compression=100" }, "stock": 47, "track_stock": 1, "stock_on_order": null, "was_price": "\u00a31.69", "was_price_number": "1.690", "price": "\u00a31.69", "price_number": "1.690", "charge_tax": 1, "on_sale": 0, "sale_price": "\u00a30.00", "sale_price_number": null, "ex_vat": "\u00a31.69", "ex_vat_number": "1.690", "ex_vat_was_price": "\u00a31.41", "ex_vat_was_price_number": "1.408", "ex_vat_sale_price": "\u00a30.00", "ex_vat_sale_price_number": "0.000", "inc_tax_price": "\u00a32.03", "inc_tax_price_number": "2.028", "prices": { "price": { "net": 1.69, "tax": 0.34, "gross": 2.03, "currency": "GBP", "_attrs": "data-price-net=1.69 data-price-tax=0.34 data-price-gross=2.03 data-price-currency=GBP", "_data": { "priceNet": 1.69, "priceTax": 0.34, "priceGross": 2.03, "priceCurrency": "GBP" }, "_prop": { "data-price-net": 1.69, "data-price-tax": 0.34, "data-price-gross": 2.03, "data-price-currency": "GBP" }, "display_price": 1.69, "currency_symbol": "\u00a3" }, "on_sale": false, "sale_price": null, "range": null } } ] }, "default_variant_attribute_values": [ { "attribute_slug": "d", "attribute_label": "D", "value_id": 807, "value_label": "10" }, { "attribute_slug": "d1", "attribute_label": "D1", "value_id": 725, "value_label": "8" }, { "attribute_slug": "d2", "attribute_label": "D2", "value_id": 739, "value_label": "11" }, { "attribute_slug": "h", "attribute_label": "H", "value_id": 1881, "value_label": "2,4" }, { "attribute_slug": "l", "attribute_label": "L", "value_id": 823, "value_label": "13,5" }, { "attribute_slug": "l1", "attribute_label": "L1", "value_id": 675, "value_label": "1,5" }, { "attribute_slug": "spring_force_initial_pressure_f1_approx__n", "attribute_label": "Spring force\ninitial pressure\nF1 approx. N", "value_id": 12546, "value_label": "11,9" }, { "attribute_slug": "spring_force_final_pressure_f2_approx__n", "attribute_label": "Spring force\nfinal pressure\nF2 approx. N", "value_id": 13519, "value_label": "22,3" } ], "tags": [], "tagNames": [], "category": { "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" } }
Showing products per page
50+ in stock
Item Code: K1171.04
Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic & Stainless Steel.
£0.75 Excl VAT £0.90 Inc VAT
Price breaks available
Text
42 in stock
Item Code: K1171.05
Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic & Stainless Steel.
£0.77 Excl VAT £0.92 Inc VAT
Price breaks available
Text
Dispatch by 29/07/25
Item Code: K1171.06
Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic & Stainless Steel.
£0.79 Excl VAT £0.95 Inc VAT
Price breaks available
Text
Dispatch by 29/07/25
Item Code: K1171.08
Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic & Stainless Steel.
£0.91 Excl VAT £1.09 Inc VAT
Price breaks available
Text
Dispatch by 29/07/25
Item Code: K1171.10
Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic & Stainless Steel.
£1.52 Excl VAT £1.82 Inc VAT
Price breaks available
Text
Dispatch by 29/07/25
Item Code: K1171.204
Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic.
£0.89 Excl VAT £1.07 Inc VAT
Price breaks available
Text
6 in stock
Item Code: K1171.205
Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic.
£0.94 Excl VAT £1.13 Inc VAT
Price breaks available
Text
40 in stock
Item Code: K1171.206
Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic.
£1.01 Excl VAT £1.21 Inc VAT
Price breaks available
Text
Dispatch by 29/07/25
Item Code: K1171.208
Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic.
£1.08 Excl VAT £1.30 Inc VAT
Price breaks available
Text
47 in stock
Item Code: K1171.210
Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic.
£1.69 Excl VAT £2.03 Inc VAT
Price breaks available
Text
Showing products per page
Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic & Stainless Steel.
50+ in stock
Item Code: K1171.04
£0.75 Excl VAT £0.90 Inc VAT
Price breaks available
Text
Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic & Stainless Steel.
42 in stock
Item Code: K1171.05
£0.77 Excl VAT £0.92 Inc VAT
Price breaks available
Text
Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic & Stainless Steel.
Dispatch by 29/07/25
Item Code: K1171.06
£0.79 Excl VAT £0.95 Inc VAT
Price breaks available
Text
Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic & Stainless Steel.
Dispatch by 29/07/25
Item Code: K1171.08
£0.91 Excl VAT £1.09 Inc VAT
Price breaks available
Text
Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic & Stainless Steel.
Dispatch by 29/07/25
Item Code: K1171.10
£1.52 Excl VAT £1.82 Inc VAT
Price breaks available
Text
Spring Plunger. 4mm Hole Diameter. 5mm Long. 3mm Ball Diameter. 3N Spring Force. Plastic.
Dispatch by 29/07/25
Item Code: K1171.204
£0.89 Excl VAT £1.07 Inc VAT
Price breaks available
Text
Spring Plunger. 5mm Hole Diameter. 6mm Long. 4mm Ball Diameter. 6N Spring Force. Plastic.
6 in stock
Item Code: K1171.205
£0.94 Excl VAT £1.13 Inc VAT
Price breaks available
Text
Spring Plunger. 6mm Hole Diameter. 7mm Long. 6mm Ball Diameter. 6.2N Spring Force. Plastic.
40 in stock
Item Code: K1171.206
£1.01 Excl VAT £1.21 Inc VAT
Price breaks available
Text
Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic.
Dispatch by 29/07/25
Item Code: K1171.208
£1.08 Excl VAT £1.30 Inc VAT
Price breaks available
Text
Spring Plunger. 10mm Hole Diameter. 13.5mm Long. 10mm Ball Diameter. 11.9N Spring Force. Plastic.
47 in stock
Item Code: K1171.210
£1.69 Excl VAT £2.03 Inc VAT
Price breaks available
Text
Showing products per page
{ "id": "808", "layout_id": "", "parent_id": "782", "name": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "slug": "k1171-spring-plungers-in-plastic-smooth-version-self-clamping", "meta_title": "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "meta_description": "", "long_description": "", "short_description": "<div id=\"category-description-short-1\">\r\n<p style=\"text-align: left;\"><strong>Material:<\/strong><br \/>\r\nSleeve thermoplastic.<br \/>\r\nSpring stainless steel.<br \/>\r\nBall stainless steel or POM.<\/p>\r\n\r\n<p style=\"text-align: left;\"><strong>Version:<\/strong><br \/>\r\nSleeve black.<br \/>\r\nBall hardened, bright.<\/p>\r\n\r\n<p style=\"text-align: left;\"><strong>Note:<\/strong><br \/>\r\nThe self-locking function of the spring plunger enables simple assembly and secure overhead installation.<\/p>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img alt=\"Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 10N Spring Force. Plastic.\" src=\"https:\/\/images.shopcdn.co.uk\/af\/e4\/afe497975278b8eb0be1ca7e3c79710c\/750x299\/webp\/resize?quality=100&compression=100\" \/><\/div>\r\n<\/div>", "active": "1", "visible": "1", "show_products": "1", "order_num": "293", "default_sortby": "best_match", "deleted": "0", "created": "2025-03-14 11:16:23", "updated": "2025-06-24 13:40:40", "images": [ { "url": "https:\/\/images.shopcdn.co.uk\/58\/17\/5817270a0d5ece06973a297809302b0f\/1024x1024\/webp\/fit?quality=100&compression=100", "contain_url": "https:\/\/images.shopcdn.co.uk\/58\/17\/5817270a0d5ece06973a297809302b0f\/256x256\/webp\/fit?quality=100&compression=100", "crop_url": "https:\/\/images.shopcdn.co.uk\/58\/17\/5817270a0d5ece06973a297809302b0f\/256x256\/webp\/fit?quality=100&compression=100", "original_url": "https:\/\/images.shopcdn.co.uk\/58\/17\/5817270a0d5ece06973a297809302b0f\/499x362\/webp\/resize?quality=100&compression=100" } ], "is_parent_category": false, "is_product_group": false, "parent_category_title": "Spring Plungers", "parent_category_url": "spring-plungers", "path": "Standard Parts > Spring Plungers > K1171 - Spring Plungers In Plastic Smooth Version Self Clamping", "path_list": [ "Standard Parts", "Spring Plungers", "K1171 - Spring Plungers In Plastic Smooth Version Self Clamping" ], "selectedTags": [], "availableProducts": { "key": "available", "doc_count": 10, "stockLevel": { "untracked": 10, "in_stock": 0 } }, "unavailableProducts": { "key": "unavailable", "doc_count": 0 }, "product_attributes": [ "D", "D1", "D2", "H", "L", "L1", "Spring force\ninitial pressure\nF1 approx. N", "Spring force\nfinal pressure\nF2 approx. N" ] }
