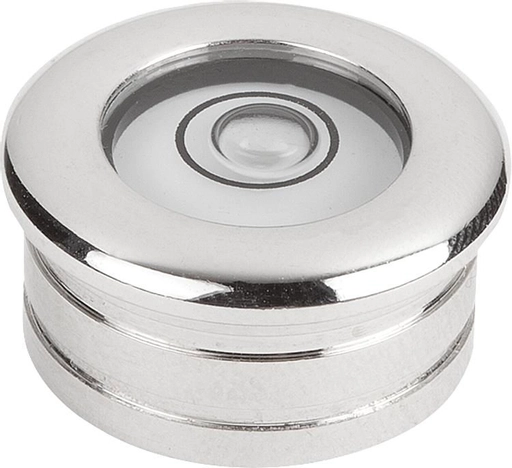

Round Spirit Level. 30mm Diameter. Brass.

Item Code: K1152.281330

Round Spirit Level. 30mm Diameter. Brass.

K1152-Bullseye-Levels-With-Bead-Edged-Frame_1200x1200.jpg?

K1152-Bullseye-Levels-With-Bead-Edged-Frame-Drawing_1200x1200.jpg?

Item Code: K1152.281330

Round Spirit Level. 30mm Diameter. Brass.

Material:
Frame brass.
Bullseye level body polyamide.
Version:
Nickel-plated and high-gloss polished.
Note:
Bubble levels are used as a type of zero indicator instrument for checking horizontal inclination in e.g. spirit levels, inclinometers, metrology instruments and machine constructions.
- Sensitivity in angular minutes for 2 mm bubble travel
- The bullseye level is calibrated to underside of the flange
- Bead edge with serrations for recessing
- Clear filling
- Black contrast ring
- White level base
Temperature range:
-35 °C up to +55 °C.

Quick Links

Dispatch by 09/06/25

D: 30

D1: 28

H: 13

H1: 10

D2: 20

Sensitivity: 30'

£16.93 ea. Excl VAT £20.32 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£15.58	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

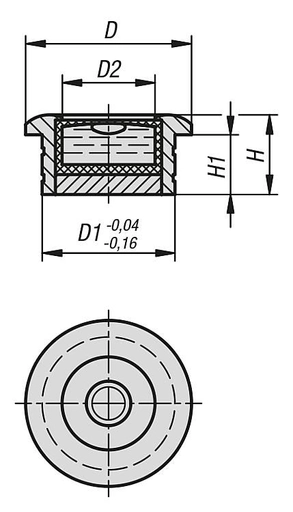

Product Dimensions

D	30
D1	28
H	13
H1	10
D2	20
Sensitivity	30'

Downloads

STP
