Item Code: K1106.20186

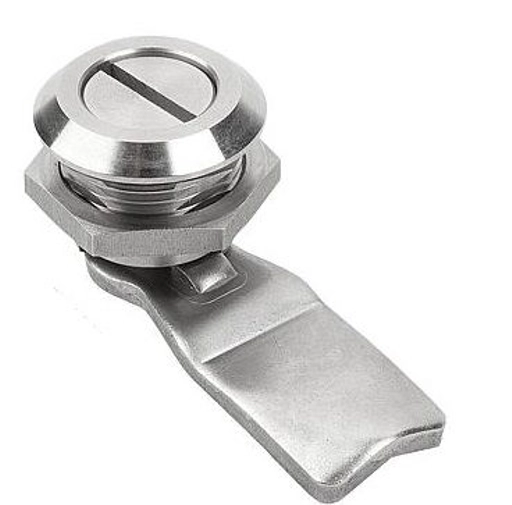

Quarter Turn Lock. Slot Lock. 18mm Height. Stainless Steel.

Item Code: K1106.20186

Quarter Turn Lock. Slot Lock. 18mm Height. Stainless Steel.

Tongue Not Supplied. Please Order Separately

Material:
Quarter-turn lock 1.4305 stainless steel.
Tongue 1.4301 stainless steel.
Version:
Bright.
Note:
Rating IP65. This is achieved using an additional O-ring underneath the actuator and a PUR seal foamed onto the housing. The quarter-turn lock can be installed pre-assembled. Please order the required tongue separately. Every tongue can be combined with this housing.
Drawing reference:
Actuation:
a) square 8 mm
b) slot
c) double lug 5 mm

Quick Links

Dispatch by 23/07/25

Slot
18
8
27

£19.16  ea. Excl VAT £22.99  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £15.71 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material:
Quarter-turn lock 1.4305 stainless steel.
Tongue 1.4301 stainless steel.
Version:
Bright.
Note:
Rating IP65. This is achieved using an additional O-ring underneath the actuator and a PUR seal foamed onto the housing. The quarter-turn lock can be installed pre-assembled. Please order the required tongue separately. Every tongue can be combined with this housing.
Drawing reference:
Actuation:
a) square 8 mm
b) slot
c) double lug 5 mm
ActuationSlot
H18
S max.8
SW27
STP
Material303 Stainless Steel
ConnectionSlot
Height18mm
Diameter28mm
