Locating Pin. 8mm Diameter. 16mm High. Tool Steel.

Item Code: K1094.212

Locating Pin. 8mm Diameter. 16mm High. Tool Steel.

Locating-Pin-B_1200x1200.jpg?

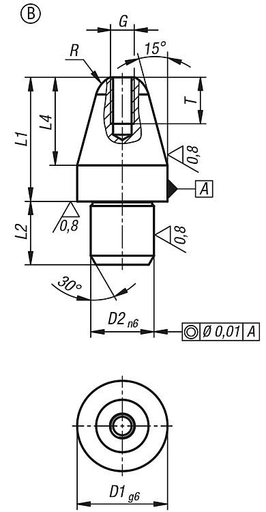

Locating-Pin-B-Drawing_1200x1200.jpg?

Item Code: K1094.212

Locating Pin. 8mm Diameter. 16mm High. Tool Steel.

Material:
Steel.
Version:
Hardened and ground (HRC 60 ±2).
Note:
Locating pins are specially designed to ease the locating process. When used in conjunction with the hardened locating bushes K1095, they allow for a rapid, precise and low-wear workpiece exchange.

Quick Links

Dispatch by 30/06/25

D1: 12

D2: 8

Form: B

G: M3

H: 16

H1: 8

H2: 12

R: 3,5

T: 6

£13.38 ea. Excl VAT £16.06 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£10.97	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Steel.
Version:
Hardened and ground (HRC 60 ±2).
Note:
Locating pins are specially designed to ease the locating process. When used in conjunction with the hardened locating bushes K1095, they allow for a rapid, precise and low-wear workpiece exchange.

Product Dimensions

D1	12
D2	8
Form	B
G	M3
H	16
H1	8
H2	12
R	3,5
T	6

Thread Size / Body Diameter	8mm
Length	16mm
Body Material	Steel
Ball / Head Material	Steel
Head Type	Threaded
