Material:
Housing steel.
Nut stainless steel.
Version:
Housing nickel-plated.
Nut bright.
Note:
M2 or M3 mounting screws are supplied.
Form A mounting option for plate thickness 6 to 10 mm.
Form B mounting option for plate thickness over 10 mm.Accessory:Quarter-turn clamp lock K1061 or K1558

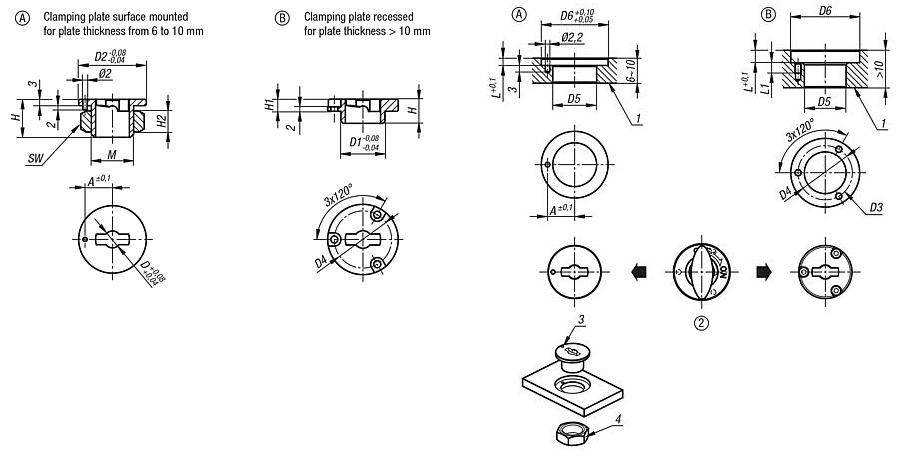

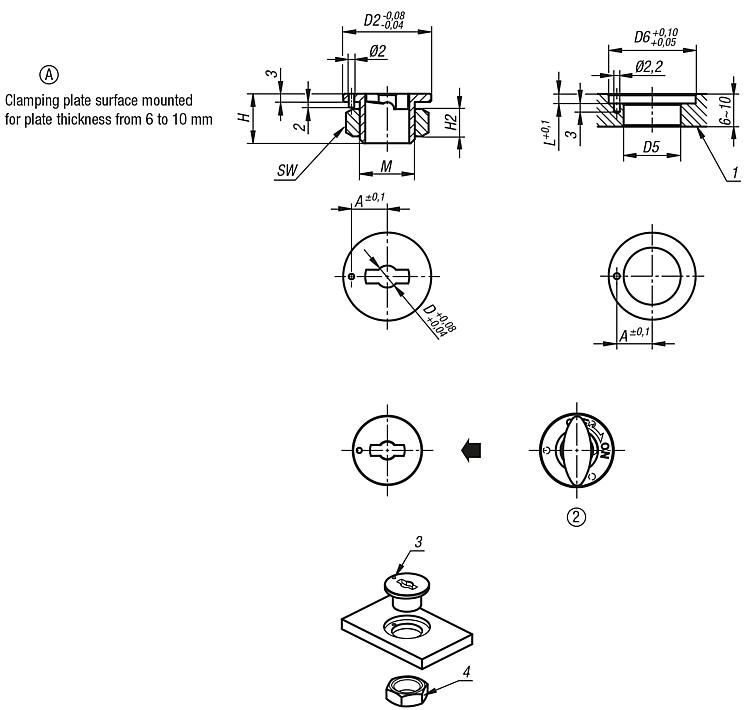

Drawing reference:
1) plate
2) quarter-turn clamp lock
3) locating pin
4) nut
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch
A |
D |
D1 |
D2 |
D3 for screw to DIN 912 |
D4 |
D5 |
D6 |
Form |
H |
H1 |
H2 |
L |
L1 |
M |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||||||||||
K1062.50 View productClamping Plate. Slot Diameter 5mm. Superimposed. Nickel-Plated Steel. |
10,5 | 5 | - | 25 | - | - | 15 | 25 | A | 16 | - | 8 | 3,5 | - | M14X1,5 | 22 | £20.57 £24.68 |
0 Dispatched 02/07/25 |
A |
D |
D1 |
D2 |
D3 for screw to DIN 912 |
D4 |
D5 |
D6 |
Form |
H |
H1 |
H2 |
L |
L1 |
M |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||||||||||
K1062.501 View productClamping Plate. Slot Diameter 5mm. Countersunk. Nickel-Plated Steel. |
- | 5 | 14 | 25 | M2 | 21 | 14 | 26 | B | 9 | 4,5 | - | 5 | 4 | - | - | £20.57 £24.68 |
0 Dispatched 02/07/25 |
A |
D |
D1 |
D2 |
D3 for screw to DIN 912 |
D4 |
D5 |
D6 |
Form |
H |
H1 |
H2 |
L |
L1 |
M |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||||||||||
K1062.80 View productClamping Plate. Slot Diameter 8mm. Superimposed. Nickel-Plated Steel. |
13 | 8 | - | 32 | - | - | 21 | 32 | A | 18 | - | 10 | 3,5 | - | M20x1,5 | 30 | £21.86 £26.23 |
0 Dispatched 02/07/25 |
A |
D |
D1 |
D2 |
D3 for screw to DIN 912 |
D4 |
D5 |
D6 |
Form |
H |
H1 |
H2 |
L |
L1 |
M |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||||||||||||||
K1062.801 View productClamping Plate.Slot Diameter 8mm. Countersunk. Nickel-Plated Steel. |
- | 8 | 20 | 32 | M3 | 26 | 20 | 33 | B | 11 | 5,5 | - | 6 | 5 | - | - | £21.86 £26.23 |
0 Dispatched 02/07/25 |
Showing products per page
Dispatch by 02/07/25
Item Code: K1062.50
Clamping Plate. Slot Diameter 5mm. Superimposed. Nickel-Plated Steel.
£20.57 Excl VAT £24.68 Inc VAT
Price breaks available
Text
Dispatch by 02/07/25
Item Code: K1062.501
Clamping Plate. Slot Diameter 5mm. Countersunk. Nickel-Plated Steel.
£20.57 Excl VAT £24.68 Inc VAT
Price breaks available
Text
Dispatch by 02/07/25
Item Code: K1062.80
Clamping Plate. Slot Diameter 8mm. Superimposed. Nickel-Plated Steel.
£21.86 Excl VAT £26.23 Inc VAT
Price breaks available
Text
Dispatch by 02/07/25
Item Code: K1062.801
Clamping Plate.Slot Diameter 8mm. Countersunk. Nickel-Plated Steel.
£21.86 Excl VAT £26.23 Inc VAT
Price breaks available
Text
