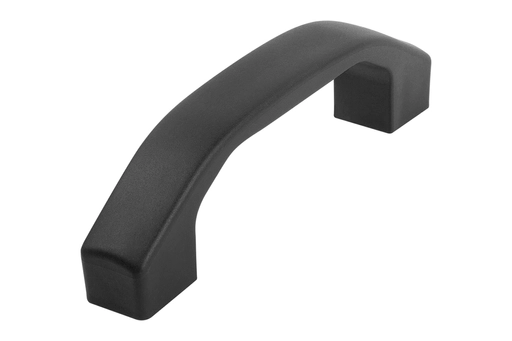

Thermoplastic Metal Detectable Pull Handle. Rear Mounted. 100mm Hole Centres. M5 Threads.

Item Code: K1060.142100052

Thermoplastic Metal Detectable Pull Handle. Rear Mounted. 100mm Hole Centres. M5 Threads.

Item Code: K1060.142100052

Thermoplastic Metal Detectable Pull Handle. Rear Mounted. 100mm Hole Centres. M5 Threads.

Product description:
The metal detectable operating parts are made from a EU10/2011 and FDA conform plastic granulate.
Due to special additives to the plastic granulate, it is possible for metal detectors (induction technology) to detect plastic particles from a size of 0.027 cm³ (3x3x3 mm). This means that in sensitive production sectors, e.g. foodstuff processing, plastic fragments of metal detectable operating parts can be identified and the risk of production downtimes or complaints are significantly reduced.

Material:
Thermoplastic (fibreglass reinforced polyamide), metal detectable, EU10/2011 and FDA conform.
Steel parts stainless steel 1.4404.

Version:
Thermoplastic black-grey RAL 7021.
Steel parts bright stainless steel.

Note:
The metal detectable additive can lead to partial colour variations in the plastic surface. Screw-on dimension "A" applies after grip assembly. In the unassembled state it may deviate through flexural stress by deforming.

Application:
- Foodstuff industry
- Pharmaceutical industry
- Packaging industry

Temperature range:
-20°C to +100°C.

Assembly:
From the rear.

Advantages:
Metal detectable.
Detections volume ≥ 0.027 cm³.
Foodstuff conform material.

Quick Links

Dispatch by 11/07/26

A: 100

B: 17

C: 9.5

D: M5

H: 33

L: 122

Load capacity N: 1000

S: 20

style: B

T: 9
