K1046 - Angle Sets Type B

List view Grid view

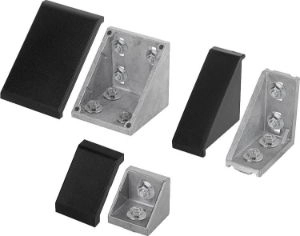

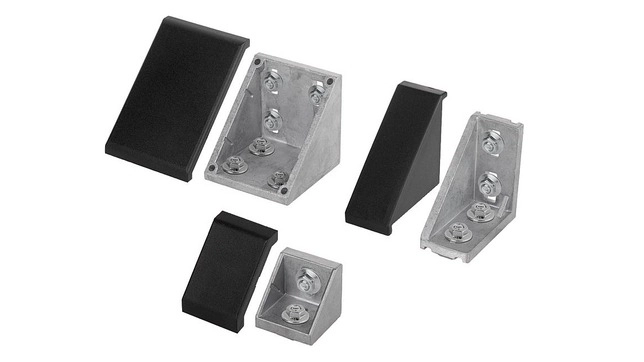

K1046 - Angle Sets Type B

Material:
Angle die-cast aluminium.
Screws and slot keys steel.
Cover cap fibreglass reinforced polyamide

Version:
Angle bright.
Screws and slot nuts electro zinc-plated.
End cap black.

Note:
Suitable for reinforcing profile constructions and for frictional connection of profiles with each other without machining. Can also be used as fastening element (e.g. bracket) for any components.
The angles have centring lugs for accurate and twist-proof mounting. The centring lugs can be removed if necessary by breaking off i.e. for mounting plates. The open side can be closed off with the end cap.

Angle Sets.

K1046 - Angle Sets Type B

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

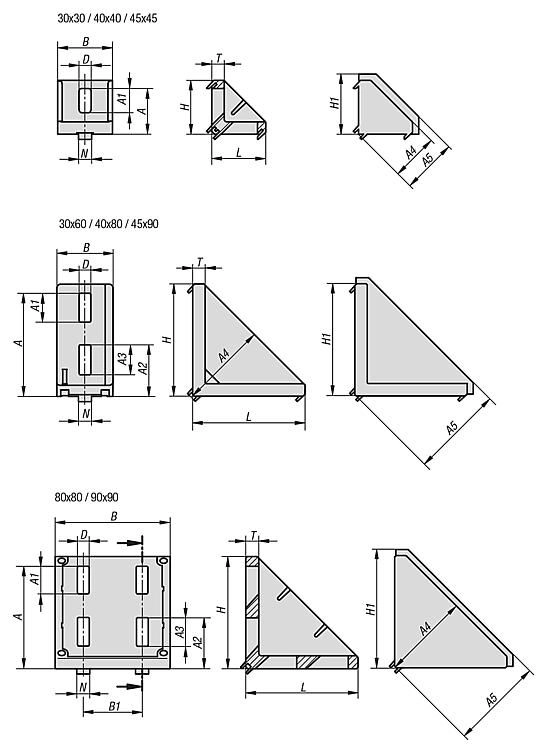

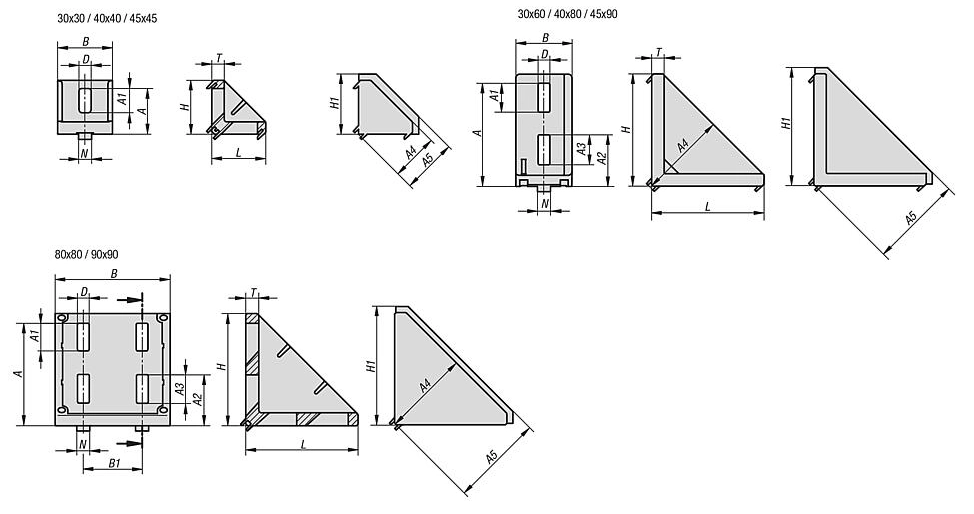

A A1 A2 A3 A4 A5 B B1 D H H1 L N T Version Price (Exc. Tax) Stock Qty basket

Filters

K1046.083030
View product
22 9,5 -- -- 23 29 28 -- 6,4 27 30 27 8 6 30x30
£3.53
1
K1046.083060
View product
51 11 23 11 44 49 28 -- 6,4 57 61 57 8 5,5 30x60
£6.35
0
K1046.104040
View product
29,5 20,5 -- -- 29,5 36,5 38 -- 9 36 41,5 36 10 5,5 40x40
£4.77
0
K1046.104080
View product
68 20 35 23 59 64 38 -- 9 76 80 76 10 8,5 45x45
£10.03
0
K1046.104545
View product
35 18,5 -- -- 35 44,5 42 -- 9 41 50,5 41 10 9,5 40x80
£4.77
0
K1046.104590
View product
79 22 39,5 23 67 72 43 -- 9 86 90 86 10 9,5 45x90
£10.03
0
K1046.108080
View product
68,5 20 35 20 58,5 65 74 40 9 76 82,5 76 10 8 80x80
£13.67
0
K1046.109090
View product
78,5 21 39 22 67 75 88 45 9 86 94,5 86 10 10 90x90
£13.67
0

Showing products per page


£
£

1 in stock

Item Code: K1046.083030

Angle Bracket. 30x30mm. 8mm Slot Width. Aluminium.

£3.53  Excl VAT £4.24  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.083060

Angle Bracket. 30x60mm. 8mm Slot Width. Aluminium.

£6.35  Excl VAT £7.62  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.104040

Angle Bracket. 40x40mm. 10mm Slot Width. Aluminium.

£4.77  Excl VAT £5.72  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.104080

Angle Bracket. 45x45mm. 10mm Slot Width. Aluminium.

£10.03  Excl VAT £12.04  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.104545

Angle Bracket. 40x80mm. 10mm Slot Width. Aluminium.

£4.77  Excl VAT £5.72  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.104590

Angle Bracket. 45x90mm. 10mm Slot Width. Aluminium.

£10.03  Excl VAT £12.04  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.108080

Angle Bracket. 80x80mm. 10mm Slot Width. Aluminium.

£13.67  Excl VAT £16.40  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1046.109090

Angle Bracket. 90x90mm. 10mm Slot Width. Aluminium.

£13.67  Excl VAT £16.40  Inc VAT

Price breaks available

Text

Qty
