K1033 - Central Connecting Set For Aluminium Profiles

List view Grid view

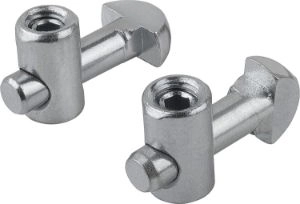

K1033 - Central Connecting Set For Aluminium Profiles

Material:
Steel.

Version:
Electro zinc-plated.

Note:
The connecting sets are used to connect two aluminum profiles of the same series from the front.

No machining of the profile is necessary. The connector is screwed into the profile slot from the front (connector with through hole left-hand thread. Connector with internal thread right-hand thread). The connector has a self-tapping thread. The use of lubricants is recommended.

Automatic connecting sets should always be used in pairs. More pairs are required for large profiles and loads.

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Not Hardened. Stainless Steel.

K1033 - Central Connecting Set For Aluminium Profiles

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

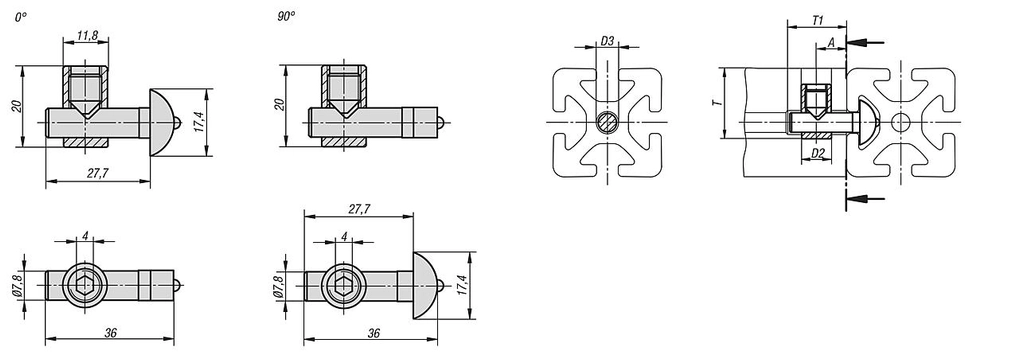

A

D2

D3

Slot width

T

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1033.0800

View product

Connecting Set Central. 0 Degrees.

 15 12 8 8 28 28 £3.66 £4.39

0

Dispatched 08/07/25

A

D2

D3

Slot width

T

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1033.0890

View product

Connecting Set Central. 90 Degrees.

 15 12 8 8 28 28 £3.66 £4.39

0

Dispatched 08/07/25

Showing products per page


£
£

Dispatch by 08/07/25

Item Code: K1033.0800

Connecting Set Central. 0 Degrees.

£3.66  Excl VAT £4.39  Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K1033.0890

Connecting Set Central. 90 Degrees.

£3.66  Excl VAT £4.39  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Connecting Set Central. 0 Degrees.

Connecting Set Central. 0 Degrees.

Dispatch by 08/07/25

Item Code: K1033.0800

£3.66  Excl VAT £4.39  Inc VAT

Price breaks available

Text

Qty

Connecting Set Central. 90 Degrees.

Connecting Set Central. 90 Degrees.

Dispatch by 08/07/25

Item Code: K1033.0890

£3.66  Excl VAT £4.39  Inc VAT

Price breaks available

Text

Qty
