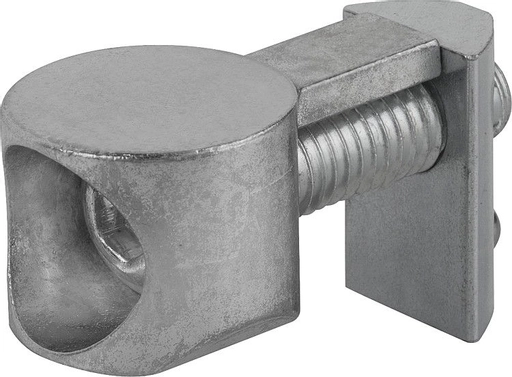

Connecting Set. M6 Thread. 6mm Slot Width.

Item Code: K1032.06

Connecting Set. M6 Thread. 6mm Slot Width.

Item Code: K1032.06

Connecting Set. M6 Thread. 6mm Slot Width.

Material:
Connector die-cast zinc.
Screw and slot nuts steel.

Version:
galvanized.

Note:

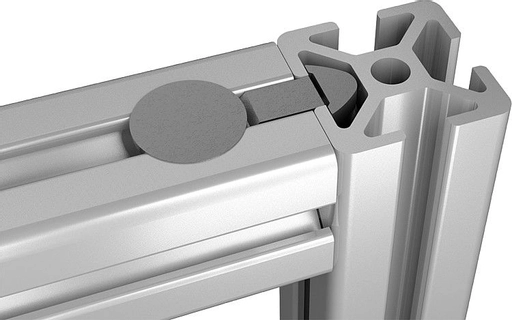

The connecting sets are used for connecting two aluminium profiles at right angles. They allow a free positioning of profiles. The connection is non-rotating (the rotation lock can be broken off). For larger profiles several connecting sets can be mounted on the end for greater strength. Retrofitting into existing constructions is possible.

Low workload. The connecting set requires only one hole drilled in one end.

Quick Links

Dispatch by 06/08/25

A: 15

D: M6

D1: 16

D2: 16

H: 12,5

L: 25,2

N: 6,2

Slot width: 6

SW: 4

T: 12,7

£2.60 ea. Excl VAT £3.12 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.44	6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

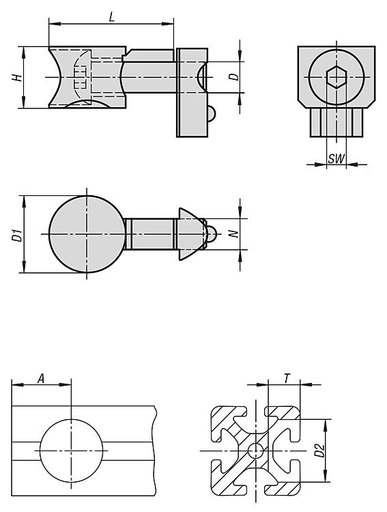

Product Dimensions

A	15
D	M6
D1	16
D2	16
H	12,5
L	25,2
N	6,2
Slot width	6
SW	4
T	12,7
