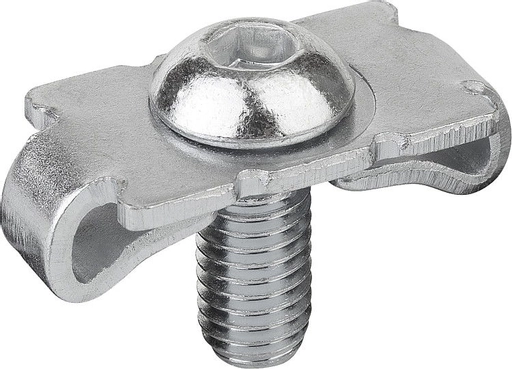

Connecting Set. M8 Thread. 8mm Slot Width.

Item Code: K1031.08

Connecting Set. M8 Thread. 8mm Slot Width.

Item Code: K1031.08

Connecting Set. M8 Thread. 8mm Slot Width.

Material:
Steel.

Version:
galvanized.

Note:

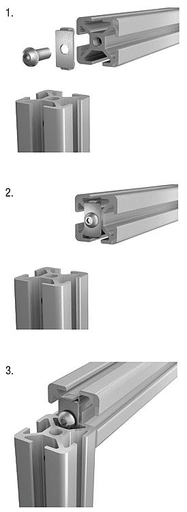

The connecting sets are used for connecting two aluminium profiles at right angles. The connection is non-rotating. For larger profiles several connecting sets can be mounted on the end for greater strength

Low workload. Cut a thread in the end face core hole. Drill a through hole for tightening the screw in the opposing profile.

Quick Links

100 in stock

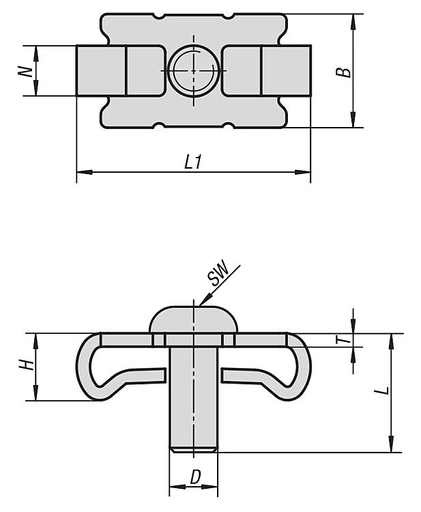

B: 17

D: M8

H: 9.5

L: 20

L1: 35

N: 8

Slot width: 8

SW: 5

T: 2

Was £1.05 Save 49% £0.53 ea. Excl VAT Was £1.26 Save 49% £0.64 ea. Inc VAT
