K1025 - Heavy Duty Slot Nut For Aluminium Profiles

List view Grid view
K1025 - Heavy Duty Slot Nut For Aluminium Profiles

Material:
Steel.

Version:
Electro zinc-plated.

Note:
Suitable for high load connections. Since the key passes to the slot form of the profile, forces are transferred to the profile. The total height allows more threads to be engaged. The slot key can only be inserted into the profile slot from the end. The spring-loaded ball allows the slot key to be fixated anywhere in the profile slot.

Twist In Slot For Aluminium Profile.

K1025 - Heavy Duty Slot Nut For Aluminium Profiles

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

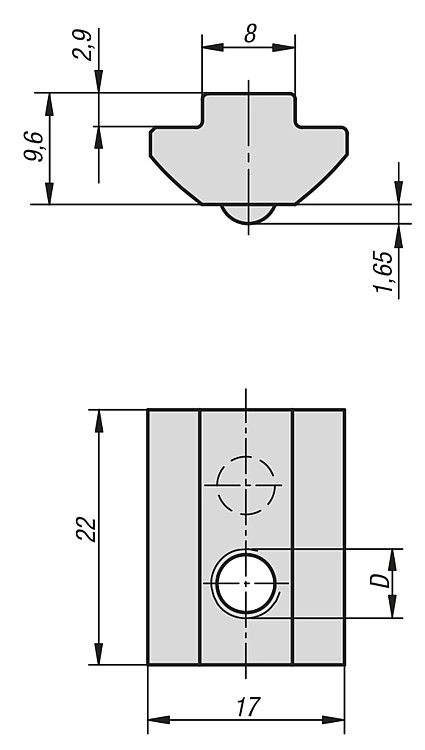

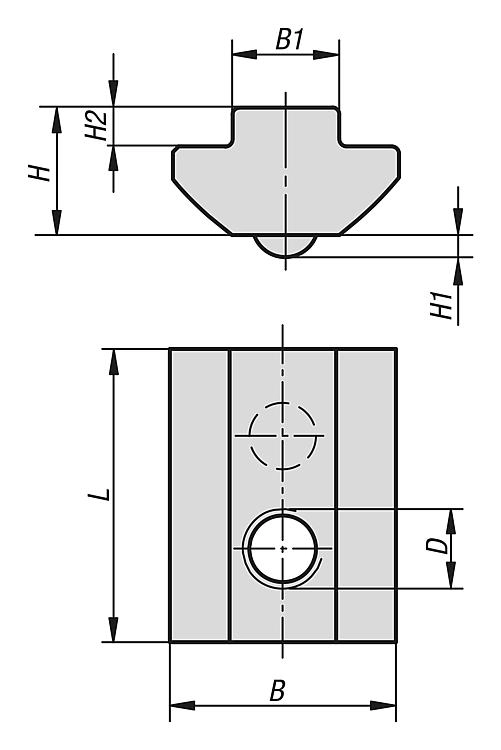

B B1 D H H1 H2 L Slot width Price (Exc. Tax) Stock Qty basket

Filters

K1025.0804
View product
17 8 M4 9,6 1,65 2,9 22 8
£1.41
0
K1025.0805
View product
17 8 M5 9,6 1,65 2,9 22 8
£1.41
0
K1025.0806
View product
17 8 M6 9,6 1,65 2,9 22 8
£1.41
0
K1025.0808
View product
17 8 M8 9,6 1,65 2,9 22 8
£1.41
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K1025.0804

Heavy Duty Slot Nut For Aluminium Profile. M4 Thread. 8mm Slot Width.

£1.41  Excl VAT £1.69  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1025.0805

Heavy Duty Slot Nut For Aluminium Profile. M5 Thread. 8mm Slot Width.

£1.41  Excl VAT £1.69  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1025.0806

Heavy Duty Slot Nut For Aluminium Profile. M6 Thread. 8mm Slot Width.

£1.41  Excl VAT £1.69  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1025.0808

Heavy Duty Slot Nut For Aluminium Profile. M8 Thread. 8mm Slot Width.

£1.41  Excl VAT £1.69  Inc VAT

Price breaks available

Text

Qty
