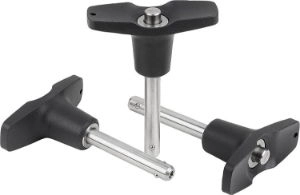

K0792 - Ball Lock Pins With T-Grip Self-Locking In Plastic & Stainless Steel

K0792 - Ball Lock Pins With T-Grip Self-Locking In Plastic & Stainless Steel

List view Grid view

Material:

Grip thermoplastic.
Push button 1.4305 stainless steel.
Pin 1.4305 stainless steel.
Balls 1.4125 stainless steel.
Spring 1.4310 stainless steel wire.

Version:
Grip black grey or traffic red RAL 3020.
Stainless steel bright.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely. If required, the ball lock pins can be fitted with a retaining cable.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin With T Grip. 16mm Pin Diameter. 50mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

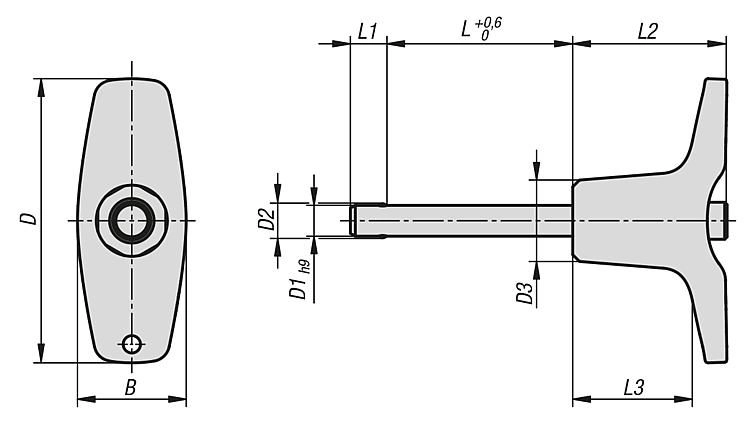

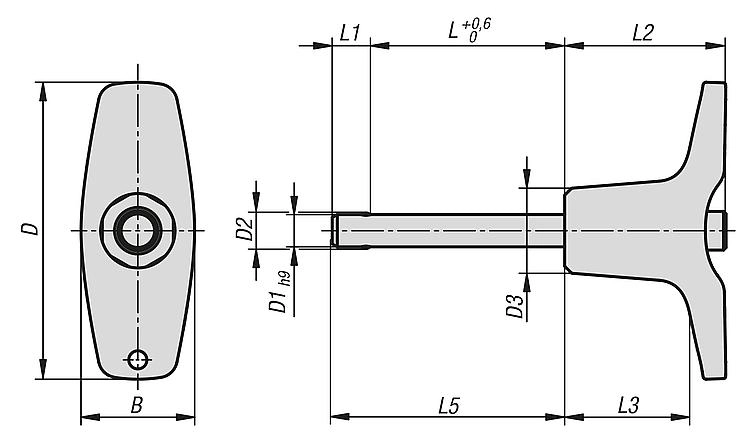

	B	D	D1	D2	D3	L	L1	L2	L3	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0792.204605010 View product	17,6	46	5	5,5	13,2	10	5,9	25	19,4	15,9	5	£17.25	0
K0792.204605015 View product	17,6	46	5	5,5	13,2	15	5,9	25	19,4	20,9	5	£17.25	0
K0792.204605020 View product	17,6	46	5	5,5	13,2	20	5,9	25	19,4	25,9	5	£17.25	0
K0792.204605025 View product	17,6	46	5	5,5	13,2	25	5,9	25	19,4	30,9	5	£17.25	0
K0792.204605030 View product	17,6	46	5	5,5	13,2	30	5,9	25	19,4	35,9	5	£18.30	0
K0792.204606010 View product	17,6	46	6	6,85	13,2	10	6,8	25	19,4	16,8	6	£17.33	0
K0792.204606015 View product	17,6	46	6	6,85	13,2	15	6,8	25	19,4	21,8	6	£17.33	0
K0792.204606020 View product	17,6	46	6	6,85	13,2	20	6,8	25	19,4	26,8	6	£17.33	0
K0792.204606025 View product	17,6	46	6	6,85	13,2	25	6,8	25	19,4	31,8	6	£17.33	0
K0792.204606030 View product	17,6	46	6	6,85	13,2	30	6,8	25	19,4	36,8	6	£18.30	0
K0792.204606035 View product	17,6	46	6	6,85	13,2	35	6,8	25	19,4	41,8	6	£18.30	0
K0792.204606040 View product	17,6	46	6	6,85	13,2	40	6,8	25	19,4	46,8	6	£18.30	0
K0792.204606045 View product	17,6	46	6	6,85	13,2	45	6,8	25	19,4	51,8	6	£18.30	0
K0792.204606050 View product	17,6	46	6	6,85	13,2	50	6,8	25	19,4	56,8	6	£18.30	0
K0792.206308020 View product	23	62,9	8	9,5	17,3	20	7,8	33	24,4	27,8	8	£18.84	0
K0792.206308025 View product	23	62,9	8	9,5	17,3	25	7,8	33	24,4	32,8	8	£18.84	0
K0792.206308030 View product	23	62,9	8	9,5	17,3	30	7,8	33	24,4	37,8	8	£20.21	0
K0792.206308035 View product	23	62,9	8	9,5	17,3	35	7,8	33	24,4	42,8	8	£20.21	0
K0792.206308040 View product	23	62,9	8	9,5	17,3	40	7,8	33	24,4	47,8	8	£20.21	0
K0792.206308045 View product	23	62,9	8	9,5	17,3	45	7,8	33	24,4	52,8	8	£20.21	0
K0792.206308050 View product	23	62,9	8	9,5	17,3	50	7,8	33	24,4	57,8	8	£20.21	0
K0792.206310020 View product	23	62,9	10	12	17,3	20	8,9	33	24,4	28,9	10	£29.30	0
K0792.206310025 View product	23	62,9	10	12	17,3	25	8,9	33	24,4	33,9	10	£29.30	0
K0792.206310030 View product	23	62,9	10	12	17,3	30	8,9	33	24,4	38,9	10	£30.53	0
K0792.206310035 View product	23	62,9	10	12	17,3	35	8,9	33	24,4	43,9	10	£30.53	0
K0792.206310040 View product	23	62,9	10	12	17,3	40	8,9	33	24,4	48,9	10	£30.53	0
K0792.206310045 View product	23	62,9	10	12	17,3	45	8,9	33	24,4	53,9	10	£30.53	0
K0792.206310050 View product	23	62,9	10	12	17,3	50	8,9	33	24,4	58,9	10	£30.53	0
K0792.206310060 View product	23	62,9	10	12	17,3	60	8,9	33	24,4	68,9	10	£32.14	0
K0792.208212025 View product	33	81,8	12	14,5	26,3	25	9,9	39,5	28,8	34,9	12	£29.60	0
K0792.208212030 View product	33	81,8	12	14,5	26,3	30	9,9	39,5	28,8	39,9	12	£31.19	0
K0792.208212035 View product	33	81,8	12	14,5	26,3	35	9,9	39,5	28,8	44,9	12	£31.19	1
K0792.208212040 View product	33	81,8	12	14,5	26,3	40	9,9	39,5	28,8	49,9	12	£31.19	0
K0792.208212045 View product	33	81,8	12	14,5	26,3	45	9,9	39,5	28,8	54,9	12	£31.19	0
K0792.208212050 View product	33	81,8	12	14,5	26,3	50	9,9	39,5	28,8	59,9	12	£31.19	0
K0792.208212060 View product	33	81,8	12	14,5	26,3	60	9,9	39,5	28,8	69,9	12	£32.78	0
K0792.208212070 View product	33	81,8	12	14,5	26,3	70	9,9	39,5	28,8	79,9	12	£32.78	0
K0792.208212080 View product	33	81,8	12	14,5	26,3	80	9,9	39,5	28,8	89,9	12	£34.21	0
K0792.208216030 View product	33	81,8	16	19	26,3	30	13,1	39,5	28,8	43,1	16	£50.12	0
K0792.208216035 View product	33	81,8	16	19	26,3	35	13,1	39,5	28,8	48,1	16	£50.90	0
K0792.208216040 View product	33	81,8	16	19	26,3	40	13,1	39,5	28,8	53,1	16	£50.90	0
K0792.208216045 View product	33	81,8	16	19	26,3	45	13,1	39,5	28,8	58,1	16	£50.90	0
K0792.208216050 View product	33	81,8	16	19	26,3	50	13,1	39,5	28,8	63,1	16	£50.90	0
K0792.208216060 View product	33	81,8	16	19	26,3	60	13,1	39,5	28,8	73,1	16	£54.11	0
K0792.208216070 View product	33	81,8	16	19	26,3	70	13,1	39,5	28,8	83,1	16	£54.11	0
K0792.208216080 View product	33	81,8	16	19	26,3	80	13,1	39,5	28,8	93,1	16	£57.26	0
