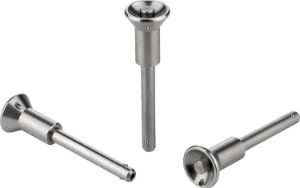

K0791 - Ball Lock Pins With Mushroom Grip Self-Locking In Stainless Steel

K0791 - Ball Lock Pins With Mushroom Grip Self-Locking In Stainless Steel

List view Grid view

Material:

Mushroom knob and push button stainless steel 1.4305.
Pin stainless steel 1.4305.
Balls stainless teel 1.4125.
Compression spring stainless steel 1.4310.

Version:
Bright.

Note:
Ball lock pins are used for easy fastening or joining of components.

The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin With Mushroom Grip. 6mm Pin Diameter. 10mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

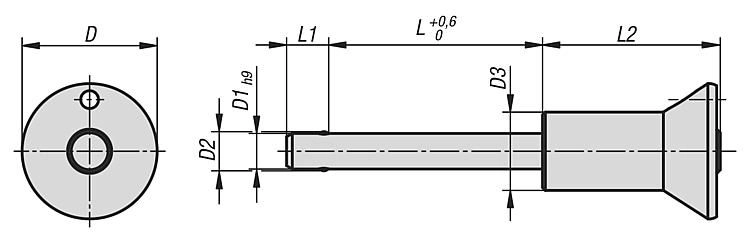

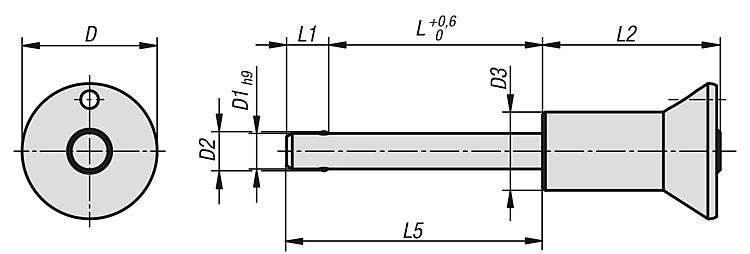

	D	D1	D2	D3	L	L1	L2	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0791.01905010 View product	19	5	5,5	11	10	5,9	25	15,9	5	£19.71	0
K0791.01905015 View product	19	5	5,5	11	15	5,9	25	20,9	5	£19.71	0
K0791.01905020 View product	19	5	5,5	11	20	5,9	25	25,9	5	£19.71	0
K0791.01905025 View product	19	5	5,5	11	25	5,9	25	30,9	5	£19.71	0
K0791.01905030 View product	19	5	5,5	11	30	5,9	25	35,9	5	£21.09	0
K0791.01906010 View product	19	6	6,85	11	10	6,8	25	16,8	6	£19.93	0
K0791.01906015 View product	19	6	6,85	11	15	6,8	25	21,8	6	£19.93	0
K0791.01906020 View product	19	6	6,85	11	20	6,8	25	26,8	6	£19.93	0
K0791.01906025 View product	19	6	6,85	11	25	6,8	25	31,8	6	£19.93	0
K0791.01906030 View product	19	6	6,85	11	30	6,8	25	36,8	6	£21.16	0
K0791.01906035 View product	19	6	6,85	11	35	6,8	25	41,8	6	£21.16	0
K0791.01906040 View product	19	6	6,85	11	40	6,8	25	46,8	6	£21.16	0
K0791.01906045 View product	19	6	6,85	11	45	6,8	25	51,8	6	£21.16	0
K0791.01906050 View product	19	6	6,85	11	50	6,8	25	56,8	6	£21.16	0
K0791.02508020 View product	25	8	9,5	14	20	7,8	33	27,8	8	£21.70	0
K0791.02508025 View product	25	8	9,5	14	25	7,8	33	32,8	8	£21.70	0
K0791.02508030 View product	25	8	9,5	14	30	7,8	33	37,8	8	£22.86	0
K0791.02508035 View product	25	8	9,5	14	35	7,8	33	42,8	8	£22.86	0
K0791.02508040 View product	25	8	9,5	14	40	7,8	33	47,8	8	£22.86	0
K0791.02508045 View product	25	8	9,5	14	45	7,8	33	52,8	8	£22.86	0
K0791.02508050 View product	25	8	9,5	14	50	7,8	33	57,8	8	£22.86	0
K0791.02510020 View product	25	10	12	14	20	8,9	33	28,9	10	£25.64	0
K0791.02510025 View product	25	10	12	14	25	8,9	33	33,9	10	£25.64	0
K0791.02510030 View product	25	10	12	14	30	8,9	33	38,9	10	£26.92	0
K0791.02510035 View product	25	10	12	14	35	8,9	33	43,9	10	£26.92	0
K0791.02510040 View product	25	10	12	14	40	8,9	33	48,9	10	£26.92	0
K0791.02510045 View product	25	10	12	14	45	8,9	33	53,9	10	£26.92	0
K0791.02510050 View product	25	10	12	14	50	8,9	33	58,9	10	£26.92	0
K0791.02510060 View product	25	10	12	14	60	8,9	33	68,9	10	£28.48	0
K0791.03512025 View product	35	12	14,5	22	25	9,9	39,5	34,9	12	£29.93	0
K0791.03512030 View product	35	12	14,5	22	30	9,9	39,5	39,9	12	£31.39	0
K0791.03512035 View product	35	12	14,5	22	35	9,9	39,5	44,9	12	£31.39	0
K0791.03512040 View product	35	12	14,5	22	40	9,9	39,5	49,9	12	£31.39	0
K0791.03512045 View product	35	12	14,5	22	45	9,9	39,5	54,9	12	£31.39	0
K0791.03512050 View product	35	12	14,5	22	50	9,9	39,5	59,9	12	£31.39	0
K0791.03512060 View product	35	12	14,5	22	60	9,9	39,5	69,9	12	£33.00	0
K0791.03512070 View product	35	12	14,5	22	70	9,9	39,5	79,9	12	£33.00	0
K0791.03512080 View product	35	12	14,5	22	80	9,9	39,5	89,9	12	£34.63	0
K0791.03516030 View product	35	16	19	22	30	13,1	39,5	43,1	16	£49.23	0
K0791.03516035 View product	35	16	19	22	35	13,1	39,5	48,1	16	£49.23	0
K0791.03516040 View product	35	16	19	22	40	13,1	39,5	53,1	16	£49.23	0
K0791.03516045 View product	35	16	19	22	45	13,1	39,5	58,1	16	£49.23	0
K0791.03516050 View product	35	16	19	22	50	13,1	39,5	63,1	16	£49.23	0
K0791.03516060 View product	35	16	19	22	60	13,1	39,5	73,1	16	£50.94	0
K0791.03516070 View product	35	16	19	22	70	13,1	39,5	83,1	16	£50.94	0
K0791.03516080 View product	35	16	19	22	80	13,1	39,5	93,1	16	£51.56	0
