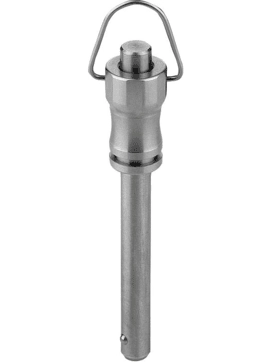

K0790 Ball Lock Pins Self-Locking In Stainless Steel Form B

K0790 Ball Lock Pins Self-Locking In Stainless Steel Form B

List view Grid view

Material:

Grip and push button 1.4305 stainless steel.
Pin 1.4305 stainless steel.
Balls 1.4125 stainless steel.
Spring and hanger 1.4310 stainless steel wire.

Version:
Bright.

Note:
Ball lock pins are used for easy fastening or joining of components.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin. 5mm Pin Diameter. 15mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

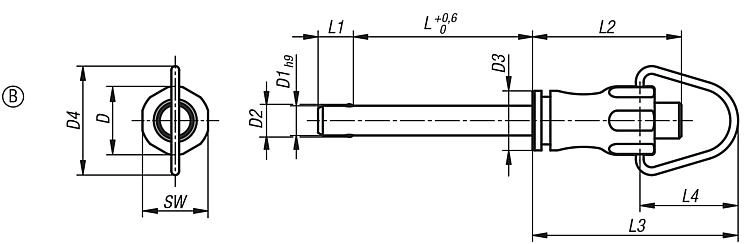

	D	D1	D2	D3	D4	Form	L	L1	L2	L3	L4	L5	Receiving hole H11	SW	Price (Exc. Tax)	Stock
Filters
K0790.101205010 View product	11,5	5	5,5	10	18,3	B	10	5,9	25	34,6	16,6	15,9	5	11	£14.72	0
K0790.101205015 View product	11,5	5	5,5	10	18,3	B	15	5,9	25	34,6	16,6	20,9	5	11	£14.72	0
K0790.101205020 View product	11,5	5	5,5	10	18,3	B	20	5,9	25	34,6	16,6	25,9	5	11	£14.72	0
K0790.101205025 View product	11,5	5	5,5	10	18,3	B	25	5,9	25	34,6	16,6	30,9	5	11	£14.72	0
K0790.101205030 View product	11,5	5	5,5	10	18,3	B	30	5,9	25	34,6	16,6	35,9	5	11	£15.45	0
K0790.101206010 View product	11,5	6	6,85	10	18,3	B	10	6,8	25	34,6	16,6	16,8	6	11	£14.79	5
K0790.101206015 View product	11,5	6	6,85	10	18,3	B	15	6,8	25	34,6	16,6	21,8	6	11	£14.79	0
K0790.101206020 View product	11,5	6	6,85	10	18,3	B	20	6,8	25	34,6	16,6	26,8	6	11	£14.79	0
K0790.101206025 View product	11,5	6	6,85	10	18,3	B	25	6,8	25	34,6	16,6	31,8	6	11	£14.79	0
K0790.101206030 View product	11,5	6	6,85	10	18,3	B	30	6,8	25	34,6	16,6	36,8	6	11	£16.31	0
K0790.101206035 View product	11,5	6	6,85	10	18,3	B	35	6,8	25	34,6	16,6	41,8	6	11	£16.31	0
K0790.101206040 View product	11,5	6	6,85	10	18,3	B	40	6,8	25	34,6	16,6	46,8	6	11	£16.31	0
K0790.101206045 View product	11,5	6	6,85	10	18,3	B	45	6,8	25	34,6	16,6	51,8	6	11	£16.31	0
K0790.101206050 View product	11,5	6	6,85	10	18,3	B	50	6,8	25	34,6	16,6	56,8	6	11	£16.31	0
K0790.101508020 View product	15,5	8	9,5	13,5	24	B	20	7,8	33	46,7	22,7	27,8	8	15	£15.77	0
K0790.101508025 View product	15,5	8	9,5	13,5	24	B	25	7,8	33	46,7	22,7	32,8	8	15	£15.77	0
K0790.101508030 View product	15,5	8	9,5	13,5	24	B	30	7,8	33	46,7	22,7	37,8	8	15	£17.49	0
K0790.101508035 View product	15,5	8	9,5	13,5	24	B	35	7,8	33	46,7	22,7	42,8	8	15	£17.49	0
K0790.101508040 View product	15,5	8	9,5	13,5	24	B	40	7,8	33	46,7	22,7	47,8	8	15	£17.49	0
K0790.101508045 View product	15,5	8	9,5	13,5	24	B	45	7,8	33	46,7	22,7	52,8	8	15	£17.49	0
K0790.101508050 View product	15,5	8	9,5	13,5	24	B	50	7,8	33	46,7	22,7	57,8	8	15	£17.49	0
K0790.101510020 View product	15,5	10	12	13,5	24	B	20	8,9	33	46,7	22,7	28,9	10	15	£23.63	4
K0790.101510025 View product	15,5	10	12	13,5	24	B	25	8,9	33	46,7	22,7	33,9	10	15	£23.63	0
K0790.101510030 View product	15,5	10	12	13,5	24	B	30	8,9	33	46,7	22,7	38,9	10	15	£24.83	0
K0790.101510035 View product	15,5	10	12	13,5	24	B	35	8,9	33	46,7	22,7	43,9	10	15	£24.83	0
K0790.101510040 View product	15,5	10	12	13,5	24	B	40	8,9	33	46,7	22,7	48,9	10	15	£24.83	0
K0790.101510045 View product	15,5	10	12	13,5	24	B	45	8,9	33	46,7	22,7	53,9	10	15	£24.83	0
K0790.101510050 View product	15,5	10	12	13,5	24	B	50	8,9	33	46,7	22,7	58,9	10	15	£24.83	0
K0790.101510060 View product	15,5	10	12	13,5	24	B	60	8,9	33	46,7	22,7	68,9	10	15	£26.11	0
K0790.102112025 View product	22	12	14,5	20	33	B	25	9,9	39,5	59,3	30,3	34,9	12	21	£24.26	0
K0790.102112030 View product	22	12	14,5	20	33	B	30	9,9	39,5	59,3	30,3	39,9	12	21	£25.30	0
K0790.102112035 View product	22	12	14,5	20	33	B	35	9,9	39,5	59,3	30,3	44,9	12	21	£25.30	0
K0790.102112040 View product	22	12	14,5	20	33	B	40	9,9	39,5	59,3	30,3	49,9	12	21	£25.30	0
K0790.102112045 View product	22	12	14,5	20	33	B	45	9,9	39,5	59,3	30,3	54,9	12	21	£25.30	0
K0790.102112050 View product	22	12	14,5	20	33	B	50	9,9	39,5	59,3	30,3	59,9	12	21	£25.30	0
K0790.102112060 View product	22	12	14,5	20	33	B	60	9,9	39,5	59,3	30,3	69,9	12	21	£26.43	0
K0790.102112070 View product	22	12	14,5	20	33	B	70	9,9	39,5	59,3	30,3	79,9	12	21	£27.06	0
K0790.102112080 View product	22	12	14,5	20	33	B	80	9,9	39,5	59,3	30,3	89,9	12	21	£27.06	0
K0790.102116030 View product	22	16	19	20	33	B	30	13,1	39,5	59,3	30,3	43,1	16	21	£42.41	0
K0790.102116035 View product	22	16	19	20	33	B	35	13,1	39,5	59,3	30,3	48,1	16	21	£42.41	0
K0790.102116040 View product	22	16	19	20	33	B	40	13,1	39,5	59,3	30,3	53,1	16	21	£42.41	1
K0790.102116045 View product	22	16	19	20	33	B	45	13,1	39,5	59,3	30,3	58,1	16	21	£42.41	0
K0790.102116050 View product	22	16	19	20	33	B	50	13,1	39,5	59,3	30,3	63,1	16	21	£42.41	0
K0790.102116060 View product	22	16	19	20	33	B	60	13,1	39,5	59,3	30,3	73,1	16	21	£45.67	0
K0790.102116070 View product	22	16	19	20	33	B	70	13,1	39,5	59,3	30,3	83,1	16	21	£45.67	0
K0790.102116080 View product	22	16	19	20	33	B	80	13,1	39,5	59,3	30,3	93,1	16	21	£48.45	0
