K0790 Ball Lock Pins Self-Locking In Stainless Steel Form A

K0790 Ball Lock Pins Self-Locking In Stainless Steel Form A

List view Grid view

Material:

Grip and push button stainless steel 1.4305.
Pin stainless steel 1.4305.
Balls stainless steel 1.4125.
Compression spring stainless steel 1.4310.

Version:
Bright.

Note:

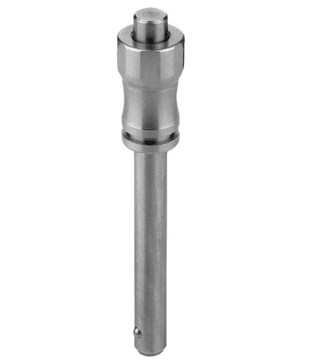

Ball lock pins are used for easy fastening or joining of components.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Ball Lock Pin. 10mm Pin Diameter. 25mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

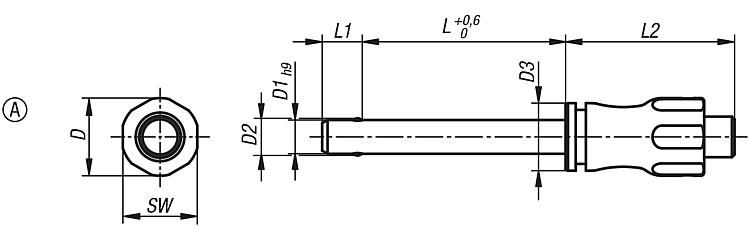

	D	D1	D2	D3	Form	L	L1	L2	L5	Receiving hole H11	SW	Price (Exc. Tax)	Stock
Filters
K0790.001205010 View product	11,5	5	5,5	10	A	10	5,9	25	15,9	5	11	£13.91	0
K0790.001205015 View product	11,5	5	5,5	10	A	15	5,9	25	20,9	5	11	£13.91	0
K0790.001205020 View product	11,5	5	5,5	10	A	20	5,9	25	25,9	5	11	£13.91	0
K0790.001205025 View product	11,5	5	5,5	10	A	25	5,9	25	30,9	5	11	£13.91	0
K0790.001205030 View product	11,5	5	5,5	10	A	30	5,9	25	35,9	5	11	£14.65	0
K0790.001206010 View product	11,5	6	6,85	10	A	10	6,8	25	16,8	6	11	£14.01	0
K0790.001206015 View product	11,5	6	6,85	10	A	15	6,8	25	21,8	6	11	£14.01	0
K0790.001206020 View product	11,5	6	6,85	10	A	20	6,8	25	26,8	6	11	£14.01	0
K0790.001206025 View product	11,5	6	6,85	10	A	25	6,8	25	31,8	6	11	£14.01	0
K0790.001206030 View product	11,5	6	6,85	10	A	30	6,8	25	36,8	6	11	£15.52	0
K0790.001206035 View product	11,5	6	6,85	10	A	35	6,8	25	41,8	6	11	£15.52	0
K0790.001206040 View product	11,5	6	6,85	10	A	40	6,8	25	46,8	6	11	£15.52	0
K0790.001206045 View product	11,5	6	6,85	10	A	45	6,8	25	51,8	6	11	£15.52	0
K0790.001206050 View product	11,5	6	6,85	10	A	50	6,8	25	56,8	6	11	£15.52	0
K0790.001508020 View product	15,5	8	9,5	13,5	A	20	7,8	33	27,8	8	15	£14.95	0
K0790.001508025 View product	15,5	8	9,5	13,5	A	25	7,8	33	32,8	8	15	£14.95	0
K0790.001508030 View product	15,5	8	9,5	13,5	A	30	7,8	33	37,8	8	15	£16.71	0
K0790.001508035 View product	15,5	8	9,5	13,5	A	35	7,8	33	42,8	8	15	£16.71	0
K0790.001508040 View product	15,5	8	9,5	13,5	A	40	7,8	33	47,8	8	15	£16.71	0
K0790.001508045 View product	15,5	8	9,5	13,5	A	45	7,8	33	52,8	8	15	£16.71	0
K0790.001508050 View product	15,5	8	9,5	13,5	A	50	7,8	33	57,8	8	15	£16.71	0
K0790.001510020 View product	15,5	10	12	13,5	A	20	8,9	33	28,9	10	15	£22.84	0
K0790.001510025 View product	15,5	10	12	13,5	A	25	8,9	33	33,9	10	15	£22.84	0
K0790.001510030 View product	15,5	10	12	13,5	A	30	8,9	33	38,9	10	15	£24.03	0
K0790.001510035 View product	15,5	10	12	13,5	A	35	8,9	33	43,9	10	15	£24.03	0
K0790.001510040 View product	15,5	10	12	13,5	A	40	8,9	33	48,9	10	15	£24.03	0
K0790.001510045 View product	15,5	10	12	13,5	A	45	8,9	33	53,9	10	15	£24.03	0
K0790.001510050 View product	15,5	10	12	13,5	A	50	8,9	33	58,9	10	15	£24.03	0
K0790.001510060 View product	15,5	10	12	13,5	A	60	8,9	33	68,9	10	15	£25.30	0
K0790.002112025 View product	22	12	14,5	20	A	25	9,9	39,5	34,9	12	21	£23.45	0
K0790.002112030 View product	22	12	14,5	20	A	30	9,9	39,5	39,9	12	21	£24.50	0
K0790.002112035 View product	22	12	14,5	20	A	35	9,9	39,5	44,9	12	21	£24.50	0
K0790.002112040 View product	22	12	14,5	20	A	40	9,9	39,5	49,9	12	21	£24.50	0
K0790.002112045 View product	22	12	14,5	20	A	45	9,9	39,5	54,9	12	21	£24.50	0
K0790.002112050 View product	22	12	14,5	20	A	50	9,9	39,5	59,9	12	21	£24.50	0
K0790.002112060 View product	22	12	14,5	20	A	60	9,9	39,5	69,9	12	21	£25.64	0
K0790.002112070 View product	22	12	14,5	20	A	70	9,9	39,5	79,9	12	21	£26.26	0
K0790.002112080 View product	22	12	14,5	20	A	80	9,9	39,5	89,9	12	21	£26.26	0
K0790.002116030 View product	22	16	19	20	A	30	13,1	39,5	43,1	16	21	£41.60	0
K0790.002116035 View product	22	16	19	20	A	35	13,1	39,5	48,1	16	21	£41.60	0
K0790.002116040 View product	22	16	19	20	A	40	13,1	39,5	53,1	16	21	£41.60	0
K0790.002116045 View product	22	16	19	20	A	45	13,1	39,5	58,1	16	21	£41.60	0
K0790.002116050 View product	22	16	19	20	A	50	13,1	39,5	63,1	16	21	£41.60	0
K0790.002116060 View product	22	16	19	20	A	60	13,1	39,5	73,1	16	21	£44.88	0
K0790.002116070 View product	22	16	19	20	A	70	13,1	39,5	83,1	16	21	£44.88	0
K0790.002116080 View product	22	16	19	20	A	80	13,1	39,5	93,1	16	21	£47.66	0
