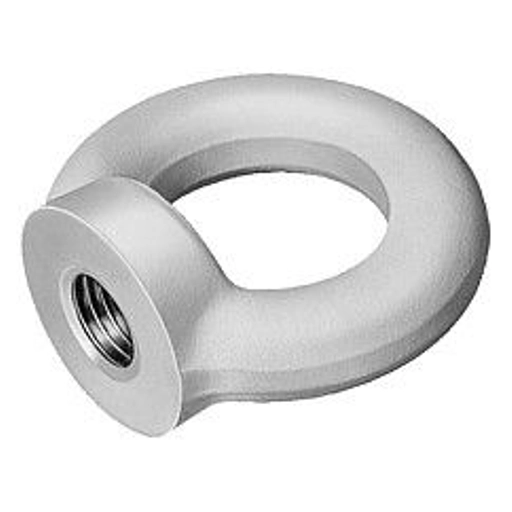

Lifting Eye Bolt. M10 Thread. Stainless Steel. DIN582.

Item Code: K0768.110

Lifting Eye Bolt. M10 Thread. Stainless Steel. DIN582.

Item Code: K0768.110

Lifting Eye Bolt. M10 Thread. Stainless Steel. DIN582.

Material:
Hardened steel 1.0401 or stainless steel 1.4301 Surface finish:
Drop forged Note:
These ringnuts are suitable for security cordons, fences, and similar general use.
When screwed in the contact face must lay flat and the ring must be at right angles to the receiving surface.
The rings should not be used for safety relevant applications.

Quick Links

Dispatch by 09/06/25

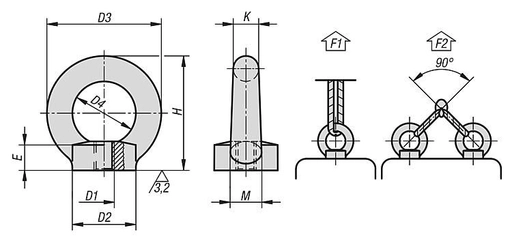

D3: 45

D1: M10

H: 45

D2: 25

D4: 25

DIN: DIN 582

K: 10

E: 10

M: 12

F1 max. kN: 2,3

F2 max. kN: 1,7

Permissible load kg: 173,4

£8.13 ea. Excl VAT £9.76 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£6.67	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D3	45
D1	M10
H	45
D2	25
D4	25
DIN	DIN 582
K	10
E	10
M	12
F1 max. kN	2,3
F2 max. kN	1,7
Permissible load kg	173,4

Downloads

STP

Lifting Eye Bolt. M10 Thread. Stainless Steel. DIN582.

Lifting Eye Bolt. M10 Thread. Stainless Steel. DIN582.
