Tommy Bar With Thrust Screw. M20x90mm Loose T Bar. Steel.

Item Code: K0756.220X90

Tommy Bar With Thrust Screw. M20x90mm Loose T Bar. Steel.

Item Code: K0756.220X90

Tommy Bar With Thrust Screw. M20x90mm Loose T Bar. Steel.

Material:
Steel Surface finish:
Black oxide finish; thrust end hardened. Note:
By the thrust screws with loose spindle the spindle is held in any desired position by a spring in the screw body. End stops prevent the bar falling out. By the fixed handles the T-bar is pressed in.

Quick Links

Dispatch by 03/07/25

D1: M20

D2: 30

D3: 16

D4: 15,5

DIN: DIN 6306

G: M20

L1: 90

L2: 45

L3: 140

L4: 5,6

L5: 80

Z2: 14

£36.73 ea. Excl VAT £44.08 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£31.59	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

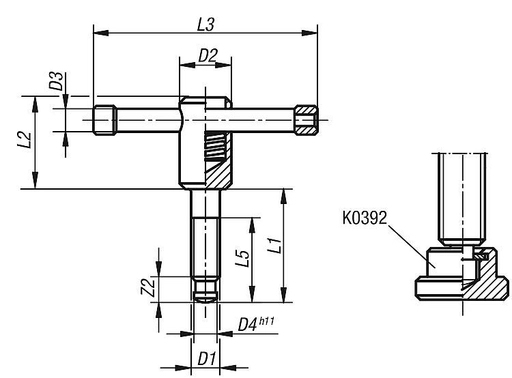

Product Dimensions

D1	M20
D2	30
D3	16
D4	15,5
DIN	DIN 6306
G	M20
L1	90
L2	45
L3	140
L4	5,6
L5	80
Z2	14

Downloads

STP

Tommy Bar With Thrust Screw. M20x90mm Loose T Bar. Steel.

Tommy Bar With Thrust Screw. M20x90mm Loose T Bar. Steel.
