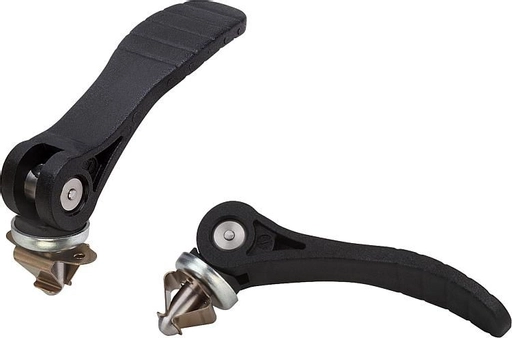

Quick Lock Cam Lever. 71.5mm Handle Length. Thickness Of Material 7.9-8.3mm

Item Code: K0751.121107X8

Quick Lock Cam Lever. 71.5mm Handle Length. Thickness Of Material 7.9-8.3mm

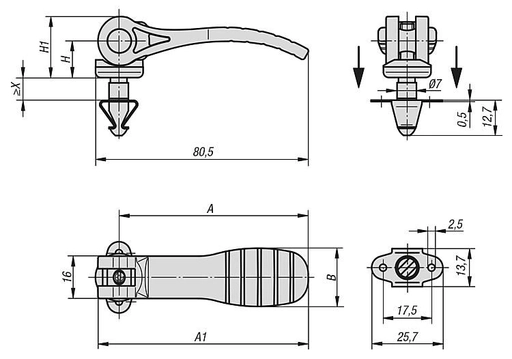

Cam-lever-with-quick-lock-Drawing_1200x1200.jpg?

Item Code: K0751.121107X8

Quick Lock Cam Lever. 71.5mm Handle Length. Thickness Of Material 7.9-8.3mm

Material, version:
Handle and thrust washer fibreglass reinforced PA66 plastic, black.
Hinge pins 1.4305 bright stainless steel. Locking pin 1.0718 blue passivated steel.
Spring clip passivated 1.4310 stainless steel.
Note:

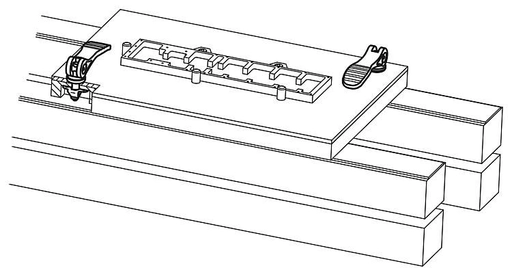

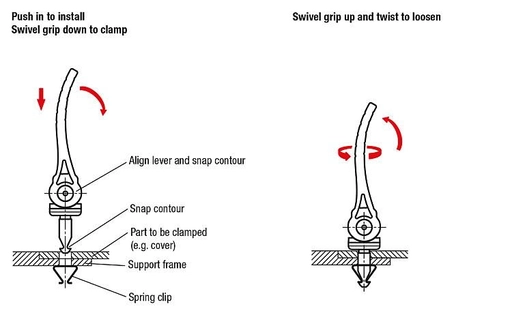

A sheet metal element can be positioned by engaging the spring clip. The sheet metal element is then clamped using the handle.
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.

Quick Links

Dispatch by 09/06/25

A: 71,5

B: 22

H: 14

H1: 23,4

A1: 79,6

Clamping force ca. N: 500

X Material thickness: 7,9 - 8,3

£18.13 ea. Excl VAT £21.76 ea. Inc VAT
