K0746 - Ball Locking Pins In Stainless Steel With Grip Ring Hole Size 5-16mm

K0746 - Ball Locking Pins In Stainless Steel With Grip Ring Hole Size 5-16mm

List view Grid view

Material:
Pin stainless steel 1.4542.
Head and push button stainless steel 1.4305.
Balls stainless steel 1.4125.
Spring stainless steel.
Grip ring and key ring stainless steel.

Version:
All stainless steel parts passivated.
Pin, hardened to min. 40 HRC.
Balls hardened to 58 +4 HRC.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection. If required, the ball lock pins can be fitted with a retaining cable.

The hardened, high-tensile stainless steel pin permits extreme loads with low wear. Thanks to the high corrosion and acid resistance, they are mainly used in the foodstuff industry, in the chemical and petrochemical industry and as constructional elements in the aerospace industry.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Safety spiral cable K0367.10200
Retaining cable with loop K0367. .....
Key ring K0367.15/19/23
Bushing for ball lock pins K0724....

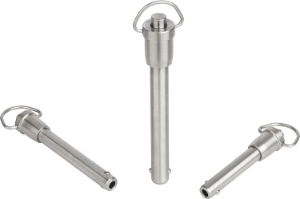

Ball Lock Pin With Ring Grip. 6mm Pin Diameter. 80mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

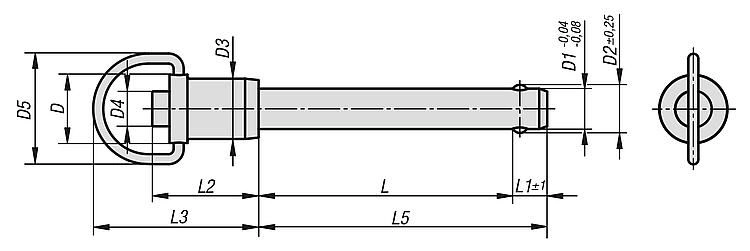

	D	D1	D2	D3	D4	D5	L	L1	L2	L3	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0746.01505010 View product	15	5	5,54	11,9	5,8	29,5	10	6	23,4	36,8	16	5	£26.98	0
K0746.01505015 View product	15	5	5,54	11,9	5,8	29,5	15	6	23,4	36,8	21	5	£26.98	1
K0746.01505020 View product	15	5	5,54	11,9	5,8	29,5	20	6	23,4	36,8	26	5	£26.98	6
K0746.01505025 View product	15	5	5,54	11,9	5,8	29,5	25	6	23,4	36,8	31	5	£26.98	2
K0746.01505030 View product	15	5	5,54	11,9	5,8	29,5	30	6	23,4	36,8	36	5	£27.52	0
K0746.01505035 View product	15	5	5,54	11,9	5,8	29,5	35	6	23,4	36,8	41	5	£27.52	0
K0746.01505040 View product	15	5	5,54	11,9	5,8	29,5	40	6	23,4	36,8	46	5	£27.52	10
K0746.01505045 View product	15	5	5,54	11,9	5,8	29,5	45	6	23,4	36,8	51	5	£27.73	0
K0746.01505050 View product	15	5	5,54	11,9	5,8	29,5	50	6	23,4	36,8	56	5	£27.73	0
K0746.01505060 View product	15	5	5,54	11,9	5,8	29,5	60	6	23,4	36,8	66	5	£30.97	0
K0746.01505070 View product	15	5	5,54	11,9	5,8	29,5	70	6	23,4	36,8	76	5	£30.97	0
K0746.01505080 View product	15	5	5,54	11,9	5,8	29,5	80	6	23,4	36,8	86	5	£30.97	0
K0746.01505090 View product	15	5	5,54	11,9	5,8	29,5	90	6	23,4	36,8	96	5	£32.40	0
K0746.01505100 View product	15	5	5,54	11,9	5,8	29,5	100	6	23,4	36,8	106	5	£36.88	6
K0746.01506010 View product	15	6	6,99	11,9	5,8	29,5	10	7	23,4	36,8	17	6	£24.83	1
K0746.01506015 View product	15	6	6,99	11,9	5,8	29,5	15	7	23,4	36,8	22	6	£24.83	0
K0746.01506020 View product	15	6	6,99	11,9	5,8	29,5	20	7	23,4	36,8	27	6	£26.81	0
K0746.01506025 View product	15	6	6,99	11,9	5,8	29,5	25	7	23,4	36,8	32	6	£26.81	0
K0746.01506030 View product	15	6	6,99	11,9	5,8	29,5	30	7	23,4	36,8	37	6	£28.48	1
K0746.01506035 View product	15	6	6,99	11,9	5,8	29,5	35	7	23,4	36,8	42	6	£28.48	3
K0746.01506040 View product	15	6	6,99	11,9	5,8	29,5	40	7	23,4	36,8	47	6	£28.48	4
K0746.01506045 View product	15	6	6,99	11,9	5,8	29,5	45	7	23,4	36,8	52	6	£30.07	3
K0746.01506050 View product	15	6	6,99	11,9	5,8	29,5	50	7	23,4	36,8	57	6	£30.07	7
K0746.01506060 View product	15	6	6,99	11,9	5,8	29,5	60	7	23,4	36,8	67	6	£31.30	0
K0746.01506070 View product	15	6	6,99	11,9	5,8	29,5	70	7	23,4	36,8	77	6	£31.30	0
K0746.01506080 View product	15	6	6,99	11,9	5,8	29,5	80	7	23,4	36,8	87	6	£31.30	0
K0746.01506090 View product	15	6	6,99	11,9	5,8	29,5	90	7	23,4	36,8	97	6	£32.73	0
K0746.01506100 View product	15	6	6,99	11,9	5,8	29,5	100	7	23,4	36,8	107	6	£34.21	0
K0746.01508010 View product	15	8	9,42	11,9	5,8	29,5	10	8	23,4	36,8	18	8	£28.69	0
K0746.01508015 View product	15	8	9,42	11,9	5,8	29,5	15	8	23,4	36,8	23	8	£28.69	0
K0746.01508020 View product	15	8	9,42	11,9	5,8	29,5	20	8	23,4	36,8	28	8	£28.69	0
K0746.01508025 View product	15	8	9,42	11,9	5,8	29,5	25	8	23,4	36,8	33	8	£28.69	0
K0746.01508030 View product	15	8	9,42	11,9	5,8	29,5	30	8	23,4	36,8	38	8	£30.97	0
K0746.01508035 View product	15	8	9,42	11,9	5,8	29,5	35	8	23,4	36,8	43	8	£30.97	0
K0746.01508040 View product	15	8	9,42	11,9	5,8	29,5	40	8	23,4	36,8	48	8	£33.19	4
K0746.01508045 View product	15	8	9,42	11,9	5,8	29,5	45	8	23,4	36,8	53	8	£33.19	0
K0746.01508050 View product	15	8	9,42	11,9	5,8	29,5	50	8	23,4	36,8	58	8	£33.19	0
K0746.01508060 View product	15	8	9,42	11,9	5,8	29,5	60	8	23,4	36,8	68	8	£35.50	0
K0746.01508070 View product	15	8	9,42	11,9	5,8	29,5	70	8	23,4	36,8	78	8	£35.50	2
K0746.01508080 View product	15	8	9,42	11,9	5,8	29,5	80	8	23,4	36,8	88	8	£35.50	0
K0746.01508090 View product	15	8	9,42	11,9	5,8	29,5	90	8	23,4	36,8	98	8	£36.32	0
K0746.01508100 View product	15	8	9,42	11,9	5,8	29,5	100	8	23,4	36,8	108	8	£36.32	0
K0746.01710015 View product	16,5	10	11,86	14,2	7,4	29,5	15	9	25,7	38,6	24	10	£30.65	0
K0746.01710020 View product	16,5	10	11,86	14,2	7,4	29,5	20	9	25,7	38,6	29	10	£30.65	4
K0746.01710025 View product	16,5	10	11,86	14,2	7,4	29,5	25	9	25,7	38,6	34	10	£30.65	0
K0746.01710030 View product	16,5	10	11,86	14,2	7,4	29,5	30	9	25,7	38,6	39	10	£34.58	0
K0746.01710035 View product	16,5	10	11,86	14,2	7,4	29,5	35	9	25,7	38,6	44	10	£34.58	0
K0746.01710040 View product	16,5	10	11,86	14,2	7,4	29,5	40	9	25,7	38,6	49	10	£34.58	0
