Item Code: K0742.108016X100

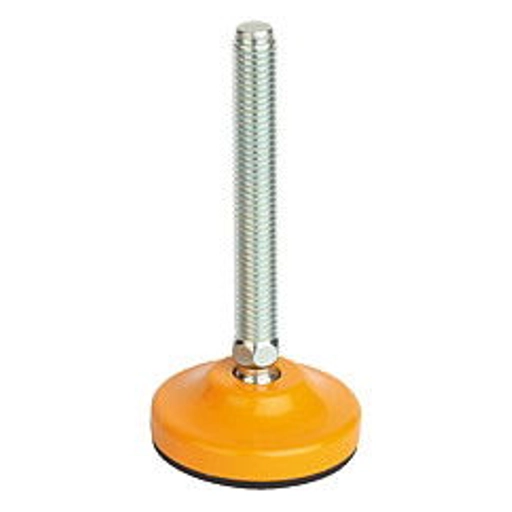

Swivel Foot. 80mm Foot Diameter. M16x100mm Thread. Steel. Anti-Slip Base.

Item Code: K0742.108016X100

Swivel Foot. 80mm Foot Diameter. M16x100mm Thread. Steel. Anti-Slip Base.

Material, surface finish:
Foot plate steel, painted yellow. Threaded spindle galvanized steel.
Anti-slip plate (NBR) 70 shore, black. Note:
High load capacity swivel pads in steel with yellow painted foot, optionally with an anti-slip plate.
The anti-slip plate absorbs vibrations and prevents the swivel pad slipping. The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values. Supplied with matching nut.

Quick Links

7 in stock

B
80
100
M16
19,5
136
33
16
3
30

£25.48  ea. Excl VAT £30.58  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £20.89 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Foot plate steel, painted yellow. Threaded spindle galvanized steel.
Anti-slip plate (NBR) 70 shore, black. Note:
High load capacity swivel pads in steel with yellow painted foot, optionally with an anti-slip plate.
The anti-slip plate absorbs vibrations and prevents the swivel pad slipping. The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values. Supplied with matching nut.

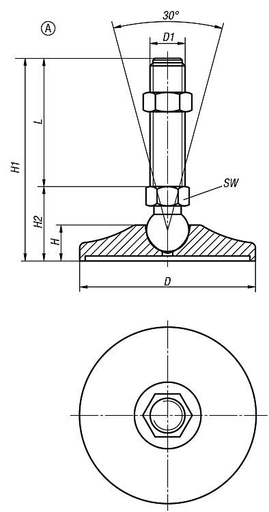

FormB
D80
L100
D1M16
H19,5
H1136
H233
SW16
S3
Load rating max. kN (static load only)30
