Item Code: K0741.08016X143

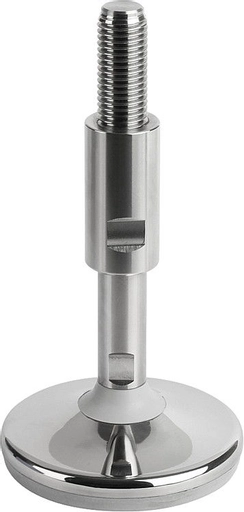

Hygienic Levelling Foot. 80mm Foot Diameter. M16x65mm Thread. Stainless Steel. Rubber Base.

Item Code: K0741.08016X143

Hygienic Levelling Foot. 80mm Foot Diameter. M16x65mm Thread. Stainless Steel. Rubber Base.

Material:
Version:
Foot plate, polished.
Threaded spindle, bright.
Rubber base black.
Rubber seal black.
Note:
The levelling foot has an adjustment sleeve which covers the part of the thread. An O-ring is inserted inside the sleeve to prevent dirt from entering.
EPDM complies with the guidelines specified in the USDA documentation for rubber products.
The stainless steel levelling feet for sterile areas received the Equipment Acceptance Certificate of the USDA (US-Department of Agriculture).
The load values specified in the table are based on a test series in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.

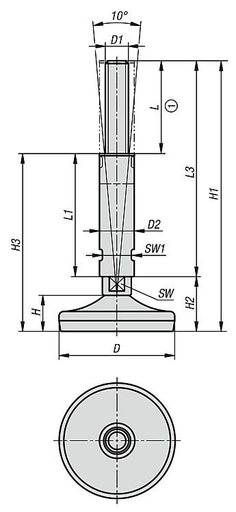

Drawing reference:
1) Adjustment range

Quick Links

Dispatch by 11/06/25

80
65
85
150
M16
25
188
38
65
17
24
123
20
10

£36.82  ea. Excl VAT £44.18  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £33.87 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Version:
Foot plate, polished.
Threaded spindle, bright.
Rubber base black.
Rubber seal black.
Note:
The levelling foot has an adjustment sleeve which covers the part of the thread. An O-ring is inserted inside the sleeve to prevent dirt from entering.
EPDM complies with the guidelines specified in the USDA documentation for rubber products.
The stainless steel levelling feet for sterile areas received the Equipment Acceptance Certificate of the USDA (US-Department of Agriculture).
The load values specified in the table are based on a test series in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.
Drawing reference:
1) Adjustment range
D80
L65
L185
L3150
D1M16
H25
H1188
H238
L265
SW17
D224
H3123
SW120
Load rating , max. kN , (static load only)10
