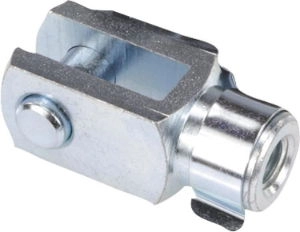

K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16

K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16

List view Grid view

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

K0731 Fork Joint With Snap On Pin RH Thread

K0731 Fork Joint With Snap On Pin LH Thread

Line drawing placeholder

Move drawing here

	A	B	D1	D2	D3	G	L1	L2	L3	L5	L6	Version	Price (Exc. Tax)	Stock
Filters
K0731.03508 View product	8	4	4	M3.5	8	8	21	16	6	15	10	RH thread	£2.87	0
K0731.05101 View product	10	5	5	M5	9	10	26	20	7.5	19	12	LH thread	£2.15	0
K0731.0510 View product	10	5	5	M5	9	10	26	20	7.5	19	12	RH thread	£1.78	16
K0731.06121 View product	12	6	6	M6	10	12	31	24	9	23	14	LH thread	£2.24	0
K0731.0612 View product	12	6	6	M6	10	12	31	24	9	23	14	RH thread	£2.06	0
K0731.08161 View product	16	8	8	M8	14	16	42	32	12	31	19	LH thread	£2.53	0
K0731.0816 View product	16	8	8	M8	14	16	42	32	12	31	19	RH thread	£2.51	0
K0731.08321 View product	16	8	8	M8	14	32	58	48	12	47	19	LH thread	£2.92	0
K0731.0832 View product	16	8	8	M8	14	32	58	48	12	47	19	RH thread	£2.88	0
K0731.10201 View product	20	10	10	M10	18	20	52	40	15	39	23	LH thread	£3.33	0
K0731.10120 View product	20	10	10	M10x1.25	18	20	52	40	15	39	23	RH thread	£3.51	0
K0731.10401 View product	20	10	10	M10	18	40	72	60	15	59	23	LH thread	£3.88	0
K0731.10140 View product	20	10	10	M10x1.25	18	40	72	60	15	59	23	RH thread	£3.99	0
K0731.12241 View product	24	12	12	M12	20	24	62	48	18	47	28	LH thread	£4.75	0
K0731.1020 View product	20	10	10	M10	18	20	52	40	15	39	23	RH thread	£3.18	0
K0731.16321 View product	32	16	16	M16	26	32	83	64	24	62	36	LH thread	£9.07	0
K0731.1040 View product	20	10	10	M10	18	40	72	60	15	59	23	RH thread	£3.62	0
K0731.12124 View product	24	12	12	M12x1.25	20	24	62	48	18	47	28	RH thread	£4.97	0
K0731.12148 View product	24	12	12	M12x1.25	20	48	86	72	18	69	28	RH thread	£5.83	0
K0731.1224 View product	24	12	12	M12	20	24	62	48	18	47	28	RH thread	£4.55	0
K0731.1248 View product	24	12	12	M12	20	48	86	72	18	69	28	RH thread	£5.29	0
K0731.1428 View product	27	14	14	M14	24	28	72	56	22.5	52	31	RH thread	£6.14	0
K0731.16132 View product	32	16	16	M16x1.5	26	32	83	64	24	62	36	RH thread	£9.88	0
K0731.1632 View product	32	16	16	M16	26	32	83	64	24	62	36	RH thread	£8.95	0

Showing products per page

{
    "id": "698",
    "layout_id": "",
    "parent_id": "667",
    "name": "K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16",
    "slug": "k0731-fork-joints-with-snap-on-spring-in-steel-size-m3-m16",
    "meta_title": "K0731  - Fork Joints With Snap-On Spring In Steel Size M3-M16",
    "meta_description": "",
    "long_description": "",
    "short_description": "",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "965",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:15:22",
    "updated": "2025-03-25 16:22:01",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/13\/ef\/13efaab5b09dc487cf60de3b96d03eb9\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/13\/ef\/13efaab5b09dc487cf60de3b96d03eb9\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/13\/ef\/13efaab5b09dc487cf60de3b96d03eb9\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/13\/ef\/13efaab5b09dc487cf60de3b96d03eb9\/242x242\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Linkages & Joints",
    "parent_category_url": "linkages-joints",
    "path": "Standard Parts > Linkages &amp; Joints > K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16",
    "path_list": [
        "Standard Parts",
        "Linkages &amp; Joints",
        "K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 24,
        "stockLevel": {
            "untracked": 24,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "A",
        "B",
        "D1",
        "D2",
        "D3",
        "G",
        "L1",
        "L2",
        "L3",
        "L5",
        "L6",
        "Version"
    ]
}

K0731 - Fork Joints With Snap-On Spring In Steel Size M3-M16

K0731 Fork Joint With Snap On Pin RH Thread

K0731 Fork Joint With Snap On Pin LH Thread

£2.87

£2.15

£1.78

£2.24

£2.06

£2.53

£2.51

£2.92

£2.88

£3.33

£3.51

£3.88

£3.99

£4.75

£3.18

£9.07

£3.62

£4.97

£5.83

£4.55

£5.29

£6.14

£9.88

£8.95

Fork Joint With Snap On Pin. Left Hand Thread. M3.5 Thread. 8mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M5 Thread. 10mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M5 Thread. 10mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M6 Thread. 12mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M6 Thread. 12mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M8 Thread. 16mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M8 Thread. 16mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M8 Thread. 32mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M8 Thread. 32mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M10 Thread. 20mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M10x1.25 Thread. 20mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M10 Thread. 40mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M10x1.25 Thread. 40mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M12 Thread. 24mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M10 Thread. 20mm Radius. Steel.

Fork Joint With Snap On Pin. Left Hand Thread. M16 Thread. 32mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M10 Thread. 40mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M12x1.25 Thread. 24mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M12x1.25 Thread. 48mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M12 Thread. 24mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M12 Thread. 48mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M14 Thread. 28mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M16x1.5 Thread. 32mm Radius. Steel.

Fork Joint With Snap On Pin. Right Hand Thread. M16 Thread. 32mm Radius. Steel.
