K0722 - Rod Ends With Slide Bearing In Steel Size M6-M20
Back to K0722 Swivel Head With Male Thread LH Thread

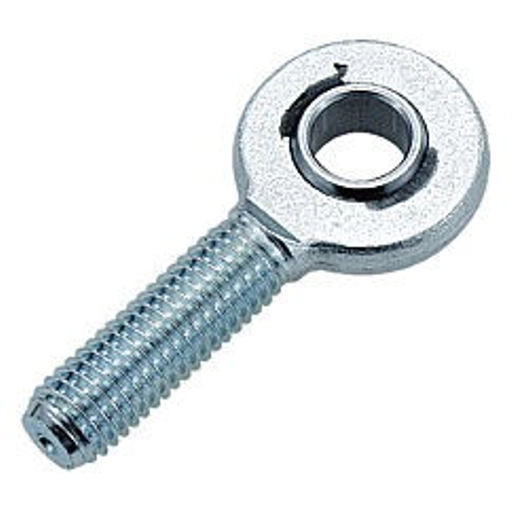

Rod End. Left Hand Thread. M20x1.5 Thread. Carbon Steel.

Item Code: K0722.201

Rod End. Left Hand Thread. M20x1.5 Thread. Carbon Steel.

Item Code: K0722.201

Rod End. Left Hand Thread. M20x1.5 Thread. Carbon Steel.

Material:
Casing size (D) 6-10: free-cutting steel, turned. Casing as of size (D) 12: tempered steel, forged. Ball joint: roller bearing steel, hardened, ground, polished and hard-chromium-plated. Bearing shell: roller bearing steel with PTFE cloth glued in Surface finish:
galvanized Note:
The slide bearing of the rod ends is maintenance-free.
The connection dimensions comply with DIN 648 Form Series E.

Quick Links

Dispatch by 10/06/25

D: 20 -0,010

L: 43

L1: 25

D1: M20x1,5

A: 78

B: 53

H: 16

H1: 13

K: 29

DIN ISO: DIN ISO 12240-4

Dynamic base loads kN: 31,5

Static base loads kN: 60

£56.94 ea. Excl VAT £68.33 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£48.40	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

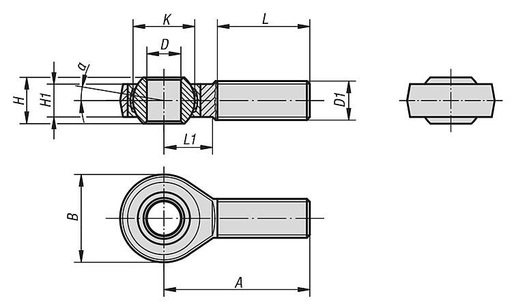

Product Dimensions

D	20 -0,010
L	43
L1	25
D1	M20x1,5
A	78
B	53
H	16
H1	13
K	29
DIN ISO	DIN ISO 12240-4
Dynamic base loads kN	31,5
Static base loads kN	60

Downloads

STP

Rod End. Left Hand Thread. M20x1.5 Thread. Carbon Steel.

Rod End. Left Hand Thread. M20x1.5 Thread. Carbon Steel.
