K0693 - Height Adjustment Bolts With Counter Nut
Back to K0693 Steel Versions

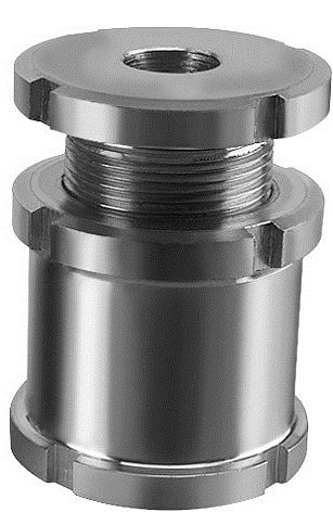

Height Adjustment Bolt.M5 Thread. 43mm Max Height. 25mm Diameter. Steel.

Item Code: K0693.01005

Height Adjustment Bolt.M5 Thread. 43mm Max Height. 25mm Diameter. Steel.

Levelling-sets-with-locknut_1200x1200.jpg?

Item Code: K0693.01005

Height Adjustment Bolt.M5 Thread. 43mm Max Height. 25mm Diameter. Steel.

Material:
Steel 1.7225. Stainless steel 1.4305. Surface finish:
Steel zinc plated, blue chromated.
Stainless steel surface finish. Note:
The height adjustment bolts are used when dealing with the positioning and alignment of motors, motor units, drive components and production lines. The counter-nut secures the given adjustment. Other sizes available on request.

Quick Links

Dispatch by 10/06/25

D: 5,5

D1: M15x1

D2: 25

Locknut: with locknut

N: 4

F kN: 40

M: 2

H max.: 43

H min.: 33

F1 kN: 33,4

£62.82 ea. Excl VAT £75.38 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£53.40	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

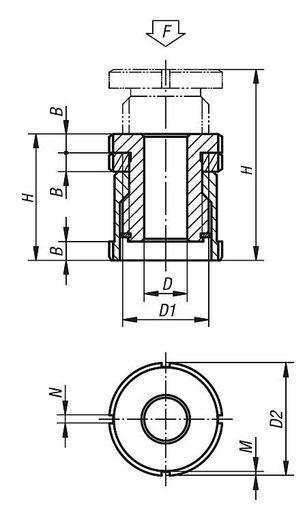

Product Dimensions

D	5,5
D1	M15x1
D2	25
Locknut	with locknut
N	4
F kN	40
M	2
H max.	43
H min.	33
F1 kN	33,4

Downloads

STP

Height Adjustment Bolt.M5 Thread. 43mm Max Height. 25mm Diameter. Steel.

Height Adjustment Bolt.M5 Thread. 43mm Max Height. 25mm Diameter. Steel.
