K0693 - Height Adjustment Bolts With Counter Nut
Back to K0693 Steel Versions
Height Adjustment Bolt.M10 Thread. 55mm Max Height. 32mm Diameter. Steel.

Item Code: K0693.01410

Height Adjustment Bolt.M10 Thread. 55mm Max Height. 32mm Diameter. Steel.

Item Code: K0693.01410

Height Adjustment Bolt.M10 Thread. 55mm Max Height. 32mm Diameter. Steel.

Steel height adjustment bolt for M10 bolt 41mm-55mm Max
Material:
Steel 1.7225. Stainless steel 1.4305. Surface finish:
Steel zinc plated, blue chromated.
Stainless steel surface finish. Note:
The height adjustment bolts are used when dealing with the positioning and alignment of motors, motor units, drive components and production lines. The counter-nut secures the given adjustment. Other sizes available on request.

Quick Links

Dispatch by 03/07/25

D: 11

D1: M20x1

D2: 32

F kN: 65

F1 kN: 37,9

H max.: 55

H min.: 41

Locknut: with locknut

M: 2

N: 4

£68.24 ea. Excl VAT £81.89 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£58.00	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

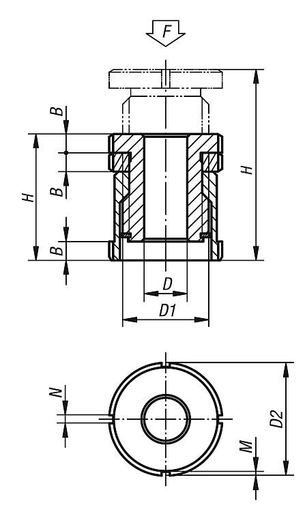

Product Dimensions

D	11
D1	M20x1
D2	32
F kN	65
F1 kN	37,9
H max.	55
H min.	41
Locknut	with locknut
M	2
N	4
