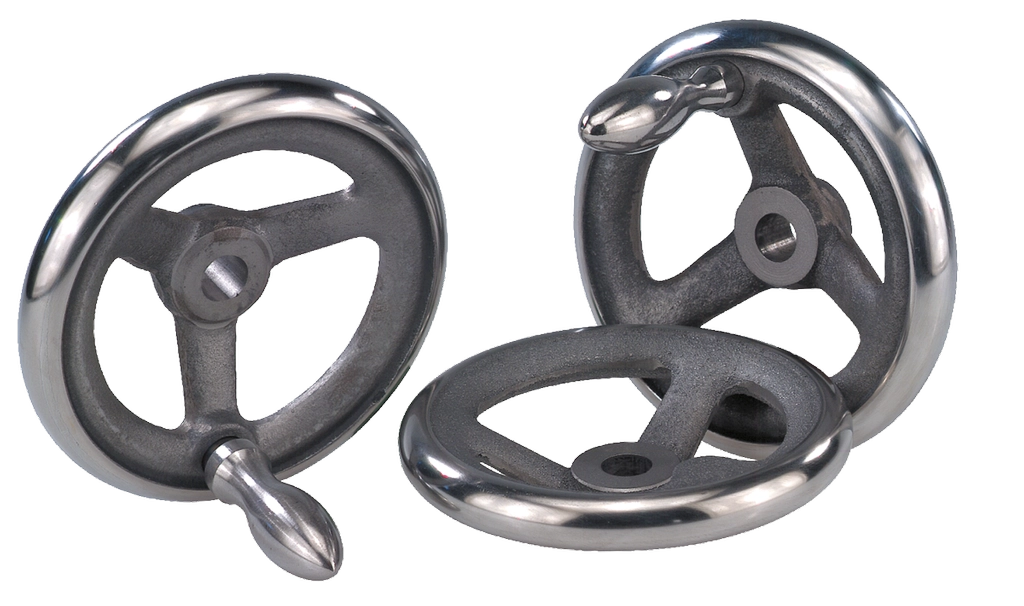

K0671 Inch - Handwheels In Cast Iron

K0671 Inch - Handwheels In Cast Iron

Material:
Handwheel, gray cast iron.
Grip steel.

Version:
Wheel rim turned and polished.

Note:
For the inch series, dimension D2 is in inches, all other dimensions are in mm.

K0671 Inch - Handwheels In Cast Iron

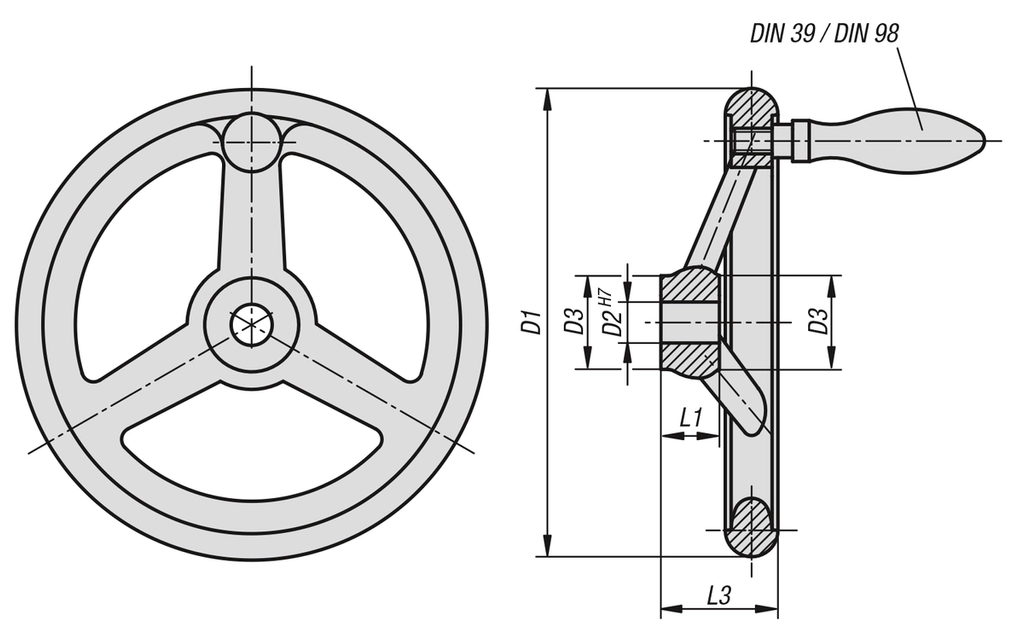

Line drawing placeholder

Move drawing here

D1 D2 D3 L1 L3 Style Number of spokes revolving grip DIN 98 style E Price (Exc. Tax) Stock Qty basket

Filters
K0671.2080XCN
View product 		80 0.312 24 16 29 fixed grip 3 --
£34.24
0
K0671.0080XCN
View product 		80 0.312 24 16 29 No Grip 3 --
£24.26
0
K0671.4080XCN
View product 		80 0.312 24 16 29 revolving grip 3 �16 x M6 x 54.5
£42.98
0
K0671.2100XCO
View product 		100 0.375 26 17 33 fixed grip 3 --
£39.07
0
K0671.0100XCO
View product 		100 0.375 26 17 33 No Grip 3 --
£29.31
0
K0671.4100XCO
View product 		100 0.375 26 17 33 revolving grip 3 �16 x M6 x 54.5
£47.74
0
K0671.2125XCO
View product 		125 0.375 28 18 36 fixed grip 3 --
£47.52
0
K0671.0125XCO
View product 		125 0.375 28 18 36 No Grip 3 --
£35.10
0
K0671.4125XCO
View product 		125 0.375 28 18 36 revolving grip 3 �20 x M8 x 67
£55.91
0
K0671.2080XCO
View product 		80 0.375 24 16 29 fixed grip 3 --
£34.24
0
K0671.0080XCO
View product 		80 0.375 24 16 29 No Grip 3 --
£24.26
0
K0671.4080XCO
View product 		80 0.375 24 16 29 revolving grip 3 �16 x M6 x 54.5
£42.98
0
K0671.2100XCP
View product 		100 0.5 26 17 33 fixed grip 3 --
£39.07
0
K0671.0100XCP
View product 		100 0.5 26 17 33 No Grip 3 --
£29.31
0
K0671.4100XCP
View product 		100 0.5 26 17 33 revolving grip 3 �16 x M6 x 54.5
£47.74
0
K0671.2125XCP
View product 		125 0.5 28 18 36 fixed grip 3 --
£47.52
0
K0671.0125XCP
View product 		125 0.5 28 18 36 No Grip 3 --
£35.10
0
K0671.4125XCP
View product 		125 0.5 28 18 36 revolving grip 3 �20 x M8 x 67
£55.91
0
K0671.2140XCP
View product 		140 0.5 30 19 39 fixed grip 3 --
£53.15
0
K0671.0140XCP
View product 		140 0.5 30 19 39 No Grip 3 --
£41.12
0
K0671.4140XCP
View product 		140 0.5 30 19 39 revolving grip 3 �20 x M8 x 67
£61.53
0
K0671.2160XCP
View product 		160 0.5 32 20 40 fixed grip 3 --
£62.47
0
K0671.0160XCP
View product 		160 0.5 32 20 40 No Grip 3 --
£44.46
0
K0671.4160XCP
View product 		160 0.5 32 20 40 revolving grip 3 �25 x M10 x 83
£71.50
0
K0671.2180XCP
View product 		180 0.5 36 22 43 fixed grip 3 --
£80.80
0
K0671.0180XCP
View product 		180 0.5 36 22 43 No Grip 3 --
£62.82
0
K0671.4180XCP
View product 		180 0.5 36 22 43 revolving grip 3 �25 x M10 x 83
£89.81
0
K0671.2140XCQ
View product 		140 0.625 30 19 39 fixed grip 3 --
£53.15
0
K0671.0140XCQ
View product 		140 0.625 30 19 39 No Grip 3 --
£41.12
0
K0671.4140XCQ
View product 		140 0.625 30 19 39 revolving grip 3 �20 x M8 x 67
£61.53
0
K0671.2160XCQ
View product 		160 0.625 32 20 40 fixed grip 3 --
£62.47
0
K0671.0160XCQ
View product 		160 0.625 32 20 40 No Grip 3 --
£44.46
0
K0671.4160XCQ
View product 		160 0.625 32 20 40 revolving grip 3 �25 x M10 x 83
£71.50
0
K0671.2180XCQ
View product 		180 0.625 36 22 43 fixed grip 3 --
£80.80
0
K0671.0180XCQ
View product 		180 0.625 36 22 43 No Grip 3 --
£62.82
0
K0671.4180XCQ
View product 		180 0.625 36 22 43 revolving grip 3 �25 x M10 x 83
£89.81
0
K0671.2200XCQ
View product 		200 0.625 38 24 45 fixed grip 3 --
£86.24
0
K0671.0200XCQ
View product 		200 0.625 38 24 45 No Grip 3 --
£68.19
0
K0671.4200XCQ
View product 		200 0.625 38 24 45 revolving grip 3 �25 x M10 x 83
£94.90
0
K0671.2200XCR
View product 		200 0.75 38 24 45 fixed grip 3 --
£86.24
0
K0671.0200XCR
View product 		200 0.75 38 24 45 No Grip 3 --
£68.19
0
K0671.4200XCR
View product 		200 0.75 38 24 45 revolving grip 3 �25 x M10 x 83
£94.90
0
K0671.2250XCR
View product 		250 0.75 45 28 50 fixed grip 5 --
£137.60
0
K0671.0250XCR
View product 		250 0.75 45 28 50 No Grip 5 --
£108.50
0
K0671.4250XCR
View product 		250 0.75 45 28 50 revolving grip 5 �32 x M12 x 105.5
£147.78
0
K0671.2250XCV
View product 		250 0.875 45 28 50 fixed grip 5 --
£137.60
0
K0671.0250XCV
View product 		250 0.875 45 28 50 No Grip 5 --
£108.50
0
K0671.4250XCV
View product 		250 0.875 45 28 50 revolving grip 5 �32 x M12 x 105.5
£147.78
0

Showing products per page


List view Grid view
£
£

Item Code: K0671.2080XCN

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Fixed Grip.

£34.24  Excl VAT £41.09  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0080XCN

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. No Grip.

£24.26  Excl VAT £29.11  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4080XCN

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Revolving Grip.

£42.98  Excl VAT £51.58  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2100XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Fixed Grip.

£39.07  Excl VAT £46.88  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0100XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. No Grip.

£29.31  Excl VAT £35.17  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4100XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Revolving Grip.

£47.74  Excl VAT £57.29  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2125XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Fixed Grip.

£47.52  Excl VAT £57.02  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0125XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. No Grip.

£35.10  Excl VAT £42.12  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4125XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Revolving Grip.

£55.91  Excl VAT £67.09  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2080XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Fixed Grip.

£34.24  Excl VAT £41.09  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0080XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. No Grip.

£24.26  Excl VAT £29.11  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4080XCO

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Revolving Grip.

£42.98  Excl VAT £51.58  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2100XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Fixed Grip.

£39.07  Excl VAT £46.88  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0100XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. No Grip.

£29.31  Excl VAT £35.17  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4100XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Revolving Grip.

£47.74  Excl VAT £57.29  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2125XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Fixed Grip.

£47.52  Excl VAT £57.02  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0125XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. No Grip.

£35.10  Excl VAT £42.12  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4125XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Revolving Grip.

£55.91  Excl VAT £67.09  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2140XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Fixed Grip.

£53.15  Excl VAT £63.78  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0140XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. No Grip.

£41.12  Excl VAT £49.34  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4140XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Revolving Grip.

£61.53  Excl VAT £73.84  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2160XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Fixed Grip.

£62.47  Excl VAT £74.96  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0160XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. No Grip.

£44.46  Excl VAT £53.35  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4160XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Revolving Grip.

£71.50  Excl VAT £85.80  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2180XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Fixed Grip.

£80.80  Excl VAT £96.96  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0180XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. No Grip.

£62.82  Excl VAT £75.38  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4180XCP

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Revolving Grip.

£89.81  Excl VAT £107.77  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2140XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Fixed Grip.

£53.15  Excl VAT £63.78  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0140XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. No Grip.

£41.12  Excl VAT £49.34  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4140XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Revolving Grip.

£61.53  Excl VAT £73.84  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2160XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Fixed Grip.

£62.47  Excl VAT £74.96  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0160XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. No Grip.

£44.46  Excl VAT £53.35  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4160XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Revolving Grip.

£71.50  Excl VAT £85.80  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2180XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Fixed Grip.

£80.80  Excl VAT £96.96  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0180XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. No Grip.

£62.82  Excl VAT £75.38  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4180XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Revolving Grip.

£89.81  Excl VAT £107.77  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2200XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Fixed Grip.

£86.24  Excl VAT £103.49  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0200XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. No Grip.

£68.19  Excl VAT £81.83  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4200XCQ

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Revolving Grip.

£94.90  Excl VAT £113.88  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2200XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Fixed Grip.

£86.24  Excl VAT £103.49  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0200XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. No Grip.

£68.19  Excl VAT £81.83  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4200XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Revolving Grip.

£94.90  Excl VAT £113.88  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2250XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Fixed Grip.

£137.60  Excl VAT £165.12  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0250XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. No Grip.

£108.50  Excl VAT £130.20  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4250XCR

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Revolving Grip.

£147.78  Excl VAT £177.34  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.2250XCV

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Fixed Grip.

£137.60  Excl VAT £165.12  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.0250XCV

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. No Grip.

£108.50  Excl VAT £130.20  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Item Code: K0671.4250XCV

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Revolving Grip.

£147.78  Excl VAT £177.34  Inc VAT

Price breaks available

Dispatch by 18/12/25

Text

Qty

Showing products per page

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2080XCN

£34.24  Excl VAT £41.09  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. No Grip.

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0080XCN

£24.26  Excl VAT £29.11  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.312" Reamed Hole. 80mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4080XCN

£42.98  Excl VAT £51.58  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2100XCO

£39.07  Excl VAT £46.88  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. No Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0100XCO

£29.31  Excl VAT £35.17  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 100mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4100XCO

£47.74  Excl VAT £57.29  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2125XCO

£47.52  Excl VAT £57.02  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. No Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0125XCO

£35.10  Excl VAT £42.12  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 125mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4125XCO

£55.91  Excl VAT £67.09  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2080XCO

£34.24  Excl VAT £41.09  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. No Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0080XCO

£24.26  Excl VAT £29.11  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.375" Reamed Hole. 80mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4080XCO

£42.98  Excl VAT £51.58  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2100XCP

£39.07  Excl VAT £46.88  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. No Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0100XCP

£29.31  Excl VAT £35.17  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 100mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4100XCP

£47.74  Excl VAT £57.29  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2125XCP

£47.52  Excl VAT £57.02  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. No Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0125XCP

£35.10  Excl VAT £42.12  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 125mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4125XCP

£55.91  Excl VAT £67.09  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2140XCP

£53.15  Excl VAT £63.78  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. No Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0140XCP

£41.12  Excl VAT £49.34  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 140mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4140XCP

£61.53  Excl VAT £73.84  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2160XCP

£62.47  Excl VAT £74.96  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. No Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0160XCP

£44.46  Excl VAT £53.35  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 160mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4160XCP

£71.50  Excl VAT £85.80  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2180XCP

£80.80  Excl VAT £96.96  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. No Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0180XCP

£62.82  Excl VAT £75.38  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.5" Reamed Hole. 180mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4180XCP

£89.81  Excl VAT £107.77  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2140XCQ

£53.15  Excl VAT £63.78  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. No Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0140XCQ

£41.12  Excl VAT £49.34  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 140mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4140XCQ

£61.53  Excl VAT £73.84  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2160XCQ

£62.47  Excl VAT £74.96  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. No Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0160XCQ

£44.46  Excl VAT £53.35  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 160mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4160XCQ

£71.50  Excl VAT £85.80  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2180XCQ

£80.80  Excl VAT £96.96  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. No Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0180XCQ

£62.82  Excl VAT £75.38  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 180mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4180XCQ

£89.81  Excl VAT £107.77  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2200XCQ

£86.24  Excl VAT £103.49  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. No Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0200XCQ

£68.19  Excl VAT £81.83  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.625" Reamed Hole. 200mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4200XCQ

£94.90  Excl VAT £113.88  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2200XCR

£86.24  Excl VAT £103.49  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. No Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0200XCR

£68.19  Excl VAT £81.83  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 200mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4200XCR

£94.90  Excl VAT £113.88  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2250XCR

£137.60  Excl VAT £165.12  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. No Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0250XCR

£108.50  Excl VAT £130.20  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.75" Reamed Hole. 250mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4250XCR

£147.78  Excl VAT £177.34  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Fixed Grip.

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Fixed Grip.

Dispatch by 18/12/25

Item Code: K0671.2250XCV

£137.60  Excl VAT £165.12  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. No Grip.

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. No Grip.

Dispatch by 18/12/25

Item Code: K0671.0250XCV

£108.50  Excl VAT £130.20  Inc VAT

Price breaks available

Text

Qty

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Revolving Grip.

Handwheel. Cast Iron. 0.875" Reamed Hole. 250mm Diameter. Revolving Grip.

Dispatch by 18/12/25

Item Code: K0671.4250XCV

£147.78  Excl VAT £177.34  Inc VAT

Price breaks available

Text

Qty

Showing products per page

{
    "id": "1608",
    "layout_id": "",
    "parent_id": "1533",
    "name": "K0671 Inch  - Handwheels In Cast Iron",
    "slug": "k0671-inch-handwheels-in-cast-iron",
    "meta_title": "K0671 Inch  - Handwheels In Cast Iron",
    "meta_description": "",
    "long_description": "",
    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nHandwheel, gray cast iron.<br \/>\r\nGrip steel.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nWheel rim turned and polished.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nFor the inch series, dimension D2 is in inches, all other dimensions are in mm.<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img src=\"https:\/\/images.shopcdn.co.uk\/af\/0e\/af0e33febc09a86089392f6237e2c26b\/1024x1024\/webp\/fit?quality=100&amp;compression=100&amp;t=1763729892\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "44",
    "default_sortby": "aa",
    "deleted": "0",
    "created": "2025-11-20 11:48:16",
    "updated": "2025-11-21 12:58:33",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/26\/f8\/26f845afd046853fbf59d419c2dc4d64\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/26\/f8\/26f845afd046853fbf59d419c2dc4d64\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/26\/f8\/26f845afd046853fbf59d419c2dc4d64\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/26\/f8\/26f845afd046853fbf59d419c2dc4d64\/1200x710\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Inch Handwheels",
    "parent_category_url": "inch-handwheels",
    "path": "Inch Parts > Inch Handwheels > K0671 Inch  - Handwheels In Cast Iron",
    "path_list": [
        "Inch Parts",
        "Inch Handwheels",
        "K0671 Inch  - Handwheels In Cast Iron"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 60,
        "stockLevel": {
            "untracked": 60,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "D1",
        "D2",
        "D3",
        "L1",
        "L3",
        "Style",
        "Number of spokes",
        "revolving grip DIN 98 style E"
    ]
}

Category Image Schema
