K0665 - Stainless Steel Spacer Rings For Adjusting Indexing Plungers

K0665 - Stainless Steel Spacer Rings For Adjusting Indexing Plungers

List view Grid view

Material:
1.4305 or 1.4404 stainless steel.

Version:
Bright.

Note:
Spacer rings are used to adjust the indexing plunger thread length to suit the application wall thickness.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

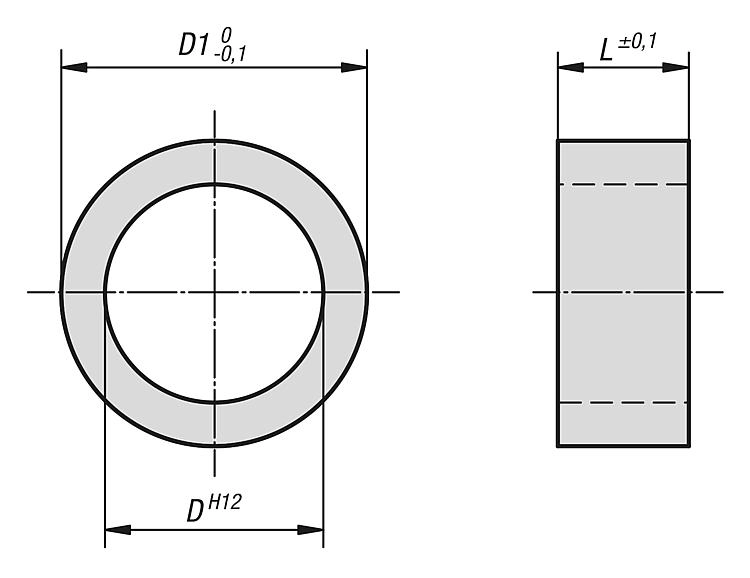

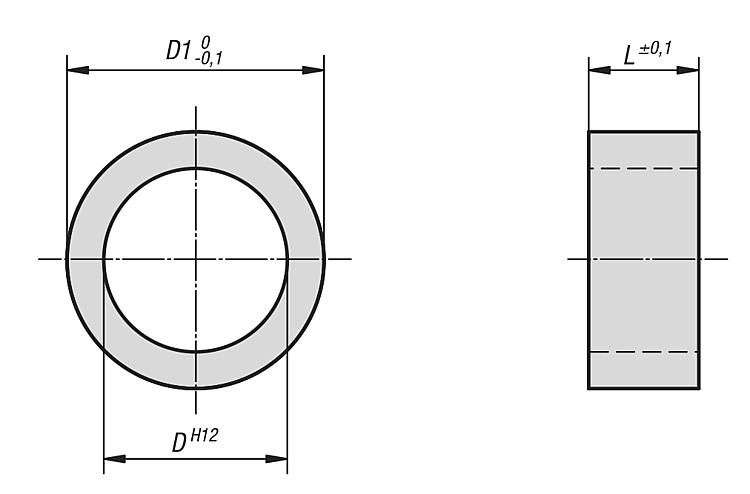

	D	D1	L	Surface finish, body	Price (Exc. Tax)	Stock
Filters
K0665.90811021 View product	8	11	2	Bright	£0.42	0
K0665.90811031 View product	8	11	3	Bright	£0.46	0
K0665.90811041 View product	8	11	4	Bright	£0.50	0
K0665.90811061 View product	8	11	6	Bright	£0.53	0
K0665.90811081 View product	8	11	8	Bright	£0.57	2
K0665.91014021 View product	10	14	2	Bright	£0.46	14
K0665.91014031 View product	10	14	3	Bright	£0.50	48
K0665.91014041 View product	10	14	4	Bright	£0.53	16
K0665.91014061 View product	10	14	6	Bright	£0.56	0
K0665.91014081 View product	10	14	8	Bright	£0.64	0
K0665.91215021 View product	12	15	2	Bright	£0.48	0
K0665.91215041 View product	12	15	4	Bright	£0.57	0
K0665.91215051 View product	12	15	5	Bright	£0.62	0
K0665.91215061 View product	12	15	6	Bright	£0.64	0
K0665.91215081 View product	12	15	8	Bright	£0.69	0
K0665.91217021 View product	12	17	2	Bright	£0.56	0
K0665.91217041 View product	12	17	4	Bright	£0.63	0
K0665.91217051 View product	12	17	5	Bright	£0.69	0
K0665.91217061 View product	12	17	6	Bright	£0.74	0
K0665.91217081 View product	12	17	8	Bright	£0.77	0
K0665.91621041 View product	16	21	4	Bright	£0.73	0
K0665.91621051 View product	16	21	5	Bright	£0.77	0
K0665.91621061 View product	16	21	6	Bright	£0.84	18
K0665.91621081 View product	16	21	8	Bright	£0.89	0
K0665.91621101 View product	16	21	10	Bright	£0.95	0
