Item Code: K0659.33CP

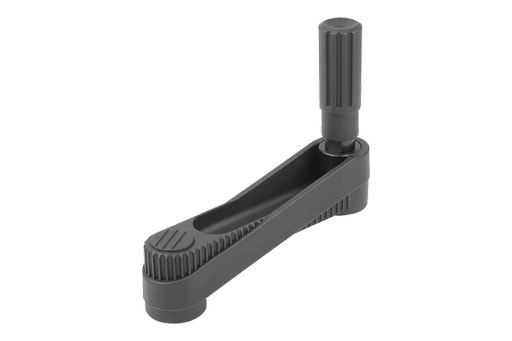

Crank Handle With Revolving Grip. Length 125mm. 0.5" Reamed Hole.

Item Code: K0659.33CP

Material:
Crank thermoplastic.
Cylinder grip thermoplastic and steel.

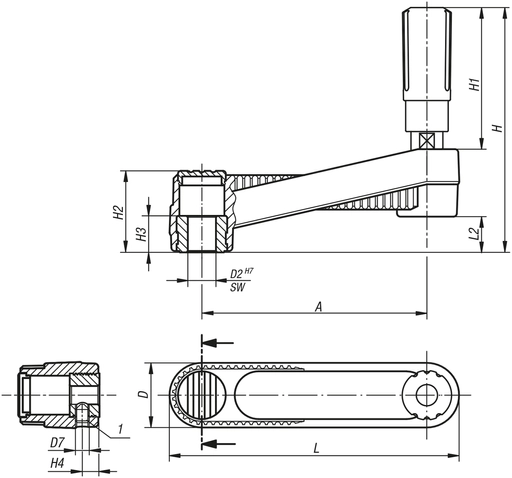

Drawing Reference:
1) Position of the transverse bore to the keyway is offset by 90�.

Note:
The dimensions for D2 are in inches, all other dimensions are in mm.

Quick Links

Dispatch by 07/12/25

A: 125

D: 36

D2: 0.5

H: 139.5

H1: 82.5

H2: 44

H3: 18.5

L: 161

L2: 19.5

Version: without transverse hole

£22.81 ea. Excl VAT £27.37 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.
