Item Code: K0641.02105070

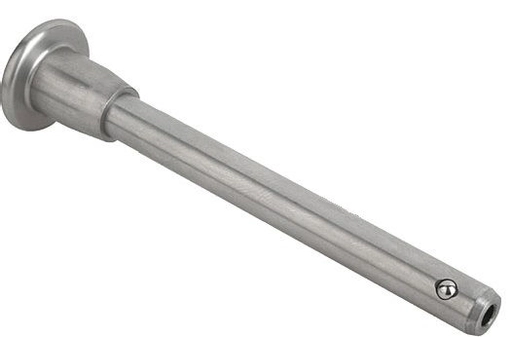

Ball Lock Pin With Mushroom Grip. 5mm Pin Diameter. 70mm Clamping Length. Stainless Steel.

Item Code: K0641.02105070

Ball Lock Pin With Mushroom Grip. 5mm Pin Diameter. 70mm Clamping Length. Stainless Steel.

Material:
Bolt in stainless steel 1.4542.
Mushroom knob and push button in stainless steel 1.4305.
Balls in stainless steel 1.4125.
Compression spring in stainless steel. Surface finish:
Bolt, hardened min. 40 HRC and passivated.
Passivated mushroom knob and push button.
Balls hardened 58 +4 HRC and passivated.
Passivated compression spring. Note:
Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged.

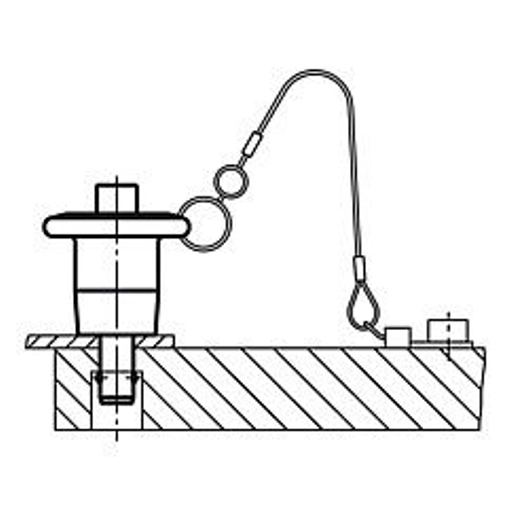

When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope. The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Thanks to the high corrosion and acid resistance, they are mainly used in the foodstuff industry, in the chemical and petrochemical industry and as constructional elements in the aerospace industry. Shearing force double-edged (F) = S · t aB max. Accessory:
Safety helix cable K0367.10200
Restraining cable with eye K0367. .....
Key ring K0367.15/19/23

Quick Links

2 in stock

11,9
20,6
70
6
16
5
23,4
5,54
5,8
76
24,4
5

£30.35  ea. Excl VAT £36.42  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £24.89 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Bolt in stainless steel 1.4542.
Mushroom knob and push button in stainless steel 1.4305.
Balls in stainless steel 1.4125.
Compression spring in stainless steel. Surface finish:
Bolt, hardened min. 40 HRC and passivated.
Passivated mushroom knob and push button.
Balls hardened 58 +4 HRC and passivated.
Passivated compression spring. Note:
Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged.
When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope. The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Thanks to the high corrosion and acid resistance, they are mainly used in the foodstuff industry, in the chemical and petrochemical industry and as constructional elements in the aerospace industry. Shearing force double-edged (F) = S · t aB max. Accessory:
Safety helix cable K0367.10200
Restraining cable with eye K0367. .....
Key ring K0367.15/19/23

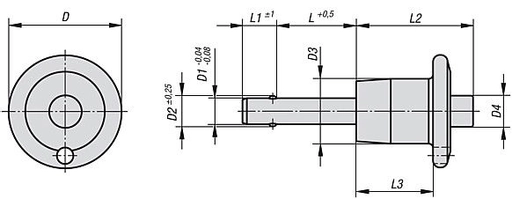

D311,9
D20,6
L70
L16
L316
D15
L223,4
D25,54
D45,8
L576
Shearing force double shear max.kN24,4
Receiving, hole, H115
STP
Head MaterialStainless Steel
Pin MaterialStainless Steel
Length to Ball70mm
Pin Diameter5mm
