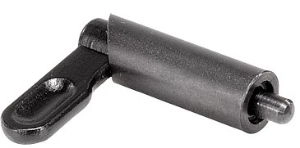

K0639 Indexing Plungers With Grip Uncoated Form E In Steel Size 10-20mm

List view Grid view
K0639 Indexing Plungers With Grip Uncoated Form E In Steel Size 10-20mm

Material:
Handle 1.0503.
Pin steel grade 5.8.
Sleeve 1.0403.

Version:
Black oxidised.
Pin hardened and ground.Note:Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.

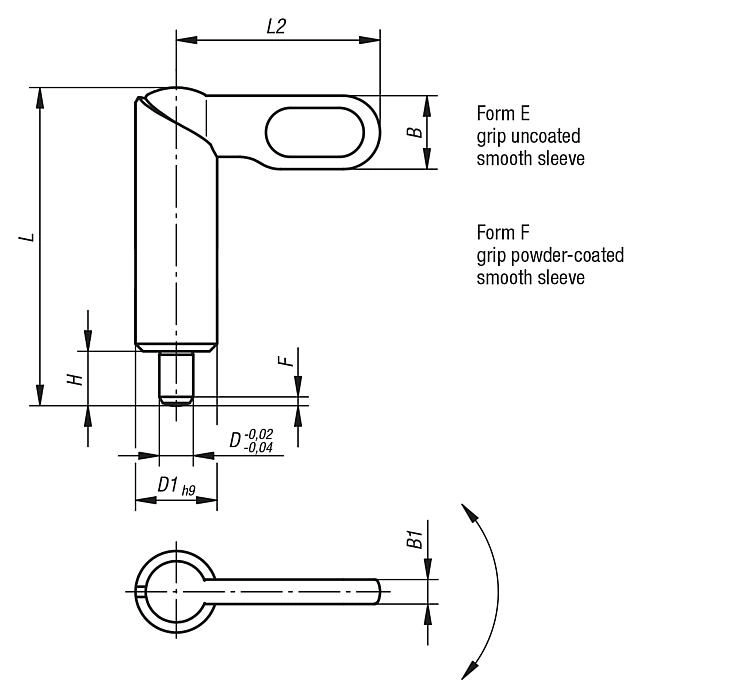

Drawing reference:
Form E: grip uncoated, smooth sleeve

Cam Action Indexing Plunger. 16mm Shaft Diameter. 10mm Pin Diameter. Steel.

K0639 Indexing Plungers With Grip Uncoated Form E In Steel Size 10-20mm

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

B B1 D D1 Form Fx30° H L L1 Locknut Spring force initial pressure F1 approx. N Spring force final pressure F2 approx. N Price (Exc. Tax) Stock Qty basket

Filters

K0639.080410
View product
9 3 4 10 E 1 6 38 25 without locknut 8 14
£13.34
0
K0639.080510
View product
9 3 5 10 E 1,3 6 38 25 without locknut 8 14
£13.34
0
K0639.080512
View product
10,8 3,6 5 12 E 1,3 8 46,8 30 without locknut 8 15
£13.64
8
K0639.080610
View product
9 3 6 10 E 1,8 6 38 25 without locknut 8 14
£13.34
0
K0639.080612
View product
10,8 3,6 6 12 E 1,8 8 46,8 30 without locknut 8 15
£13.64
0
K0639.080616
View product
14,4 4,8 6 16 E 1,8 10 60,4 40 without locknut 15 35
£16.24
0
K0639.080812
View product
10,8 3,6 8 12 E 2,3 8 46,8 30 without locknut 8 15
£13.64
0
K0639.080816
View product
14,4 4,8 8 16 E 2,3 10 60,4 40 without locknut 15 35
£16.24
0
K0639.080820
View product
18 6 8 20 E 2,3 12 70 50 without locknut 20 60
£18.57
0
K0639.081016
View product
14,4 4,8 10 16 E 2,8 10 60,4 40 without locknut 15 35
£16.24
0
K0639.081020
View product
18 6 10 20 E 2,8 12 70 50 without locknut 20 60
£18.57
29
K0639.081220
View product
18 6 12 20 E 3 12 70 50 without locknut 20 60
£18.57
0
