Item Code: K0639.090510

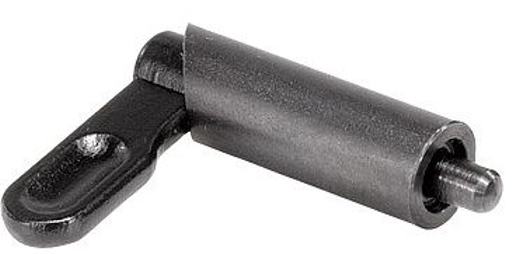

Cam Action Indexing Plunger. 10mm Shaft Diameter. 5mm Pin Diameter. Steel.

Item Code: K0639.090510

Cam Action Indexing Plunger. 10mm Shaft Diameter. 5mm Pin Diameter. Steel.

Material:
Locking bar 1.0503.
Locking pin steel quality class 5.8.
Sleeve 1.0403 weldable. Surface finish:
Black oxide finish.
Locking pin hardened and ground. Note:
Locking bolts with grip are used when the locking pin should not project at certain times. Turning the bolt through 180° pulls in the locking pin.
A locking notch ensures that the locking bolt is held in this position.
In order to weld the locking bolt with grip to another surface, we recommend inert gas-shielded welding with TIG welding equipment.

Quick Links

Dispatch by 10/06/25

F
5
38
25
10
9
6
3
without locknut
1,3
8
14

£13.62  ea. Excl VAT £16.34  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £11.17 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Locking bar 1.0503.
Locking pin steel quality class 5.8.
Sleeve 1.0403 weldable. Surface finish:
Black oxide finish.
Locking pin hardened and ground. Note:
Locking bolts with grip are used when the locking pin should not project at certain times. Turning the bolt through 180° pulls in the locking pin.
A locking notch ensures that the locking bolt is held in this position.
In order to weld the locking bolt with grip to another surface, we recommend inert gas-shielded welding with TIG welding equipment.

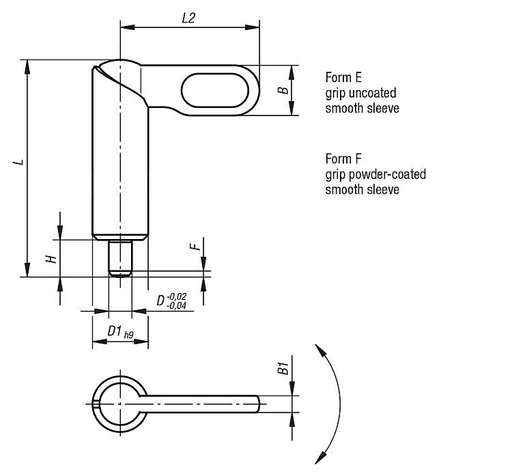

FormF
D5
L38
L125
D110
B9
H6
B13
Locknutwithout locknut
Fx30°1,3
Spring force initial pressure F1 approx. N8
Spring force final pressure F2 approx. N14
STP
TypeLockout
Body MaterialSteel
Pin Diameter5mm
Pin Length6mm
