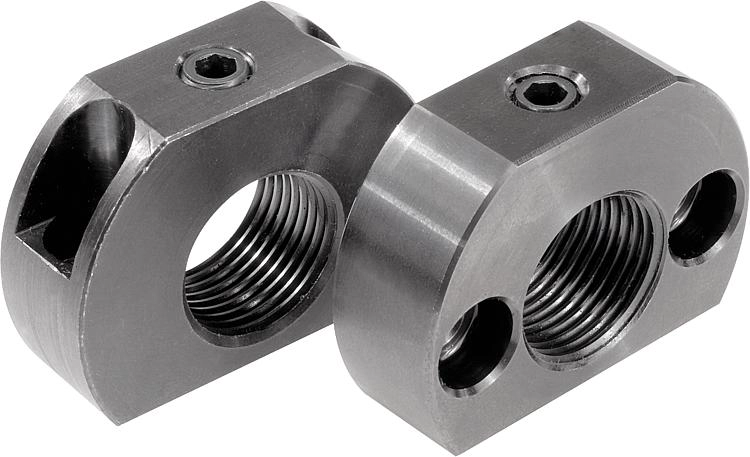

K0638 - Mounting Bracket In Steel

K0638 - Mounting Bracket In Steel

List view Grid view

Material:
Steel.

Version:
Black oxidised.

Note:
These mounting brackets are assembly aids for cam-action indexing plungers and extend their application field. They can also be used with other indexing plungers or other elements that have a suitable thread. Fastened using cap screws.

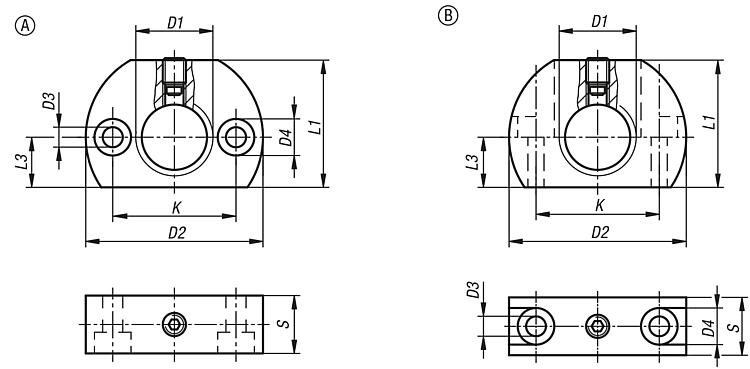

Drawing reference:
Form A: fastening holes parallel to indexing plunger
Form B: fastening holes perpendicular to indexing plunger

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.112 View product Mounting Bracket. For M12 Thread. Steel.	M12	36	5,5	10	A	24	25	10	12	£10.66 £12.79		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.1121 View product Mounting Bracket. For M12 x 1.5 Pitch Thread. Steel.	M12x1,5	36	5,5	10	A	24	25	10	12	£10.66 £12.79		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.116 View product Mounting Bracket. For M16 Thread. Steel.	M16	46	5,5	10	A	32	33	13	15	£11.53 £13.84		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.1161 View product Mounting Bracket. For M16 x 1.5 Pitch Thread. Steel.	M16x1,5	46	5,5	10	A	32	33	13	15	£11.53 £13.84		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.120 View product Mounting Bracket. For M20 Thread. Steel.	M20	46	5,5	10	A	32	33	13	15	£14.27 £17.12		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.1201 View product Mounting Bracket. For M20 x 1.5 Pitch Thread. Steel.	M20x1,5	46	5,5	10	A	32	33	13	15	£11.53 £13.84		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.212 View product Mounting Bracket. For M12 Thread. Steel.	M12	36	5,5	10	B	24	25	10	12	£14.03 £16.84		1 1 in stock

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.2121 View product Mounting Bracket. For M12 x 1.5 Pitch Thread. Steel.	M12x1,5	36	5,5	10	B	24	25	10	12	£14.03 £16.84		4 4 in stock

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.216 View product Mounting Bracket. For M16 Thread. Steel.	M16	46	5,5	10	B	32	33	13	15	£13.94 £16.73		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.2161 View product Mounting Bracket. For M16 x 1.5 Pitch Thread. Steel.	M16x1,5	46	5,5	10	B	32	33	13	15	£13.94 £16.73		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.220 View product Mounting Bracket. For M20 Thread. Steel.	M20	46	5,5	10	B	32	33	13	15	£16.03 £19.24		0 Dispatched 29/06/25

	D1	D2	D3	D4	Form	K	L1	L3	S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0638.2201 View product Mounting Bracket. For M20 x 1.5 Pitch Thread. Steel.	M20x1,5	46	5,5	10	B	32	33	13	15	£13.51 £16.21		0 Dispatched 29/06/25
