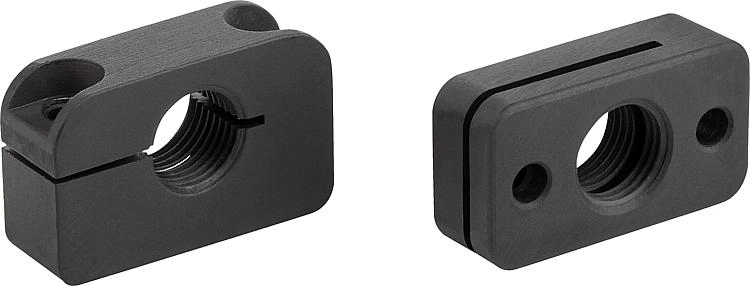

K0638 - Mounting Bracket In Aluminium

K0638 - Mounting Bracket In Aluminium

Material:
Aluminium 3.2163.

Version:
Black.

Note:
These mounting brackets are an assembly aid for cam-action and other indexing plungers and expand the application field. They can also be used with other elements that have a suitable thread.
Fastened using DIN 912 / ISO 4762 cap screws.

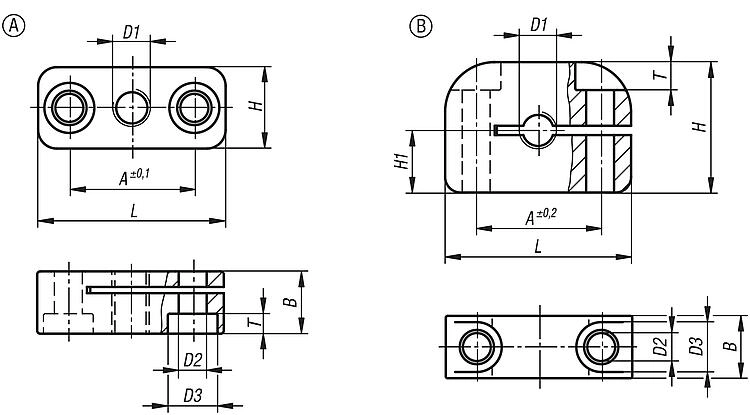

Drawing reference:
Form A: fastening holes parallel to thread
Form B: fastening holes perpendicular to thread

Mounting Bracket For Indexing Plunger In Aluminium.

K0638 - Mounting Bracket In Aluminium

Line drawing placeholder

Move drawing here

A B D1 D2 D3 Form H H1 L T Price (Exc. Tax) Stock Qty basket

Filters
K0638.306
View product 		20 10 M6 4,5 8 A 13 -- 30 3,2
£3.28
0
K0638.3061
View product 		20 10 M6x0,75 4,5 8 A 13 -- 30 3,2
£3.28
0
K0638.308
View product 		20 10 M8 4,5 8 A 13 -- 30 3,2
£3.28
0
K0638.3081
View product 		20 10 M8X1 4,5 8 A 13 -- 30 3,2
£3.28
0
K0638.310
View product 		24 12 M10 5,5 10 A 18 -- 37 3,9
£3.93
0
K0638.3101
View product 		24 12 M10X1 5,5 10 A 18 -- 37 3,9
£3.93
0
K0638.312
View product 		24 12 M12 5,5 10 A 18 -- 37 3,9
£3.93
0
K0638.3121
View product 		24 12 M12x1,5 5,5 10 A 18 -- 37 3,9
£3.93
0
K0638.316
View product 		32 15 M16 5,5 10 A 25 -- 46 3,9
£5.16
0
K0638.3161
View product 		32 15 M16x1,5 5,5 10 A 25 -- 46 3,9
£5.16
0
K0638.320
View product 		32 15 M20 5,5 10 A 25 -- 46 3,9
£5.16
0
K0638.3201
View product 		32 15 M20x1,5 5,5 10 A 25 -- 46 3,9
£5.16
0
K0638.406
View product 		20 10 M6 4,5 8 B 21 10 30 4,5
£3.28
0
K0638.4061
View product 		20 10 M6x0,75 4,5 8 B 21 10 30 4,5
£3.28
0
K0638.408
View product 		20 10 M8 4,5 8 B 21 10 30 4,5
£3.28
0
K0638.4081
View product 		20 10 M8X1 4,5 8 B 21 10 30 4,5
£3.28
0
K0638.410
View product 		24 12 M10 5,5 10 B 26 13 36 5,5
£3.93
0
K0638.4101
View product 		24 12 M10X1 5,5 10 B 26 13 36 5,5
£3.93
0
K0638.412
View product 		24 12 M12 5,5 10 B 26 13 36 5,5
£3.93
0
K0638.4121
View product 		24 12 M12x1,5 5,5 10 B 26 13 36 5,5
£3.93
0
K0638.416
View product 		32 15 M16 5,5 10 B 29 17 46 5,5
£5.16
0
K0638.4161
View product 		32 15 M16x1,5 5,5 10 B 29 17 46 5,5
£5.16
0
K0638.420
View product 		32 15 M20 5,5 10 B 29 17 46 5,5
£5.16
0
K0638.4201
View product 		32 15 M20x1,5 5,5 10 B 29 17 46 5,5
£5.16
0
