Material:
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.
Mushroom grip 1.4305, fine turned.
Version:
Bright.
Indexing pin ground.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A screw-in washer can be supplied to help screw the indexing plungers in. The washer slides beneath the disengaged mushroom knob so that the follower pins engage in the slot.
Accessory:
Spacer rings K0665.
Fastening sets for thin-walled parts K2146.
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm and Over
Choose Type
Hook
Latch
Vertical Latch
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Air Knife Only
Air Knife With Filter and Shim Set
Air Knife With Plumbing Kit Installed, Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Air Amplifier Only
Air Amplifier With Filter and Shim Set
Style
Air Amplifier Only
Air Amplifier With Filter
Item
Filter / Regulator
Air Amplifier Shim Set
Item
Filter / Regulator
Vortex Tube Generator
Vortex Tube Cold Silencer
Vortex Tube Hot Silencer
Style
Vortex Tube Only
Vortex Tube With Generator Kit, Muffler, Tubing And Filter
Clamp Type
Horizontal
Vertical
Latch
Vertical Latch
Clamp Type
Vertical
Press
Push-Pull
Clamp Type
Horizontal
Vertical
Hook
Latch
Vertical Latch
Push-Pull
Flip-Flop
Line drawing placeholder
Move drawing here

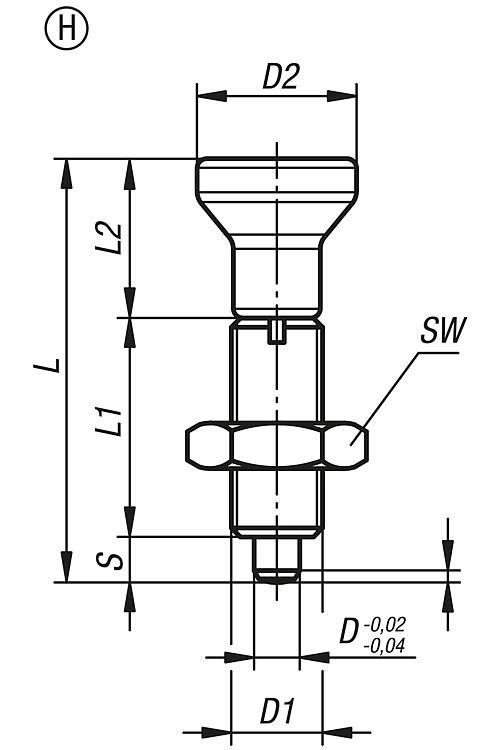

D | D1 | D2 | Fx30° | L | L1 | L2 | Locknut | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | SW | Travel S | Price (Exc. Tax) | Stock | Qty | basket | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Filters |
||||||||||||||||
K0634.002903 View product |
3 | M6x0,75 | 14 | 0,8 | 34,5 | 17 | 14 | with locknut | 4,5 | 10 | 10 | 3,5 |
£20.59 |
0 |
|
|
K0634.002004 View product |
4 | M8X1 | 18 | 1 | 43 | 21 | 18 | with locknut | 6 | 12 | 13 | 4 |
£19.62 |
4 |
|
|
K0634.002105 View product |
5 | M10X1 | 21 | 1,3 | 50 | 24 | 21 | with locknut | 5 | 12 | 17 | 5 |
£18.70 |
5 |
|
|
K0634.002206 View product |
6 | M12x1,5 | 25 | 1,8 | 59 | 28 | 25 | with locknut | 6 | 14 | 19 | 6 |
£21.18 |
0 |
|
|
K0634.002308 View product |
8 | M16x1,5 | 33 | 2,3 | 77 | 36 | 33 | with locknut | 15 | 35 | 24 | 8 |
£25.16 |
0 |
|
|
K0634.002410 View product |
10 | M20x1,5 | 33 | 2,8 | 83 | 40 | 33 | with locknut | 15 | 34 | 30 | 10 |
£36.76 |
0 |
|
|
K0634.002412 View product |
12 | M20x1,5 | 33 | 2,8 | 87 | 42 | 33 | with locknut | 15 | 39 | 30 | 12 |
£40.45 |
0 |
|
|
K0634.002516 View product |
16 | M24x2 | 40 | 3,2 | 106 | 50 | 40 | with locknut | 20 | 46 | 36 | 16 |
£45.93 |
0 |
|
Showing products per page
Dispatch by 20/10/25
Item Code: K0634.002903
Indexing Plunger. Thread Size M6. Thread Pitch 0.75mm. Pin Diameter 3mm. Without Locking Slot. Not Hardened. Stainless Steel.
£20.59 Excl VAT £24.71 Inc VAT
Price breaks available
Text
4 in stock
Item Code: K0634.002004
Indexing Plunger. Thread Size M8. Thread Pitch 1mm. Pin Diameter 4mm. Without Locking Slot. Hardened. Stainless Steel.
£19.62 Excl VAT £23.54 Inc VAT
Price breaks available
Text
5 in stock
Item Code: K0634.002105
Indexing Plunger. Thread Size M10. Thread Pitch 1mm. Pin Diameter 5mm. Without Locking Slot. Hardened. Stainless Steel.
£18.70 Excl VAT £22.44 Inc VAT
Price breaks available
Text
Dispatch by 20/10/25
Item Code: K0634.002206
Indexing Plunger. Thread Size M12. Thread Pitch 1.5mm. Pin Diameter 6mm. Without Locking Slot. Hardened. Stainless Steel.
£21.18 Excl VAT £25.42 Inc VAT
Price breaks available
Text
Dispatch by 20/10/25
Item Code: K0634.002308
Indexing Plunger. Thread Size M16. Thread Pitch 1.5mm. Pin Diameter 8mm. Without Locking Slot. Hardened. Stainless Steel.
£25.16 Excl VAT £30.19 Inc VAT
Price breaks available
Text
Dispatch by 20/10/25
Item Code: K0634.002410
Indexing Plunger. Thread Size M20. Thread Pitch 1.5mm. Pin Diameter 10mm. Without Locking Slot. Hardened. Stainless Steel.
£36.76 Excl VAT £44.11 Inc VAT
Price breaks available
Text
Dispatch by 20/10/25
Item Code: K0634.002412
Indexing Plunger. Thread Size M20. Thread Pitch 1.5mm. Pin Diameter 12mm. Without Locking Slot. Hardened. Stainless Steel.
£40.45 Excl VAT £48.54 Inc VAT
Price breaks available
Text
Dispatch by 20/10/25
Item Code: K0634.002516
Indexing Plunger. Thread Size M24. Thread Pitch 2mm. Pin Diameter 16mm. Without Locking Slot. Hardened. Stainless Steel.
£45.93 Excl VAT £55.12 Inc VAT
Price breaks available
Text
