Item Code: K0633.212903AJ

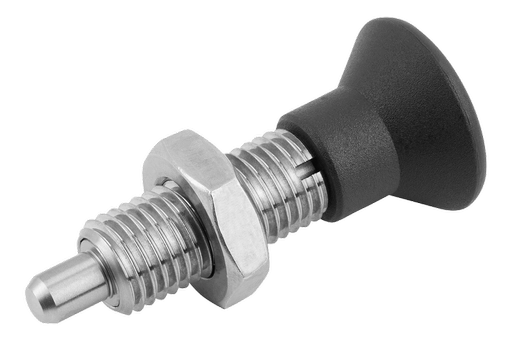

Indexing Plunger With Extended Pin Without Collar. 1/4"-28 Thread. Stainless Steel Thread. Non Lockout Version. Pin Not Hardened.

Item Code: K0633.212903AJ

Material:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Locking pin not hardened 1.4305 (AISI 303 equivalent).
Mushroom grip. thermoplastic.

Version:
Threaded sleeve bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black grey RAL 7021.

Note:
The dimensions for D1 are in inches, all other dimensions are in mm.

Quick Links

Dispatch by 28/11/25

Fx30�: 0.8

D: 3

D1: 1/4-28

D2: 14

L: 33

L1: 17

L2: 11

Lockout: No

Material: Stainless Steel

Spring force final pressure F2 approx. N: 12

Spring force initial pressure F1 approx. N: 4.5

Style: H

Surface Body finish: Not Hardened

SW: 7/16

£18.12 ea. Excl VAT £21.74 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

Fx30�	0.8
D	3
D1	1/4-28
D2	14
L	33
L1	17
L2	11
Lockout	No
Material	Stainless Steel
Spring force final pressure F2 approx. N	12
Spring force initial pressure F1 approx. N	4.5
Style	H
Surface Body finish	Not Hardened
SW	7/16
