Indexing Plunger. M24 Thread. 1.5mm Thread Pitch. 16mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Item Code: K0632.004516

Indexing Plunger. M24 Thread. 1.5mm Thread Pitch. 16mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Item Code: K0632.004516

Indexing Plunger. M24 Thread. 1.5mm Thread Pitch. 16mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Material:
- Locking pin hardened:
threaded sleeve 303 Stainless Steel.
Locking pin 1.4034.
- Locking pin not hardened:
threaded sleeve 303 Stainless Steel.
Locking pin 303 Stainless Steel. Mushroom knob 303 Stainless Steel, electrolytic-polish. Surface finish:
Natural finish.
Locking pin ground.
Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

Quick Links

Dispatch by 09/08/26

D: 16

D1: M24x2

D2: 40

Fx30°: 3.2

L: 96

L1: 32

L2: 18

L3: 28

Locknut: with locknut

Lockout: Yes

Spring force final pressure F2 approx. N: 46

Spring force initial pressure F1 approx. N: 20

Surface finish / body: Hardened

SW1: 27

Travel S: 16

£88.89 ea. Excl VAT £106.67 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£75.56	15%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

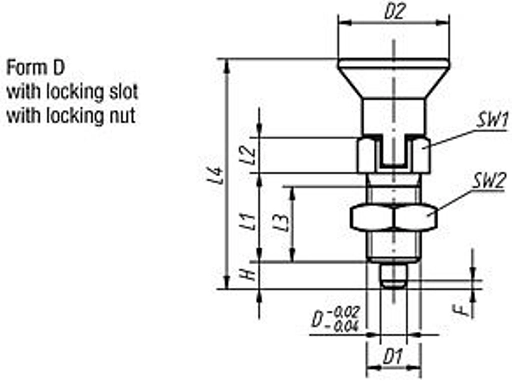

Product Dimensions

D	16
L	96
L1	32
L2	18
L3	28
D1	M24x2
D2	40
SW1	27
Locknut	with locknut
Fx30°	3.2
Lockout	Yes
Spring force final pressure F2 approx. N	46
Spring force initial pressure F1 approx. N	20
Surface finish / body	Hardened
Travel S	16
